WB30 T DRA (WZAN) - Honda Water Pump, Made in Thailand (SN: WZAN-1000001 - WZAN-1999999) IGNITION COIL Parts Diagram

Water Pump, Made in Thailand

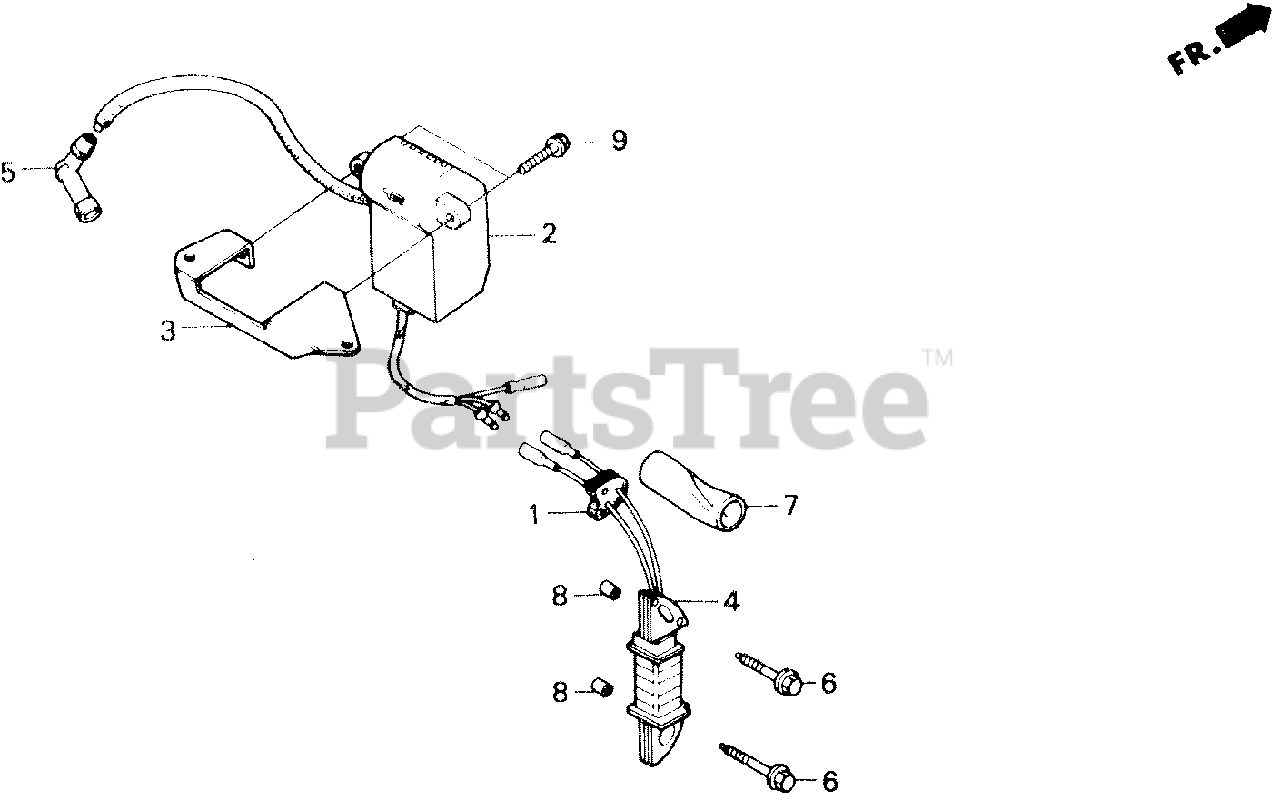

IGNITION COIL Parts Diagram

  • Title
1

Honda 30563-883-751

GROMMET, WIRE (C.D.I.)

$

$

Not available

2

Honda 30580-883-T71

MODULE, IGNITION CONTROL (CDI)

$134.99

$

Usually ships in 3-6 days

0

3

Honda 30586-883-000

STAY, IGNITION CONTROL MODULE (CDI)

$

$

Not available

4

Honda 30590-883-035

COIL ASSY., EXCITER

$55.99

$

Usually ships in 3-6 days

0

5

Honda 30600-889-003

TERMINAL ASSY., IGNITION

$22.99

$

Usually ships in 3-6 days

0

6

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

$3.99

$

In Stock, only 3 left!

0

7

Honda 91408-YA0-T00

TUBE, CORD (B)

$

$

Not available

8

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 10

0

9

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

9

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0
