WB30 T DRA (WZAN) - Honda Water Pump, Made in Thailand (SN: WZAN-1000001 - WZAN-1999999) FUEL TANK Parts Diagram

Water Pump, Made in Thailand

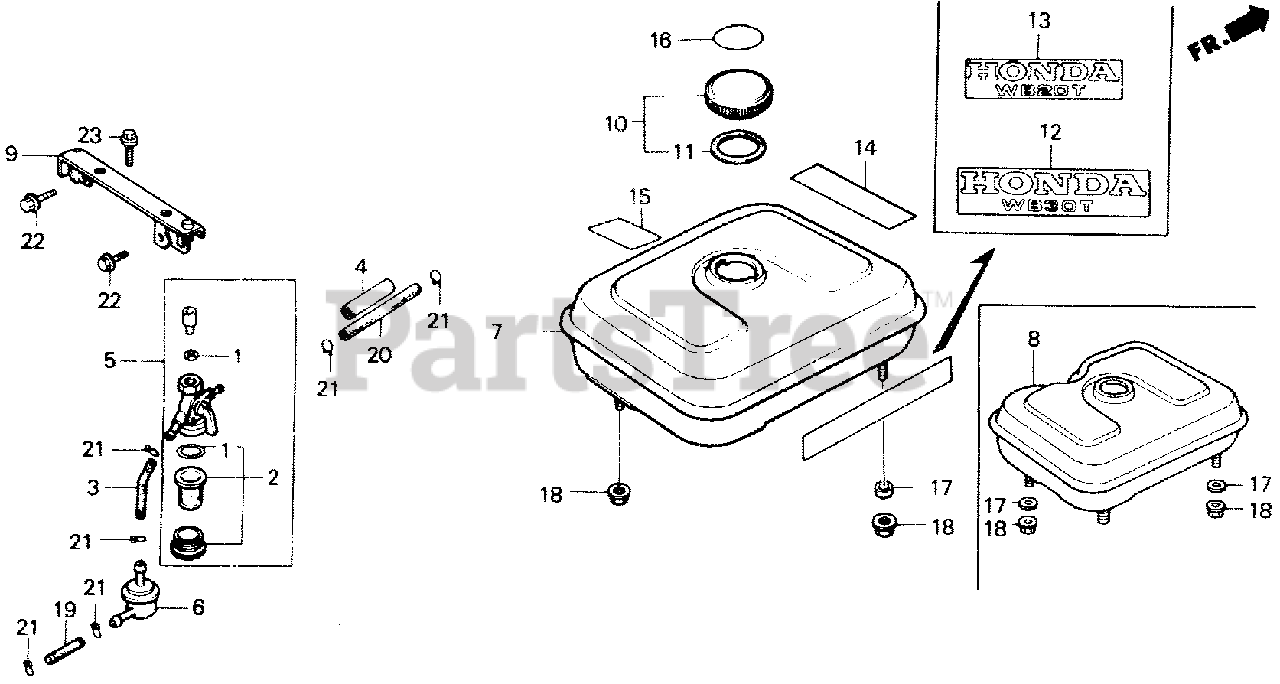

FUEL TANK Parts Diagram

  • Title

1

Honda 16080-883-005

GASKET SET, PETCOCK

$14.99

$

In Stock, only 1 left!

0

2

Honda 16081-471-831

SEE PART DETAILS - PRI; CUP, FUEL STRAINER

$32.99

$

Usually ships in 3-6 days

0

2

Honda 16081-883-015

SEE PART DETAILS - SUP; CUP SET, FUEL STRAINER
(Superseded to 16081-471-831)

$32.99

$

Usually ships in 3-6 days

0

3

Honda 16851-883-690

TUBE, FUEL

$

$

Not available

4

Honda 16854-883-T00

RUBBER, SUPPORTER

$8.49

$

Usually ships in 3-6 days

0

5

Honda 16950-883-T02

SEE PART DETAILS - SUP; PETCOCK ASSY.

$

$

Not available

5

Honda 16950-883-505

SEE PART DETAILS - PRI; PETCOCK ASSY.

$

$

Not available

6

Honda 16953-883-691

FILTER, FUEL

$

$

Not available

7

Honda 17510-883-T00ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use from Engine SN 6191521.

$

$

Not available

9

Honda 17517-883-T00

STAY, FUEL TANK

$

$

Not available

10

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

$

$

Not available

11

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

$

$

Not available

12

Honda 78140-883-U30

MARK (WB30T)

$

$

Not available

14

Honda 78141-YB3-610

MARK, CAUTION (PUMP)

$7.49

$

Usually ships in 3-6 days

0

15

Honda 78142-YB3-000

LABEL, PUMP WARNING

Note: Use from Engine SN 6191521.

$2.99

$

Usually ships in 3-6 days

0

16

Honda 87522-ZE1-810

MARK, CAUTION

$3.49

$

Usually ships in 3-6 days

0

17

Honda 91501-883-691

COLLAR, TANK SETTING

$

$

Not available

18

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

19

Honda 95001-45003-50M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (4.5X3000) (4.5X25)

$86.99

$

In Stock, only 1 left!

0

20

Honda 95001-45003-50M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (4.5X3000) (4.5X120)

$86.99

$

In Stock, only 1 left!

0

21

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, only 4 left!

0

23

Honda 95701-06028-00

BOLT, FLANGE (6X28)

$2.49

$

In Stock, only 4 left!

0
