WB20 XT4 A/A (WABT) - Honda Water Pump, Made in Thailand (SN: WABT-5000001 - WABT-9999999) CASING@IMPELLER (WB20XK2/XT2/XT3/XT4) Parts Diagram

Water Pump, Made in Thailand

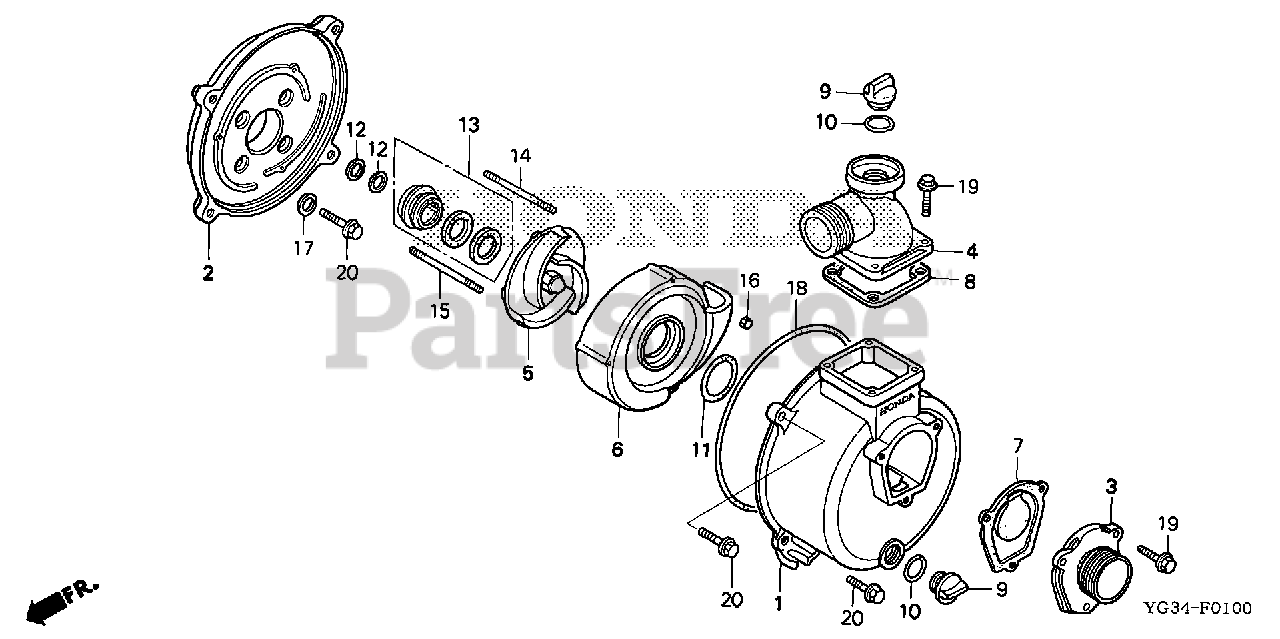

CASING@IMPELLER (WB20XK2/XT2/XT3/XT4) Parts Diagram

  • Title

1

Honda 78101-YG3-000

CASING

$56.99

$

In Stock, only 1 left!

0

2

Honda 78102-YG3-750

COVER, CASING

$33.99

$

Usually ships in 3-6 days

0

3

Honda 78103-YG3-610

INLET (NPTF)
(Superseded to 78103-YG3-305)

$21.99

$

Usually ships in 3-6 days

0

4

Honda 78104-YG3-610

OUTLET
(Superseded to 78104-YG3-305)

$

$

Not available

5

Honda 78106-YG3-750

IMPELLER

$14.99

$

In Stock, only 1 left!

0

6

Honda 78107-YG3-750

CASE, VOLUTE

$39.99

$

Usually ships in 3-6 days

0

7

Honda 78110-YB3-000

VALVE, IN.

$31.99

$

In Stock, Qty 5

0

8

Honda 78114-YB3-000

GASKET, OUTLET

$13.99

$

In Stock, only 2 left!

0

9

Honda 78117-YB3-K10

CAP, FILLER

$15.99

$

In Stock, only 1 left!

0

10

Honda 91354-YH4-610

O-RING (23.7X3.5)

$0.99

$

In Stock, only 4 left!

0

11

Honda 91352-YG4-000

O-RING (49X5.7)

$0.99

$

In Stock, Qty 10

0

12

Honda 78122-YB3-000

SHIM, ADJUSTER

$4.99

$

In Stock, only 2 left!

0

13

Honda 78130-YB4-901

SEE PART DETAILS - PRI; SEAL ASSY., MECHANICAL WATER

$108.99

$

In Stock, only 1 left!

0

14

Honda 90101-YG3-800

BOLT, STUD (6X50) (CT200)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 90101-YG3-800

BOLT, STUD (6X50) (CT200)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 90281-YB4-000

NUT, CAP (6MM)

$2.49

$

In Stock, only 3 left!

0

17

Honda 90474-333-000

WASHER, SEALING (8MM)

$5.49

$

In Stock, only 4 left!

0

18

Honda 91351-YG3-000

O-RING (217.5X3.5)

$1.49

$

In Stock, Qty 20+

0

19

Honda 95701-08025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

$0.99

$

In Stock, Qty 12

0

20

Honda 95701-08028-08

BOLT, FLANGE (8X28)

$2.99

$

In Stock, only 3 left!

0
