WB20 XT2 A (WABT) - Honda Water Pump, Made in Thailand (SN: WABT-2000001 - WABT-2999999) PISTON + CONNECTING ROD + CRANKSHAFT Parts Diagram

Water Pump, Made in Thailand

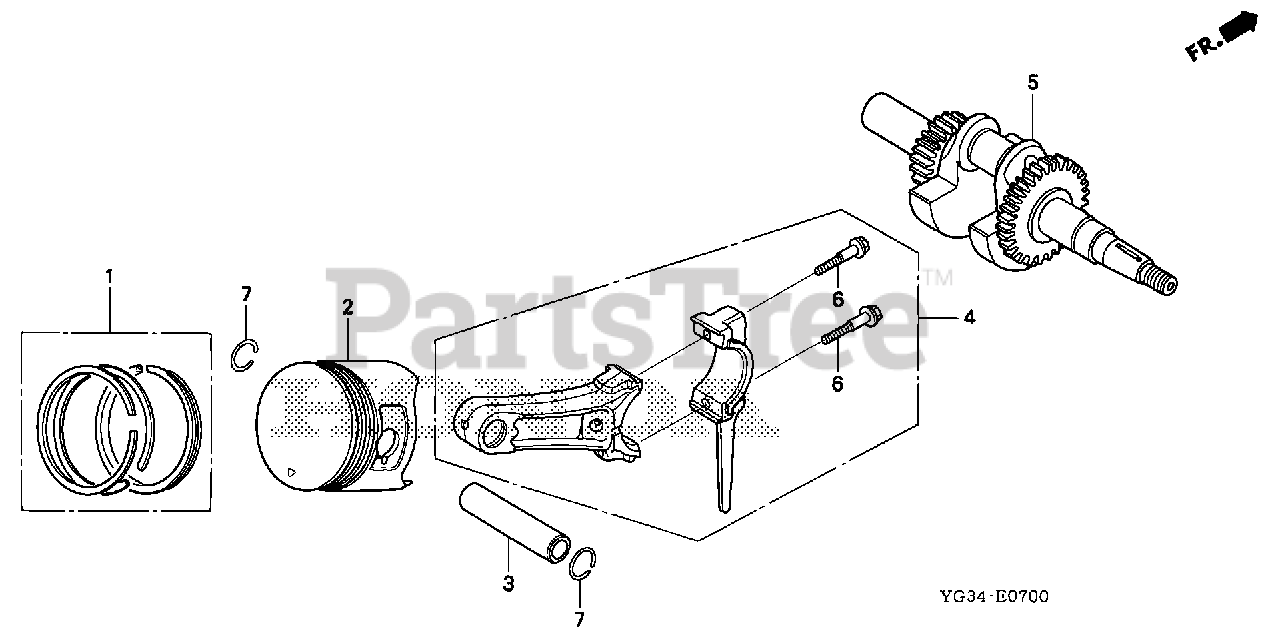

PISTON + CONNECTING ROD + CRANKSHAFT Parts Diagram

  • Title

1

Honda 13010-Z4F-004

RING SET, PISTON (STD) (TEIKOKU)

$27.99

$

In Stock, only 1 left!

0

1

Honda 13010-Z4H-003

RING SET, PISTON (STD) (RIKEN)

$35.99

$

Usually ships in 3-6 days

0

1

Honda 13011-Z4F-004

RING SET, PISTON (0.25) (TEIKOKU)

Note: (Optional).

$

$

Not available

1

Honda 13011-Z4H-003

RING SET, PISTON (0.25) (RIKEN)

Note: (Optional).

$

$

Not available

1

Honda 13012-Z4F-004

RING SET, PISTON (0.50) (TEIKOKU)

Note: (Optional).

$

$

Not available

1

Honda 13012-Z4H-003

RING SET, PISTON (0.50) (RIKEN)

Note: (Optional).

$

$

Not available

1

Honda 13013-Z4F-004

RING SET, PISTON (0.75) (TEIKOKU)

Note: (Optional).

$

$

Not available

1

Honda 13013-Z4H-003

RING SET, PISTON (0.75) (RIKEN)

Note: (Optional).

$

$

Not available

2

Honda 13101-ZH7-020

PISTON (STD)

$34.99

$

In Stock, only 1 left!

0

2

Honda 13102-ZH7-020

PISTON (0.25)

Note: (Optional).

$

$

Not available

2

Honda 13103-ZH7-020

PISTON (0.50)

Note: (Optional).

$

$

Not available

2

Honda 13104-ZH7-020

SEE PART DETAILS - PRI; PISTON (0.75)

Note: (Optional).

$

$

Not available

3

Honda 13111-ZE0-000

PIN, PISTON

$7.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE0-000

ROD ASSY., CONNECTING
(Superseded to 13200-Z4H-900)

Note: Use from Engine SN 1006122.

$38.99

$

In Stock, only 1 left!

0

4

Honda 13200-Z0S-800

ROD ASSY., CONNECTING
(Superseded to 13200-Z4H-900)

$38.99

$

In Stock, only 1 left!

0

4

Honda 13200-Z0S-305

ROD ASSY., CONNECTING (UNDER SIZE)

Note: (Optional).

$

$

Not available

5

Honda 13310-Z0S-850

CRANKSHAFT

$91.99

$

Usually ships in 3-6 days

0

6

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

$3.99

$

In Stock, only 2 left!

0

7

Honda 90551-ZE0-000

CLIP, PISTON PIN (13MM)

$1.99

$

In Stock, Qty 20+

0
