WB20 XT2 A (WABT) - Honda Water Pump, Made in Thailand (SN: WABT-2000001 - WABT-2999999) FUEL TANK Parts Diagram

Water Pump, Made in Thailand

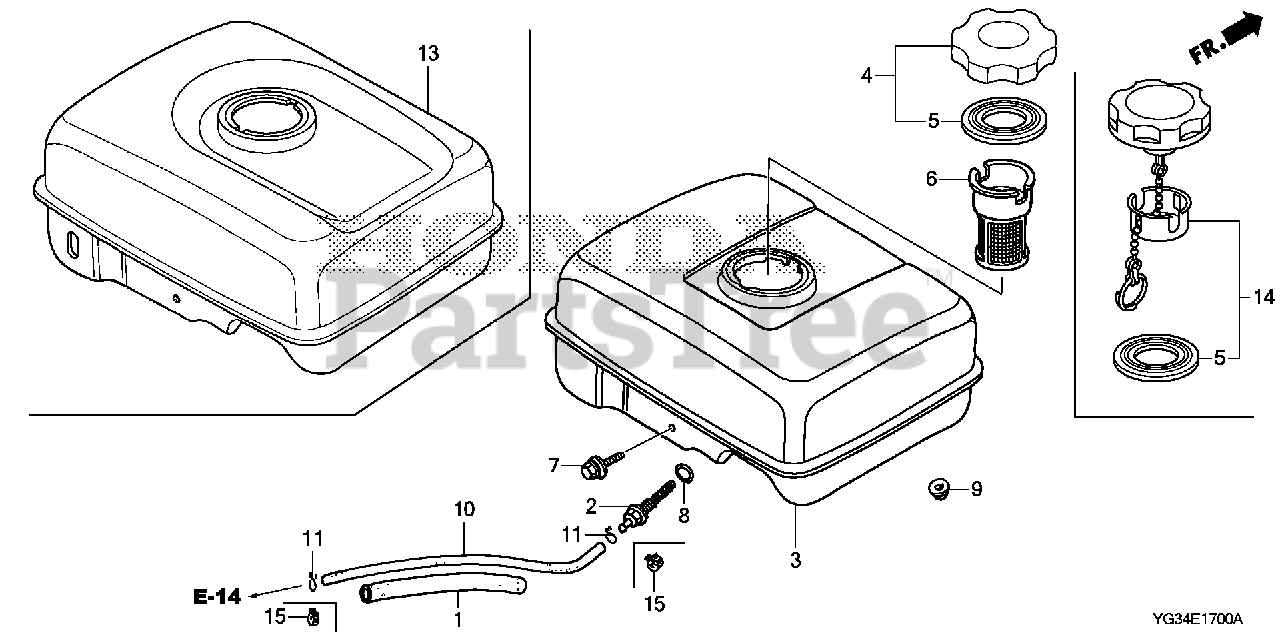

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

RUBBER, SUPPORTER (107MM)

$5.49

$

In Stock, Qty 12

0

2

Honda 16955-ZE1-010

JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE0-020ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use from Engine SN 1006122.

$51.99

$

In Stock, only 1 left!

0

5

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (39X62X3) (RADICON)

$0.99

$

In Stock, Qty 8

0

6

Honda 17672-ZE2-W01

FILTER, FUEL

Note: (Optional).

$13.99

$

In Stock, only 3 left!

0

7

Honda 90004-ZH7-003

BOLT, FLANGE (6X29)

$1.49

$

In Stock, Qty 7

0

8

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 20+

0

8

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

9

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

10

Honda 91424-Z4F-802

SEE PART DETAILS - PRI; TUBE, FUEL (4.5X140) (FKM)
(Superseded to 91424-Z4F-804)

$8.49

$

In Stock, only 1 left!

0

13

Honda 17510-Z4H-000ZA

TANK, FUEL *NH31* (GAUGELESS) (MCKINLEY WHITE)

$57.99

$

In Stock, only 1 left!

0

14

Honda 17620-Z4H-030

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

$79.99

$

Usually ships in 3-6 days

0

14

Honda 17620-Z4H-900

SEE PART DETAILS - PRI; CAP, FUEL FILLER

$79.99

$

Usually ships in 3-6 days

0

15

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, only 4 left!

0
