WB20 XT2 A (WABT) - Honda Water Pump, Made in Thailand (SN: WABT-2000001 - WABT-2999999) CRANKCASE COVER Parts Diagram

Water Pump, Made in Thailand

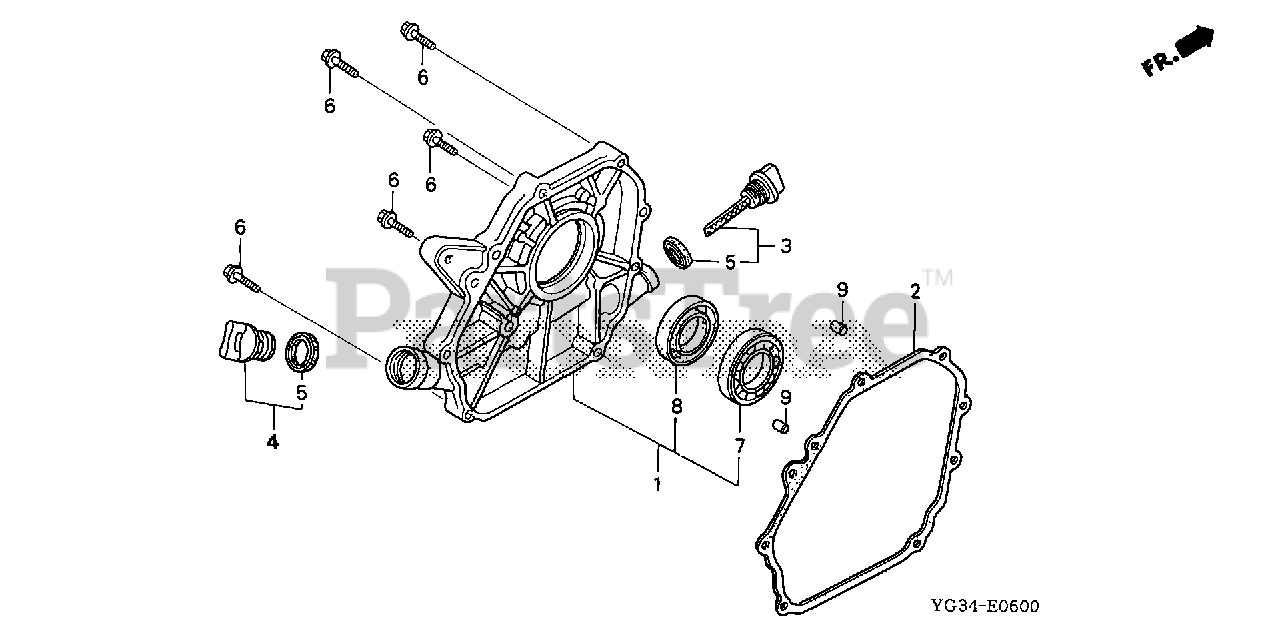

CRANKCASE COVER Parts Diagram

  • Title
1

Honda 11300-ZE0-634

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

$102.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZH7-800

GASKET, CASE COVER

$9.49

$

In Stock, Qty 12

0

3

Honda 15600-Z0T-810

CAP ASSY., OIL FILLER (GAUGE)(GRAY)

$1.49

$

In Stock, Qty 7

0

4

Honda 15600-Z0T-820

CAP ASSY., OIL FILLER (BLACK)

$1.49

$

In Stock, Qty 5

0

5

Honda 15625-Z0T-800

GASKET, OIL FILLER CAP

$4.99

$

In Stock, Qty 20+

0

6

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

$3.99

$

In Stock, Qty 8

0

7

Honda 91001-878-003

BEARING, RADIAL BALL

$37.99

$

In Stock, only 1 left!

0

8

Honda 91203-ZE0-013

OIL SEAL (22X41X6)

$10.99

$

In Stock, Qty 12

0

9

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0
