WB20 XK1 C1 (GC01) - Honda Water Pump, Made in Japan (SN: GC01-2000001 - GC01-8669999) FUEL TANK Parts Diagram

Water Pump, Made in Japan

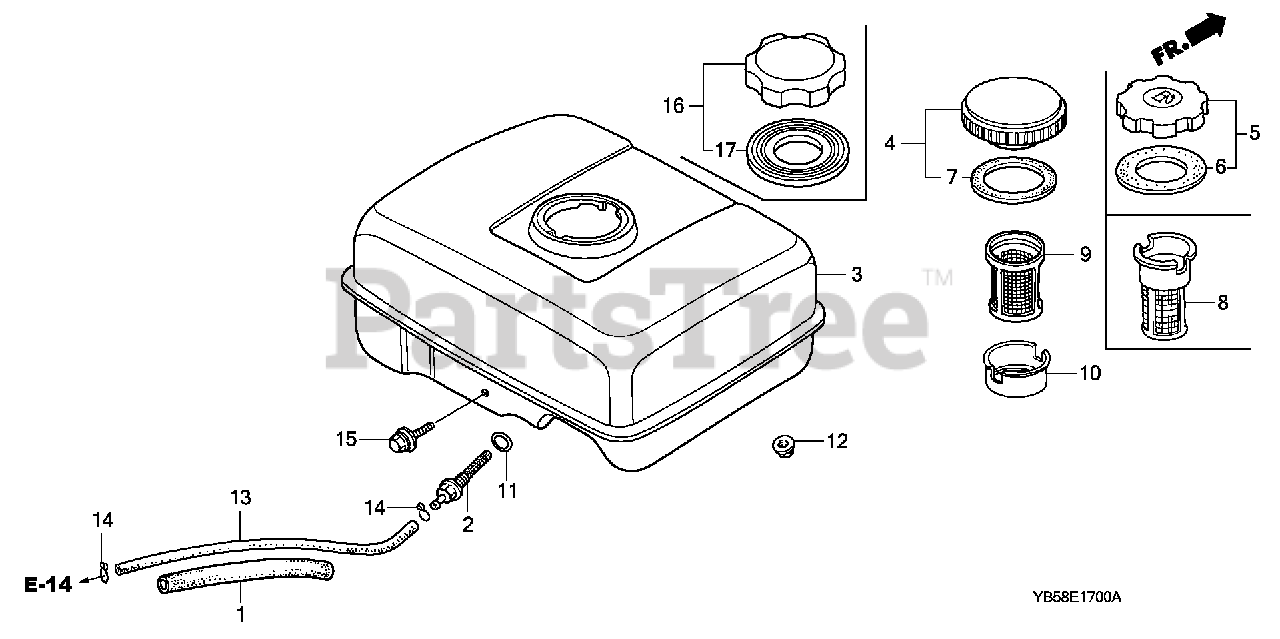

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

$5.49

$

In Stock, Qty 12

0

2

Honda 16955-ZE1-000

SEE PART DETAILS - SUP; JOINT, FUEL TANK (NOT AVAILABLE)
(Superseded to 16955-ZE1-010)

$8.99

$

In Stock, Qty 20+

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE0-020ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

$51.99

$

In Stock, only 1 left!

0

4

Honda 17620-ZE2-W00

SEE PART DETAILS - SUP; CAP, FUEL FILLER (CHROME PLATED)

Note: Use up to Engine SN 2421922.

$

$

Not available

4

Honda 17620-402-010

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-402-020)

Note: Use up to Engine SN 2421922.

$21.99

$

In Stock, only 1 left!

0

5

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 2421923 to 3053130.

$

$

Not available

5

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 3053131.

$

$

Not available

6

Honda 17631-ZH7-003

SEE PART DETAILS - SUP; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-003)

Note: Use from Engine SN 2421923.

$

$

Not available

6

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

Note: Use from Engine SN 2421923.

$

$

Not available

7

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

Note: Use up to Engine SN 2421922.

$

$

Not available

8

Honda 17672-ZE2-W01

FILTER, FUEL

Note: (Optional). Use from Engine SN 2328483.

$13.99

$

In Stock, only 3 left!

0

9

Honda 17672-880-000

FILTER, FUEL

Note: (Optional). Use up to Engine SN 2328482.

$14.99

$

Usually ships in 3-6 days

0

10

Honda 17673-893-000

HOLDER, FUEL FILTER

Note: (Optional). Use up to Engine SN 2328482.

$15.99

$

In Stock, only 2 left!

0

11

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI)

$3.99

$

In Stock, Qty 20+

0

11

Honda 91353-671-004

SEE PART DETAILS - SUP; O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

12

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

13

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X140)

$54.99

$

In Stock, only 1 left!

0

14

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

15

Honda 95701-06025-00

BOLT, FLANGE (6X25)

$2.49

$

In Stock, Qty 8

0
