WB20 XK1 AC1 (GC01) - Honda Water Pump, Made in Japan (SN: GC01-2000001 - GC01-3553150) FRAME BED Parts Diagram
Water Pump, Made in Japan

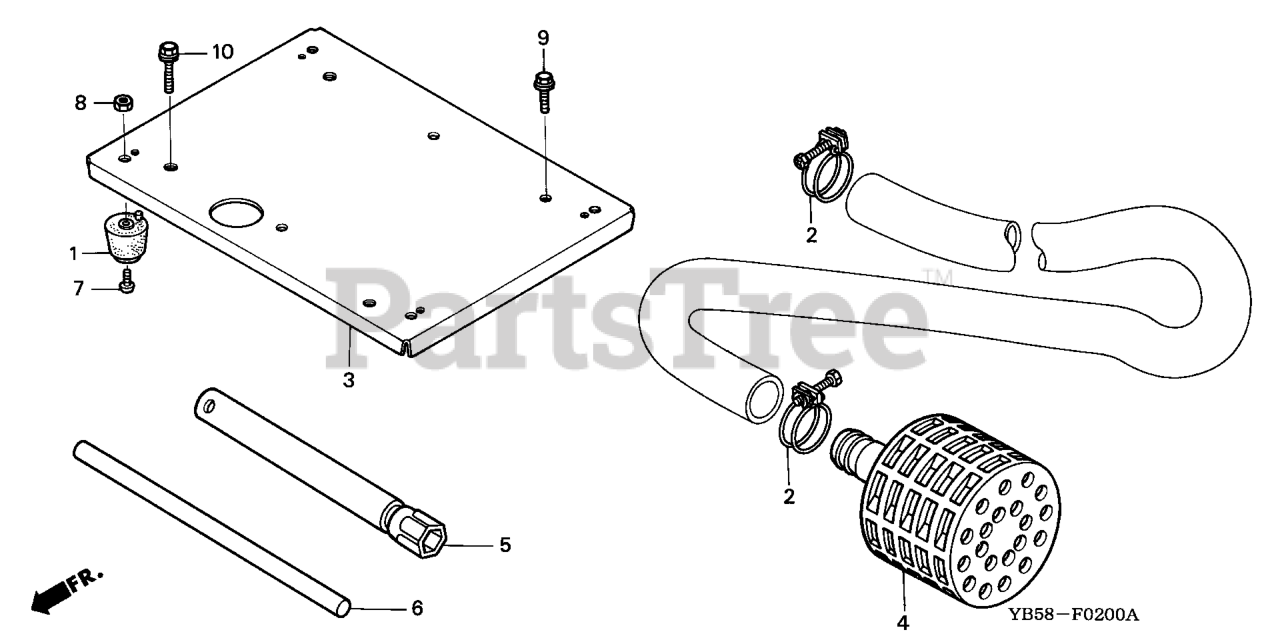

FRAME BED Parts Diagram
Honda 60407-812-000
SEE PART DETAILS - PRI; RUBBER (LOWER) Use up to Frame SN 1382074.
(Superseded to 60407-812-001)
$20.99
$
Usually ships in 3-6 days
Honda 78139-YB3-000
BAND, HOSE
$14.99
$
Usually ships in 3-6 days
Honda 78203-YB3-000
BED, FRAME
$
$
Not available
Honda 78325-YB3-010
SEE PART DETAILS - PRI; STRAINER Use from Frame SN 1582886.
$54.99
$
Usually ships in 3-6 days
Honda 89218-ZE1-000
WRENCH, SPARK PLUG (Honda Code 1431048).
$21.99
$
Usually ships in 3-6 days
Honda 89219-805-000
HANDLE, BOX WRENCH (NOT AVAILABLE) (Honda Code 0066654).
$3.99
$
Usually ships in 3-6 days
Honda 93500-06010-0A
SCREW, PAN (6X10)
$1.49
$
In Stock, only 4 left!
Honda 94001-06000-0S
SEE PART DETAILS - SUP; NUT, HEX. (6MM) (Honda Code 0156067).
(Superseded to 94001-06200-0S)
$1.99
$
In Stock, Qty 20+
Honda 94001-06200-0S
SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 2043255).
$1.99
$
In Stock, Qty 20+
Honda 95701-08025-00
SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).
$2.49
$
In Stock, only 3 left!
Honda 95701-08028-00
SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387).
$1.99
$
In Stock, Qty 5
