WB20 XK1 AC1 (GC01) - Honda Water Pump, Made in Japan (SN: GC01-2000001 - GC01-3553150) CONTROL Parts Diagram

Water Pump, Made in Japan

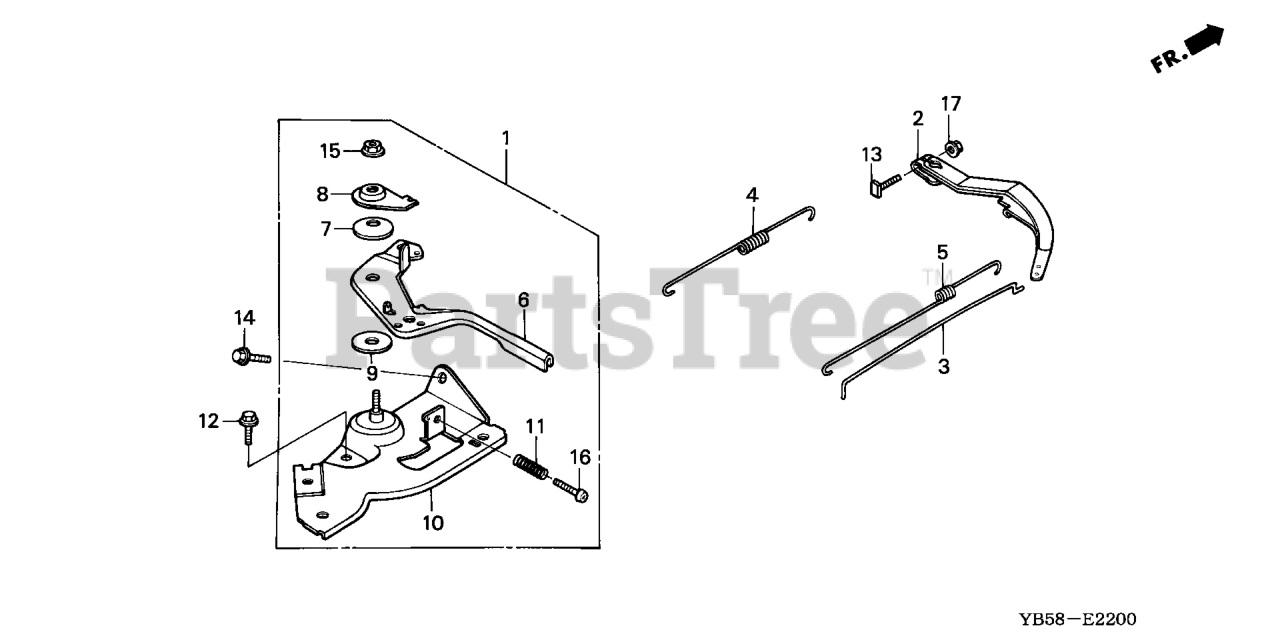

CONTROL Parts Diagram

  • Title

1

Honda 16500-ZH7-000

SEE PART DETAILS - PRI; CONTROL ASSY. (Honda Code 3694890).

$36.99

$

Usually ships in 3-6 days

0

2

Honda 16551-ZE0-010

SEE PART DETAILS - PRI; ARM, GOVERNOR (Honda Code 1950609).

$15.99

$

Usually ships in 3-6 days

0

3

Honda 16555-ZE0-000

ROD, GOVERNOR (Honda Code 1427301).

$6.49

$

Usually ships in 3-6 days

0

4

Honda 16561-ZE0-030

SEE PART DETAILS - PRI; SPRING, GOVERNOR

$3.99

$

In Stock, Qty 10

0

5

Honda 16562-ZE0-020

SPRING, THROTTLE RETURN (Honda Code 1961408).

$4.49

$

In Stock, Qty 20+

0

6

Honda 16571-ZH7-000

SEE PART DETAILS - PRI; LEVER, CONTROL (Honda Code 3694924).

$14.99

$

In Stock, only 1 left!

0

7

Honda 16574-ZE1-000

SPRING, LEVER (Honda Code 1427384).

$4.49

$

In Stock, only 2 left!

0

8

Honda 16575-ZH8-000

SEE PART DETAILS - PRI; WASHER, CONTROL LEVER (Honda Code 3683604).

$5.99

$

Usually ships in 3-6 days

0

9

Honda 16578-ZE1-000

SPACER, CONTROL LEVER (Honda Code 1427400).

$5.49

$

In Stock, only 4 left!

0

10

Honda 16580-ZH7-000

BASE, CONTROL (Honda Code 3694932).

$20.99

$

Usually ships in 3-6 days

0

11

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$4.99

$

In Stock, Qty 7

0

12

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

13

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

14

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200) (Honda Code 0671552).

$2.99

$

In Stock, only 2 left!

0

15

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) (Honda Code 1410182).

$4.49

$

In Stock, Qty 20+

0

16

Honda 93500-05025-0H

SCREW, PAN (5X25) (Honda Code 0374702).

Note: Use from Engine SN 2812717.

$0.99

$

In Stock, only 4 left!

0

16

Honda 93500-05028-0A

SCREW, PAN (5X28) (Honda Code 0171819).

Note: Use up to Engine SN 2812716.

$1.49

$

In Stock, Qty 5

0

17

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
