WB20 X C (GX110) - Honda Water Pump, Made in Japan (SN: GX110-1000001 - GX110-9999999) WB20X FRAME BED + TOOLS Parts Diagram

Water Pump, Made in Japan

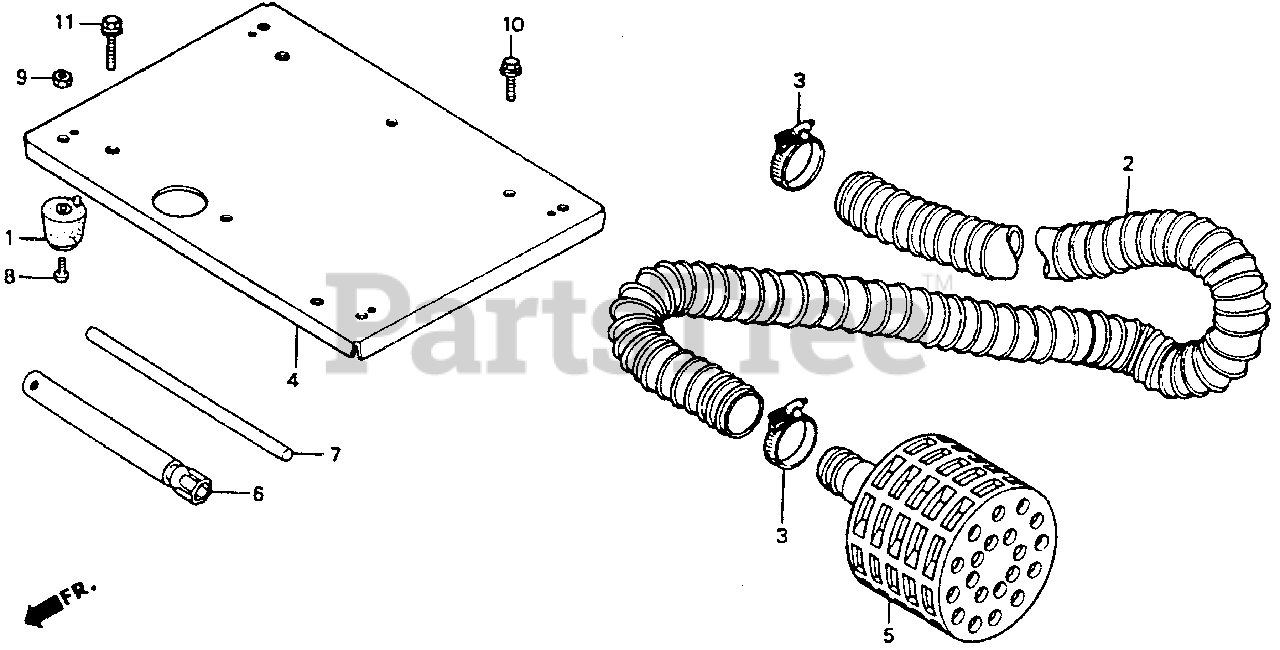

WB20X FRAME BED + TOOLS Parts Diagram

  • Title

1

Honda 60407-812-000

RUBBER (LOWER)
(Superseded to 60407-812-001)

$20.99

$

Usually ships in 3-6 days

0

2

Honda 78111-YB3-000

SEE PART DETAILS - SUP; HOSE, SUCTION
(Superseded to 78151-YB7-711)

$368.99

$

Usually ships in 3-6 days

0

3

Honda 78139-YB3-000

BAND, HOSE

$14.99

$

Usually ships in 3-6 days

0

4

Honda 78203-YB3-000

BED, FRAME

$

$

Not available

5

Honda 78325-YB3-000

SEE PART DETAILS - SUP; STRAINER
(Superseded to 78325-YB3-010)

Note: Use up to Frame SN 1582885.

$54.99

$

Usually ships in 3-6 days

0

5

Honda 78325-YB3-010

SEE PART DETAILS - PRI; STRAINER

Note: Use up to Frame SN 1582885.

$54.99

$

Usually ships in 3-6 days

0

5

Honda 78325-YB3-010

SEE PART DETAILS - PRI; STRAINER Use from Frame SN 1582886.

$54.99

$

Usually ships in 3-6 days

0

6

Honda 89218-ZE1-000

WRENCH, SPARK PLUG

$21.99

$

Usually ships in 3-6 days

0

7

Honda 89219-805-000

HANDLE, BOX WRENCH

$3.99

$

Usually ships in 3-6 days

0

8

Honda 93500-06010

SCREW, PAN (6X10)
(Superseded to 93500-06010-0A)

$1.49

$

In Stock, only 4 left!

0

9

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

9

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

10

Honda 95700-08020-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X20)
(Superseded to 95701-08020-00)

Note: Use up to Frame SN 1235433.

$2.49

$

In Stock, only 3 left!

0

10

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

Note: Use up to Frame SN 1235433.

$2.49

$

In Stock, only 3 left!

0

10

Honda 95701-08025-00

BOLT, FLANGE (8X25)

Note: Use from Frame SN 1235434.

$2.49

$

In Stock, only 3 left!

0

11

Honda 95701-08028-00

BOLT, FLANGE (8X28)

$1.99

$

In Stock, Qty 5

0
