WB15 C/B (G100) - Honda Water Pump, Made in Japan (SN: G100-3000001 - G100-9999999) WB15 CASING + IMPELLER Parts Diagram

Water Pump, Made in Japan

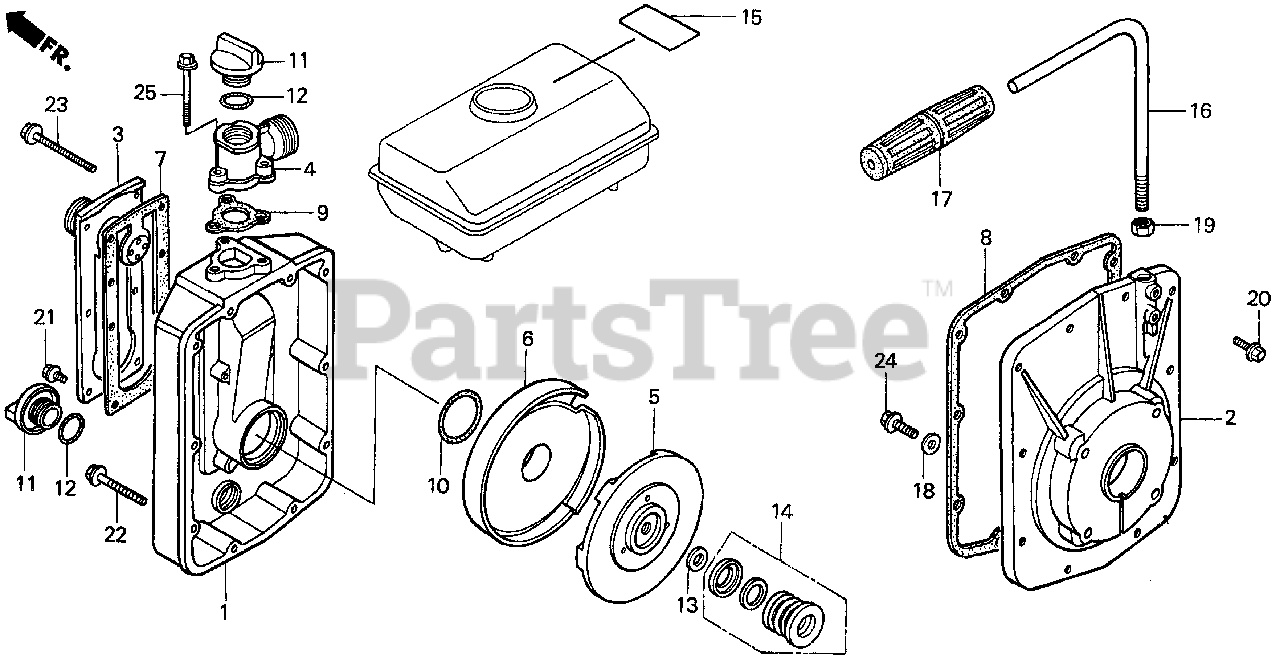

WB15 CASING + IMPELLER Parts Diagram

  • Title

1

Honda 78101-YB0-712

CASING

$

$

Not available

2

Honda 78102-YB0-711

PLATE, END

$

$

Not available

3

Honda 78103-YB0-761

SEE PART DETAILS - PRI; PLATE, SUCTION (NPTF)

$

$

Not available

4

Honda 78104-YB0-762

OUTLET (NPTF)

$

$

Not available

5

Honda 78106-YB0-611

IMPELLER

$

$

Not available

6

Honda 78107-YB0-611

CASE, VOLUTE

$

$

Not available

7

Honda 78110-YB0-003

GASKET, SUCTION
(Superseded to 78153-YB0-840)

$2.49

$

In Stock, only 4 left!

0

8

Honda 78112-YB0-003

GASKET, END PLATE
(Superseded to 78112-YB0-004)

$6.99

$

In Stock, Qty 11

0

9

Honda 78114-YB0-710

GASKET, OUTLET

$

$

Not available

10

Honda 78115-YB0-003

RING A, SEAL
(Superseded to 78115-YB0-004)

$0.99

$

In Stock, Qty 8

0

11

Honda 78117-YB7-020

SEE PART DETAILS - PRI; CAP, FILLER

$13.99

$

In Stock, only 1 left!

0

12

Honda 78118-YB0-003

RING, SEAL (B)
(Superseded to 78118-YB0-004)

$10.99

$

Usually ships in 3-6 days

0

13

Honda 78122-YB0-003

SHIM, ADJUSTER
(Superseded to 78122-YB0-004)

$0.99

$

In Stock, Qty 7

0

14

Honda 78130-YB0-003

SEE PART DETAILS - SUP; SEAL ASSY., MECHANICAL
(Superseded to 78130-YF2-003)

$34.99

$

Usually ships in 3-6 days

0

14

Honda 78130-YF2-003

SEE PART DETAILS - PRI; SEAL ASSY., MECHANICAL
(Superseded to 78130-YH5-611)

$34.99

$

Usually ships in 3-6 days

0

16

Honda 78206-YB0-710

HANDLE

$

$

Not available

17

Honda 78207-YB0-710

GRIP, HANDLE

$

$

Not available

18

Honda 90474-333-000

WASHER (8MM)

$5.49

$

In Stock, only 4 left!

0

19

Honda 94001-12000-0S

NUT, HEX. (12MM)

$2.49

$

In Stock, only 2 left!

0

20

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

20

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 19

0

21

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 95701-06045-07

BOLT, FLANGE (6X45)

$2.99

$

In Stock, Qty 10

0

23

Honda 95701-06065-00

BOLT, FLANGE (6X65)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, Qty 5

0

25

Honda 95700-06025-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X25)

$

$

Currently unavailable

25

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.49

$

In Stock, Qty 8

0
