WB15 C/A (G100) - Honda Water Pump, Made in Japan (SN: G100-2000001 - G100-2424874) FUEL TANK Parts Diagram

Water Pump, Made in Japan

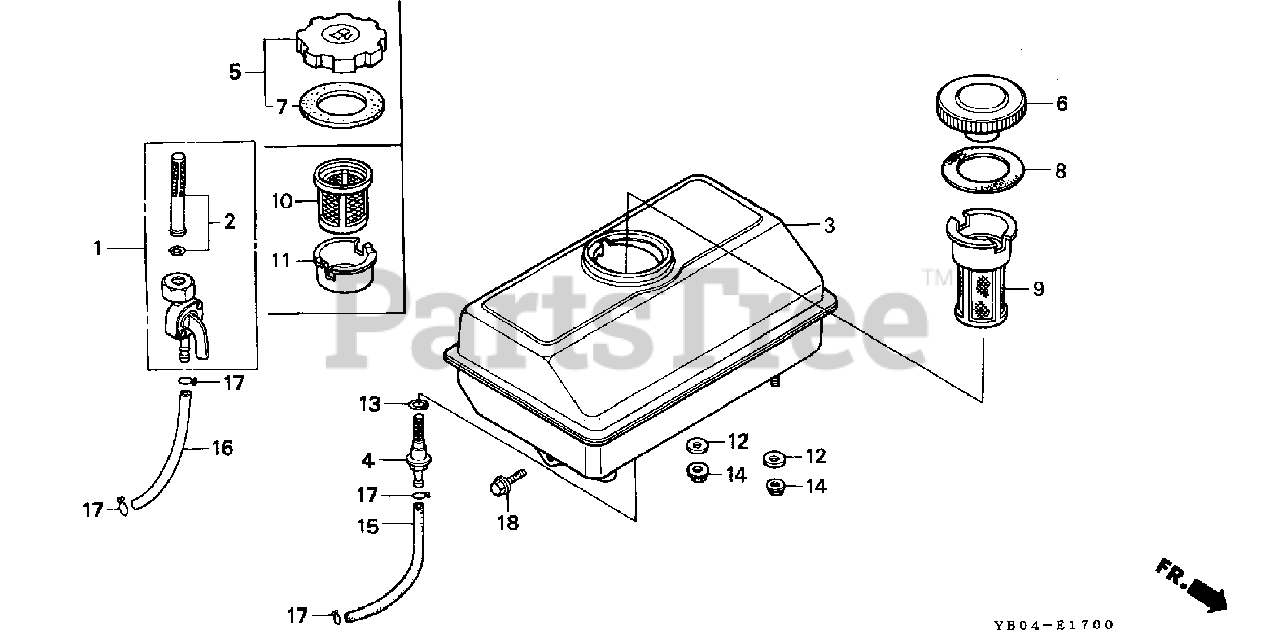

FUEL TANK Parts Diagram

  • Title

3

Honda 17500-ZG0-010ZA

SEE PART DETAILS - PRI; TANK ASSY., FUEL *NH31* (MCKINLEY WHITE)

Note: Use up to Engine SN 2276480.

$

$

Currently unavailable

3

Honda 17510-ZG0-000

SEE PART DETAILS - SUP; TANK, FUEL

Note: Use up to Engine SN 2276480.

$

$

Currently unavailable

3

Honda 17510-ZG0-020ZB

TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use from Engine SN 2276481.

$

$

Not available

4

Honda 16955-ZE1-000

SEE PART DETAILS - SUP; JOINT, FUEL TANK
(Superseded to 16955-ZE1-010)

Note: Use from Engine SN 2415756.

$8.99

$

In Stock, Qty 9

0

4

Honda 17520-ZG0-000

JOINT, FUEL TANK

Note: Use up to Engine SN 2415755.

$

$

Not available

6

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

$

$

Not available

8

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-013)

$

$

Not available

9

Honda 17672-ZE2-W01

SEE PART DETAILS - PRI; FILTER, FUEL

Note: Use from Engine SN 2415506.

$12.99

$

In Stock, only 1 left!

0

10

Honda 17672-880-000

FILTER, FUEL

Note: Use up to Engine SN 2415505.

$13.99

$

Usually ships in 3-6 days

0

11

Honda 17673-893-000

HOLDER, FUEL FILTER

Note: Use up to Engine SN 2415505.

$14.99

$

In Stock, only 1 left!

0

13

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 13

0

14

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

15

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X55)

$54.99

$

In Stock, only 2 left!

0

17

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0

18

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 5

0
