WB 53 SE (966978202) - Husqvarna 53" Walk-Behind Mower (2012-06) ENGINE Parts Diagram

53" Walk-Behind Mower

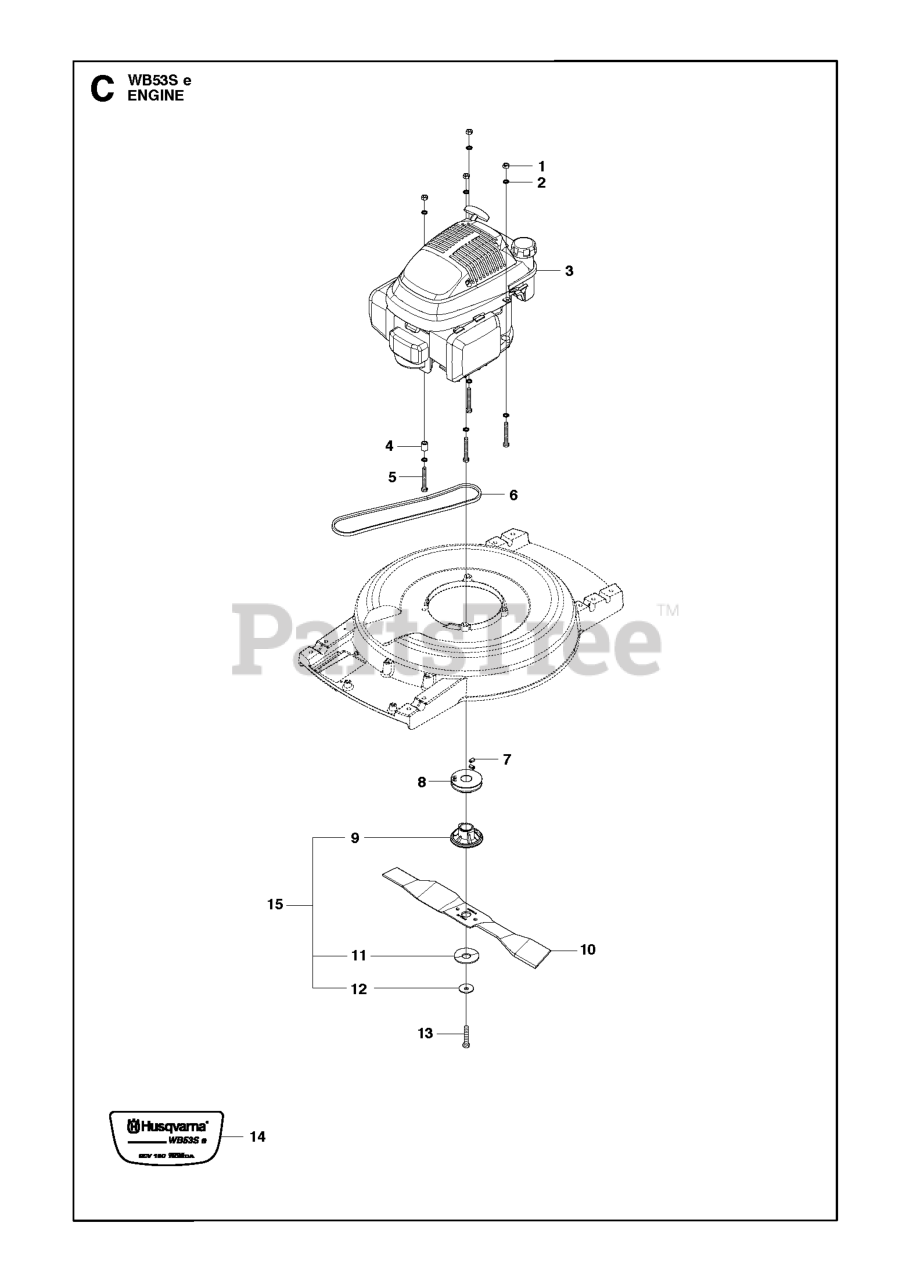

ENGINE Parts Diagram

  • Title

1

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

12

Husqvarna 295688501

WASHER

$

$

Not available

2

Husqvarna 735216401

NEEDS DESCRIPTION

$0.35

$

Usually ships in 3-10 days

0

15

Husqvarna 531009273

NEEDS DESCRIPTION

$

$

Currently unavailable

11

Husqvarna 295674401

SPRING M53 / M48

$

$

Not available

6

Husqvarna 589563601

BELT

Note: Kit: 580 86 28-01 (Belt with shell)

$27.99

$

Usually ships in 3-10 days

0

13

Husqvarna 295674602

BOLT M53 / M48

$

$

Not available

9

Husqvarna 295688201

BLADE SUPPORT

$

$

Not available

5

Husqvarna 725246351

SCREW

$5.99

$

In Stock, only 3 left!

0

14

Husqvarna 577670303

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 577611101

NEEDS DESCRIPTION

$

$

Currently unavailable

4

Husqvarna 295660601

SPACER M53 / M48

$

$

Not available

10

Husqvarna 295673210

NEEDS DESCRIPTION

Note: Kit: 531 00 92-54 (Blade with box)

$

$

Currently unavailable

7

Husqvarna 505390301

NEEDS DESCRIPTION

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 0

NEEDS DESCRIPTION

Note: Honda GCV 160E - A3E9

$

$

Currently unavailable
