Walkabout 48 - Dixon 48" Walk-Behind Mower, Belt-Drive, Kohler (2007) 48" FRONT DECK ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Belt-Drive, Kohler

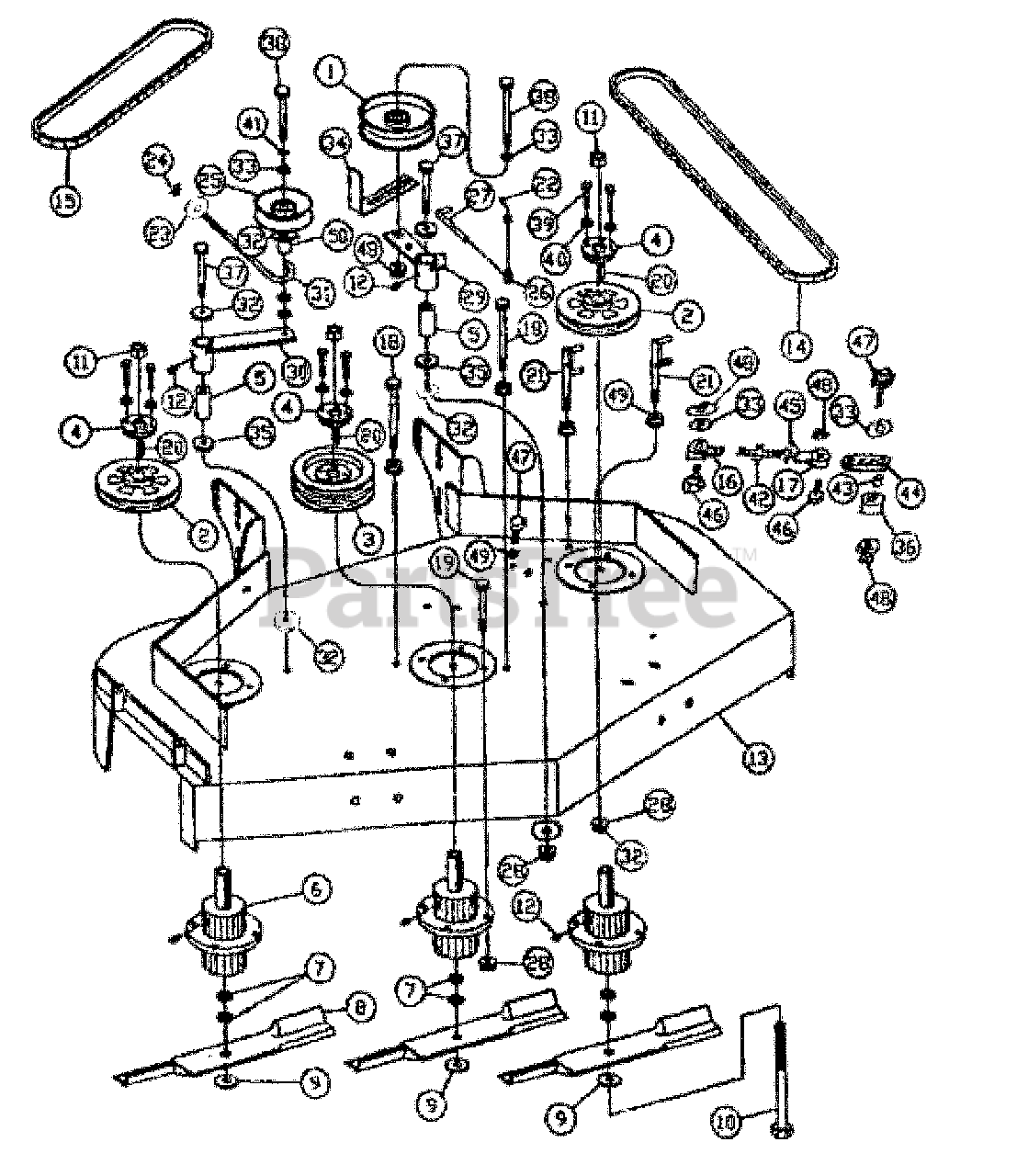

48" FRONT DECK ASSEMBLY Parts Diagram

  • Title

1

11513

100-013 IDLER PULLEY

$

$

Not available

2

11525

100-025 PULLEY SINGLE

$

$

Not available

3

11644

148-004 PULLEY DBL

$

$

Not available

4

11526

100-026 H-BUSHING

$

$

Not available

5

11524

100-024 PIVOT HUB

$

$

Not available

6

11521

100-021 CUTTING HOUSE AS

$

$

Not available

7

11522

100-022 SPACER 6

$

$

Not available

8

11645

BLD 48` - WALKABOUT

$

$

Not available

9

11523

100-023 WASHER

$

$

Not available

10

11723

200-023 BOLT M16`1.5`245

$

$

Not available

11

11717

200-017 NEX NUT M16`1.5

$

$

Not available

12

11726

GREASE FTG (10 PACK) 200-026

$

$

Not available

13

11642

148-002 BLUE DECK 48

$

$

Not available

14

11646

148-006 BELT 48`

$

$

Not available

15

11647

148-007 BELT BLD TO BLD

$

$

Not available

16

11528

$

$

Not available

17

11527

100-027 ROD END RH

$

$

Not available

18

11728

200-028 NUT FLANGE M8

$

$

Not available

19

11718

200-018 HEX BOLT M10-35

$

$

Not available

20

11514

100-014 KEY 6.35`6`50

$

$

Not available

21

11516

$

$

Not available

22

11714

200-014 COTTER PIN 2`20

$

$

Not available

23

11729

200-028 NUT FLANGE M8

$

$

Not available

24

11730

$

$

Not available

25

11648

148-008 IDLER PULLEY

$

$

Not available

26

11518

100-018 SWIVEL

$

$

Not available

27

11517

$

$

Not available

28

11706

200-006 NYLON NUT M10

$

$

Not available

29

11520

100-020 IDLER ARM WLDT.

$

$

Not available

30

11649

148-009 DECK IDLER ARM

$

$

Not available

31

11650

148-009 ROD BELT TENSION

$

$

Not available

32

11519

100-019 WASHER

$

$

Not available

33

3057

WASHER, 3/8 STD FLAT

$

$

Not available

34

11533

100-033 BELT GUIDE

$

$

Not available

35

11515

100-015 WASHER 2`26ID

$

$

Not available

36

11531

100-031 SPACER 12

$

$

Not available

37

Dixon 3240

M10X1.5X70 HHB GR8.8

$

$

Not available

38

11722

200-022 HEX BOLT M10`65

$

$

Not available

39

7372

M8X1.25X30MM HHB

$

$

Not available

40

3019

5/16HELICAL L-WASHER

$

$

Not available

41

3065

3/8HELICAL L-WASHER

$

$

Not available

42

11530

100-030 TURN BUCKLE ROD

$

$

Not available

43

11532

100-032 LINK BUSHING

$

$

Not available

44

11529

100-029 LINK IDLER ARM

$

$

Not available

45

11727

$

$

Not available

46

11718

200-018 HEX BOLT M10-35

$

$

Not available

47

11719

200-019 HEX BOLT M10-40

$

$

Not available

48

11706

200-006 NYLON NUT M10

$

$

Not available

49

11716

200-016 NUT FLANGE M10

$

$

Not available

50

11651

148-011 SPACER 16

$

$

Not available
