Walkabout 36 - Dixon 36" Walk-Behind Mower, Belt-Drive, Kohler (2007) 36" & 48" TRACTION WHEEL ASSEMBLY Parts Diagram

36" Walk-Behind Mower, Belt-Drive, Kohler

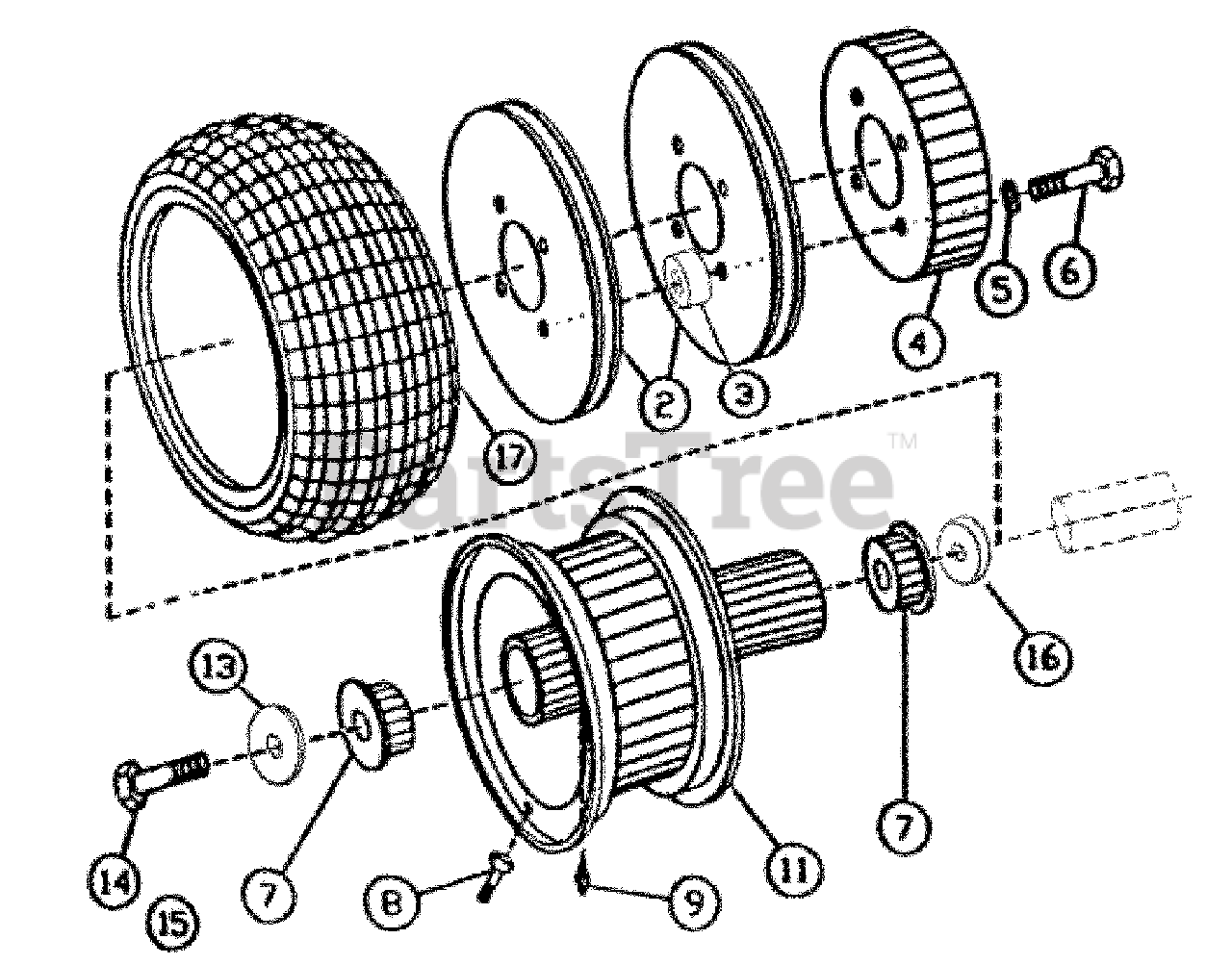

36" & 48" TRACTION WHEEL ASSEMBLY Parts Diagram

  • Title

2

11610

100-110 PULLEY TRACTION

$

$

Not available

3

11611

100-111 SPACER 11.5

$

$

Not available

4

11612

100-112 BRAKE HUB

$

$

Not available

5

3019

5/16HELICAL L-WASHER

$

$

Not available

6

11760

200-060 BOLT M8`40

$

$

Not available

7

11761

200-061 BRG 6005 2RS

$

$

Not available

8

11613

100-113 VALVE

$

$

Not available

9

11726

GREASE FTG (10 PACK) 200-026

$

$

Not available

11

11653

148-013 RIM 36`&48`

$

$

Not available

13

11519

100-019 WASHER

$

$

Not available

14

11619

100-119 BOLT M10 LEFT

$

$

Not available

15

12808

M10X1.5X25MM HHB GR8.8

$

$

Not available

16

11599

100-099 SPACER 6.5

$

$

Not available

17

11652

148-012 TIRE 13`6.5-6

$

$

Not available

11655

148-015 WHEEL ASM

$

$

Not available
