WA30 X C (WA30X) - Honda Water Pump, Made in Japan (SN: WA30X-1000001 - WA30X-9999999) WA30X CASING + IMPELLER Parts Diagram

Water Pump, Made in Japan

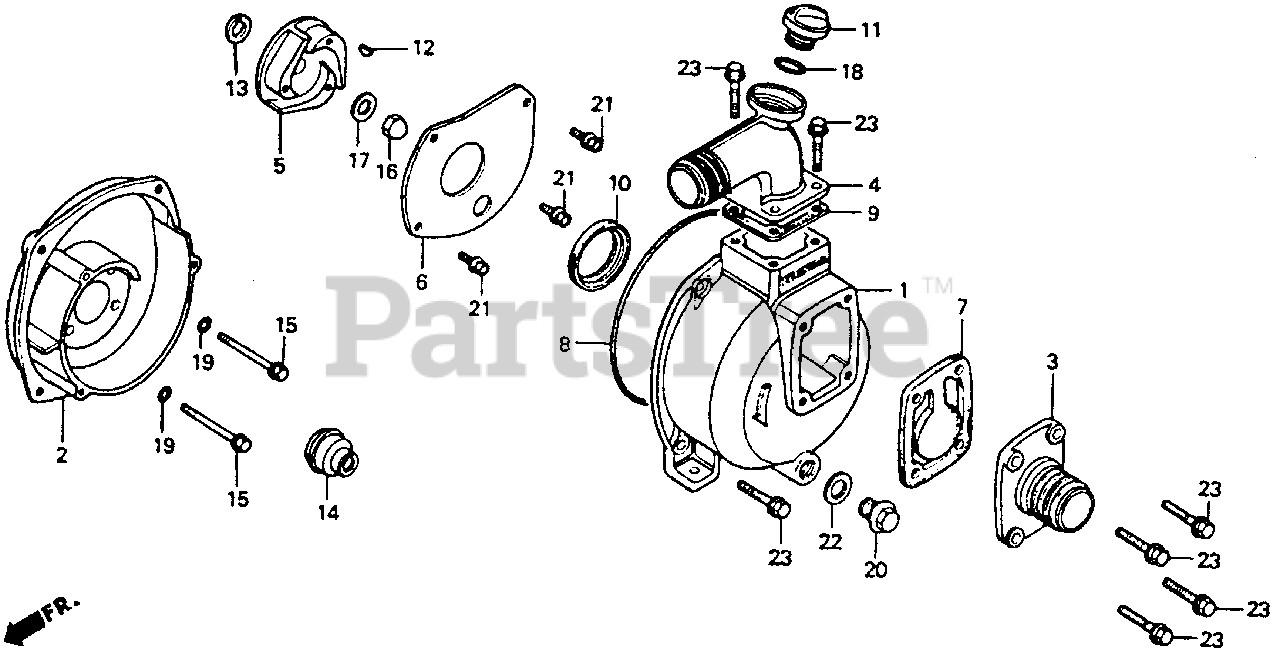

WA30X CASING + IMPELLER Parts Diagram

  • Title

1

Honda 78101-955-000

CASING

$

$

Not available

2

Honda 78102-955-000

COVER, CASE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 78103-955-670

MOUTH, IN. (NOT AVAILABLE)

$

$

Not available

4

Honda 78104-955-670

MOUTH, OUTLET (NOT AVAILABLE)

$181.99

$

Usually ships in 3-6 days

0

5

Honda 78106-955-000

IMPELLER

$

$

Not available

6

Honda 78107-955-000

DISK, FRICTION

$44.99

$

Usually ships in 3-6 days

0

7

Honda 78110-955-000

VALVE, IN.

$

$

Not available

8

Honda 78112-954-003

RING, CASING SEAL

$17.99

$

In Stock, only 1 left!

0

9

Honda 78114-955-000

GASKET, OUTLET

$14.99

$

In Stock, only 1 left!

0

10

Honda 78115-955-000

SEE PART DETAILS - PRI; RING, CENTER SEAL

$12.99

$

Usually ships in 3-6 days

0

11

Honda 78117-954-000

CAP, FILLER

$

$

Not available

12

Honda 78120-954-000

KEY, IMPELLER

$4.49

$

Usually ships in 3-6 days

0

13

Honda 78122-954-000

SHIM, ADJUSTER

$5.99

$

Usually ships in 3-6 days

0

14

Honda 78130-955-023

SEAL ASSY., MECHANICAL WATER

$

$

Not available

15

Honda 90101-955-000

BOLT, PUMP SETTING

$

$

Not available

16

Honda 90301-954-000

NUT, IMPELLER

$10.99

$

Usually ships in 3-6 days

0

17

Honda 90501-954-000

WASHER (13MM)

$2.49

$

In Stock, only 2 left!

0

18

Honda 91351-954-000

O-RING, FILLER CAP

$6.99

$

Usually ships in 3-6 days

0

19

Honda 91352-954-000

O-RING (7.5MM)

$

$

Not available

20

Honda 92800-20000

BOLT, DRAIN PLUG (20MM)

$7.49

$

Usually ships in 3-6 days

0

21

Honda 93402-08020-08

BOLT-WASHER (8X20)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

$1.99

$

In Stock, only 4 left!

0

23

Honda 95701-10028-08

BOLT, FLANGE (10X28)

$2.99

$

Usually ships in 3-6 days

0
