WA30 X C (WA30X) - Honda Water Pump, Made in Japan (SN: WA30X-1000001 - WA30X-9999999) CYLINDER HEAD Parts Diagram

Water Pump, Made in Japan

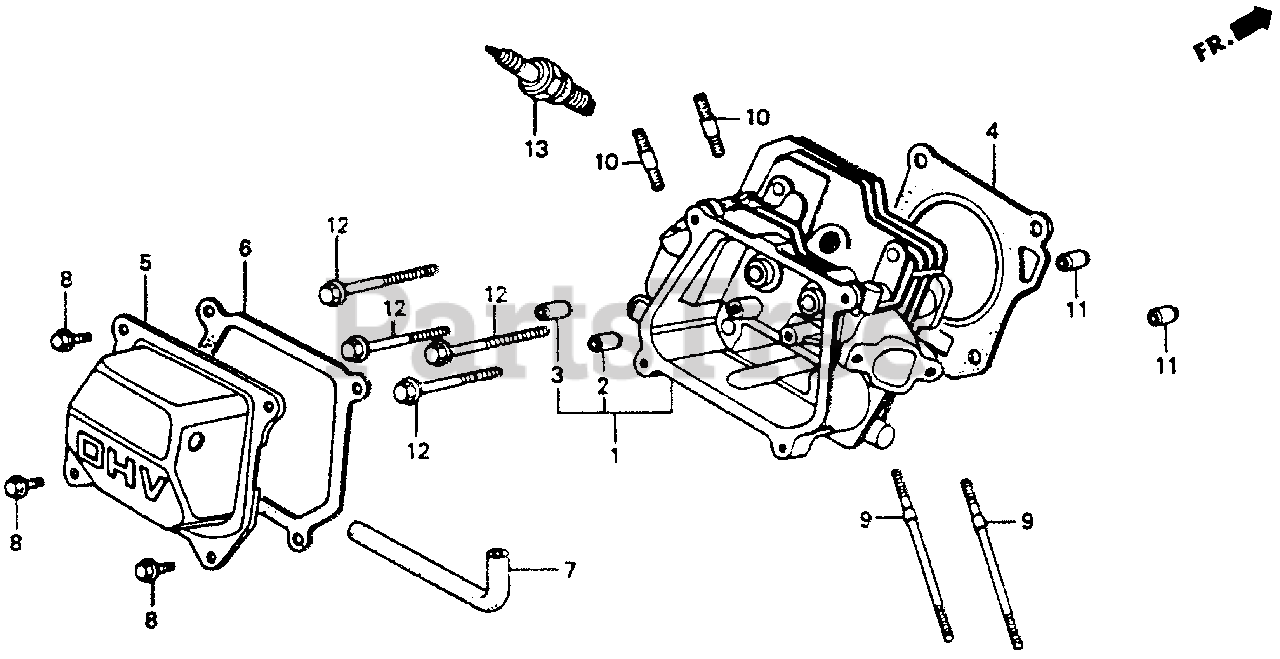

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 122A0-ZE1-000

CYLINDER HEAD (NOT AVAILABLE)

Note: Use up to Engine SN 1206239.

$

$

Currently unavailable

1

Honda 122A0-ZE1-020

CYLINDER HEAD

Note: Use from Engine SN 1206240.

$

$

Not available

2

Honda 12204-ZE1-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OS)

$

$

Not available

2

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

$9.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OS)

$10.99

$

In Stock, only 2 left!

0

4

Honda 12251-ZE1-800

GASKET, CYLINDER HEAD

$12.99

$

In Stock, only 1 left!

0

5

Honda 12310-ZE1-000

SEE PART DETAILS - SUP; COVER, HEAD

$18.99

$

Usually ships in 3-6 days

0

5

Honda 12310-ZE1-010

SEE PART DETAILS - SUP; COVER, HEAD
(Superseded to 12310-ZE1-020)

$18.99

$

In Stock, only 1 left!

0

5

Honda 12310-ZE1-020

SEE PART DETAILS - PRI; COVER, HEAD

$18.99

$

In Stock, only 1 left!

0

6

Honda 12391-ZE1-000

GASKET, HEAD COVER

$5.49

$

In Stock, Qty 20+

0

7

Honda 15721-ZE1-010

SEE PART DETAILS - PRI; TUBE, BREATHER

Note: Use from Engine SN 1220570.

$5.49

$

Usually ships in 3-6 days

0

7

Honda 15721-ZE1-710

TUBE, BREATHER

Note: Use up to Engine SN 1220569.

$

$

Not available

8

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use up to Engine SN 1049824.

$2.49

$

In Stock, Qty 17

0

8

Honda 90016-ZE1-000

BOLT, FLANGE (6X13) (CT200)

Note: Use from Engine SN 1049825.

$3.99

$

Usually ships in 3-6 days

0

9

Honda 90043-ZE1-020

SEE PART DETAILS - PRI; BOLT, STUD (6X112)

$6.99

$

In Stock, only 2 left!

0

10

Honda 90047-ZE1-000

BOLT, STUD (8X32)

$4.99

$

In Stock, only 2 left!

0

11

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

12

Honda 95723-08060-00

BOLT, FLANGE (8X60)

$2.49

$

Usually ships in 3-6 days

0

13

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

$3.99

$

In Stock, Qty 20+

0

13

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

$3.99

$

In Stock, Qty 8

0
