WA30 D (WA30) - Honda Water Pump, Made in Japan (SN: WA30-1000053 - WA30-1005562) FLYWHEEL + POINTS Parts Diagram

Water Pump, Made in Japan

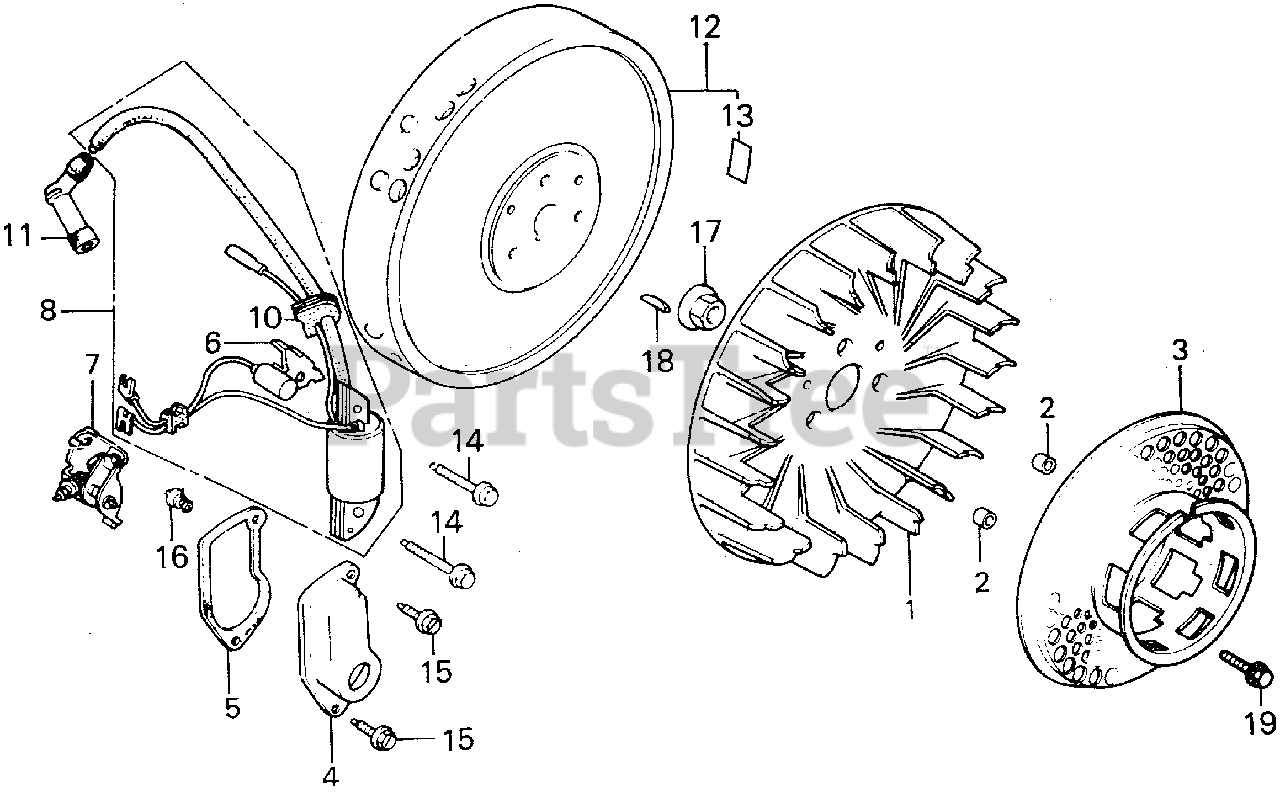

FLYWHEEL + POINTS Parts Diagram

  • Title

1

Honda 19511-883-020

SEE PART DETAILS - PRI; FAN, COOLING

$17.99

$

Usually ships in 3-6 days

0

2

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

3

Honda 28451-883-020

SEE PART DETAILS - SUP; PULLEY, STARTER

Note: Use up to Engine SN 1533807.

$

$

Currently unavailable

3

Honda 28451-883-030

SEE PART DETAILS - PRI; PULLEY, STARTER

$

$

Not available

4

Honda 30211-883-000

COVER, POINTS

$

$

Not available

5

Honda 30215-883-306

GASKET, POINT COVER

$

$

Not available

6

Honda 30251-883-003

CONDENSER

Note: Use from Engine SN 1546272.

$21.99

$

Usually ships in 3-6 days

0

7

Honda 30280-883-005

POINTS ASSY.

$33.99

$

Usually ships in 3-6 days

0

8

Honda 30560-883-015

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$138.99

$

Usually ships in 3-6 days

0

10

Honda 30563-883-000

SEE PART DETAILS - SUP; GROMMET, WIRE

$

$

Currently unavailable

11

Honda 30700-865-013

CAP ASSY., NOISE SUPPRESSOR

$

$

Not available

12

Honda 31100-883-040

FLYWHEEL

$104.99

$

Usually ships in 3-6 days

0

14

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 1 left!

0

15

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 90051-883-000

SCREW-WASHER (5X12)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM)

$7.99

$

Usually ships in 3-6 days

0

18

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

$4.99

$

In Stock, Qty 7

0

19

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0
