WA30 D (WA30) - Honda Water Pump, Made in Japan (SN: WA30-1000053 - WA30-1005562) CYLINDER HEAD + CYLINDER Parts Diagram

Water Pump, Made in Japan

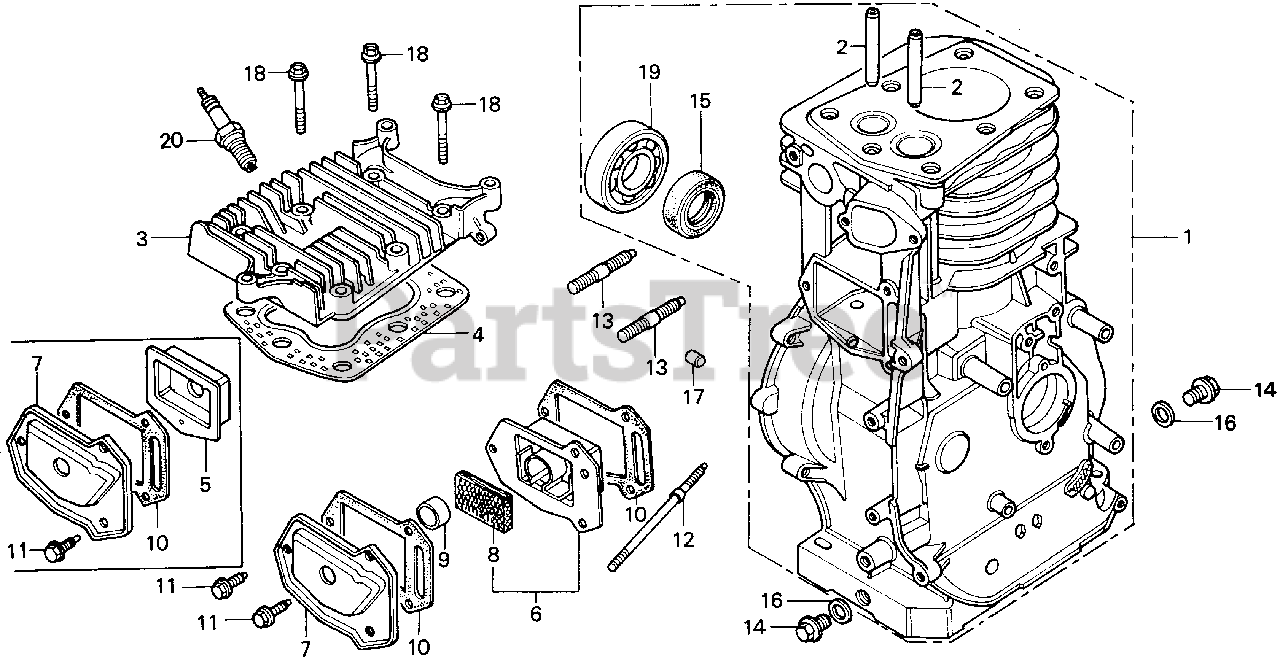

CYLINDER HEAD + CYLINDER Parts Diagram

  • Title

1

Honda 12000-883-345

SEE PART DETAILS - SUP; CYLINDER ASSY.

$

$

Currently unavailable

2

Honda 12133-883-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

$18.99

$

Usually ships in 3-6 days

0

2

Honda 12134-883-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OS)
(Superseded to 12133-883-306)

$18.99

$

Usually ships in 3-6 days

0

3

Honda 122A2-883-030

SEE PART DETAILS - PRI; CYLINDER HEAD

$25.99

$

Usually ships in 3-6 days

0

4

Honda 12281-883-306

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12281-883-801)

$33.99

$

Usually ships in 3-6 days

0

4

Honda 12281-883-800

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD
(Superseded to 12281-883-801)

$33.99

$

Usually ships in 3-6 days

0

4

Honda 12281-883-801

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$33.99

$

Usually ships in 3-6 days

0

5

Honda 12360-883-010

CASE, BREATHER

Note: Use up to Engine SN 1556857.

$15.99

$

Usually ships in 3-6 days

0

6

Honda 12360-883-010

CASE, BREATHER

Note: Use from Engine SN 1556858.

$15.99

$

Usually ships in 3-6 days

0

7

Honda 12361-883-000

COVER, TAPPET ROOM

$16.99

$

Usually ships in 3-6 days

0

8

Honda 12367-883-003

FILTER, BREATHER

Note: Use from Engine SN 1556858.

$3.99

$

Usually ships in 3-6 days

0

9

Honda 12369-883-000

SEAL, BREATHER

Note: Use from Engine SN 1556858.

$4.99

$

Usually ships in 3-6 days

0

10

Honda 12375-883-000

GASKET, TAPPET COVER

Note: Use up to Engine SN 1556857.

$4.99

$

In Stock, only 2 left!

0

10

Honda 12375-883-000

GASKET, TAPPET COVER

Note: Use from Engine SN 1556858.

$4.99

$

In Stock, only 2 left!

0

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

12

Honda 90043-883-010

BOLT, STUD (6X96)

Note: Use up to Engine SN 1537217.

$7.99

$

Usually ships in 3-6 days

0

12

Honda 90043-883-680

SEE PART DETAILS - SUP; BOLT, STUD (6X89)

Note: Use from Engine SN 1537218 to 2157967.

$

$

Currently unavailable

12

Honda 90043-883-681

SEE PART DETAILS - PRI; BOLT, STUD (6X89)

Note: Use from Engine SN 1537218.

$7.99

$

Usually ships in 3-6 days

0

13

Honda 90047-883-000

BOLT, STUD (8X35)

$5.49

$

Usually ships in 3-6 days

0

14

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$5.49

$

In Stock, Qty 15

0

15

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$9.99

$

In Stock, Qty 20+

0

15

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$9.99

$

In Stock, Qty 20+

0

16

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.99

$

In Stock, Qty 20+

0

17

Honda 94301-08140

PIN A, DOWEL (8X14)

$3.49

$

In Stock, Qty 8

0

18

Honda 95700-08045-08

BOLT, FLANGE (8X45)
(Superseded to 95701-08045-08)

$3.49

$

In Stock, only 3 left!

0

18

Honda 95701-08045-08

BOLT, FLANGE (8X45)

$3.49

$

In Stock, only 3 left!

0

19

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$26.99

$

In Stock, Qty 10

0

20

Honda 98076-54716

SPARK PLUG (BR-4HS) (NGK)

$3.99

$

In Stock, Qty 20+

0

20

Honda 98076-54757

SPARK PLUG (W14FR-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0
