WA30 C (WA30) - Honda Water Pump, Made in Japan (SN: WA30-1005563 - WA30-9999999) WA30 FRAME BED + HOSE COUPLING Parts Diagram

Water Pump, Made in Japan

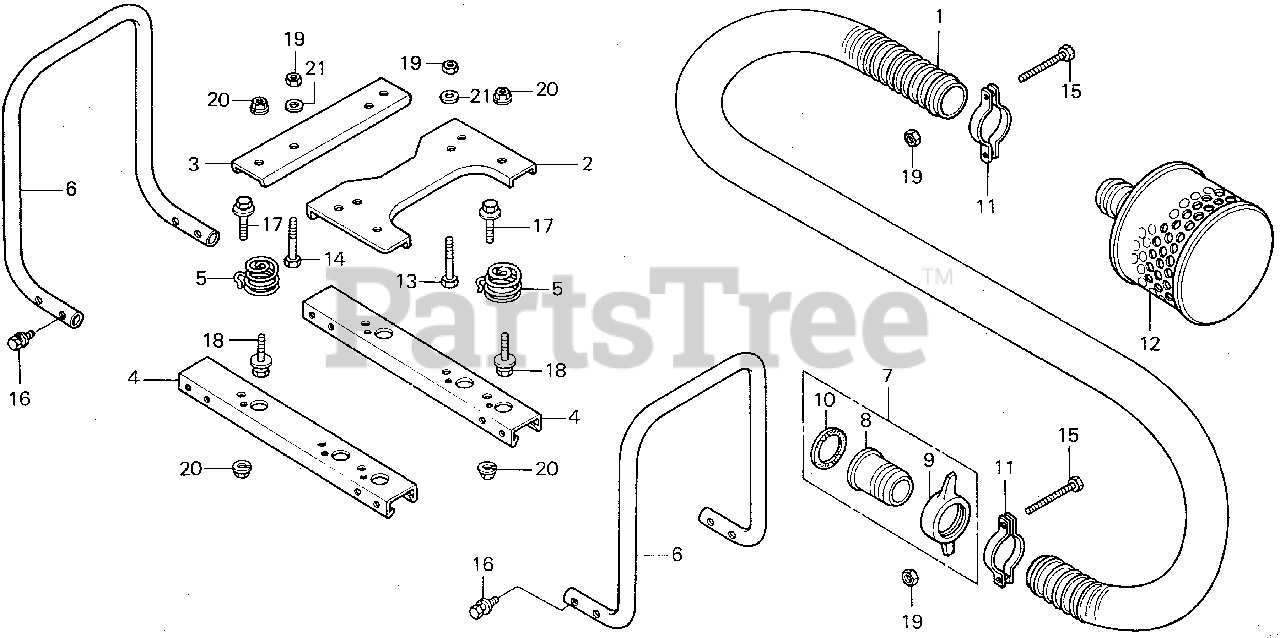

WA30 FRAME BED + HOSE COUPLING Parts Diagram

  • Title
1

Honda 78111-805-810

HOSE, SUCTION (RUBBER)

$

$

Currently unavailable

1

Honda 78111-843-841

HOSE, SUCTION (RUBBER)

$

$

Currently unavailable

1

Honda 78330-955-003

HOSE, SUCTION (VINYL)

$

$

Currently unavailable

2

Honda 78201-955-000

BRACKET A, MOUNTING

$

$

Not available

3

Honda 78202-955-000

BRACKET B, MOUNTING

$

$

Not available

4

Honda 78203-955-000

BED, FRAME

$

$

Not available

5

Honda 78205-954-000

SPRING, MOUNT

$17.99

$

In Stock, only 3 left!

0

6

Honda 78206-955-000

HANDLE, CARRYING

$

$

Not available

12

Honda 78325-955-670

STRAINER (NOT AVAILABLE)

$

$

Not available

13

Honda 92000-08025-0H

SEE PART DETAILS - SUP; BOLT, HEX. (8X25)

$

$

Currently unavailable

13

Honda 92101-08025-0H

SEE PART DETAILS - PRI; BOLT, HEX. (8X28)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 92101-08035-0H

BOLT, HEX. (8X35)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 92145-08045-0H

BOLT, HEX. (8X45)

$

$

Currently unavailable

16

Honda 93402-08020-08

BOLT-WASHER (8X20)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 93404-08020-08

SEE PART DETAILS - PRI; BOLT-WASHER (8X20)

$2.49

$

In Stock, Qty 6

0

18

Honda 93404-08025-08

BOLT-WASHER (8X25)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

20

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0

21

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 3 left!

0
