WA20 K1 D (A20K1) - Honda Water Pump, Made in Japan (SN: WA20K1-2000012 - WA20K1-2009730) WA20 CASING + IMPELLER K1 Parts Diagram

Water Pump, Made in Japan

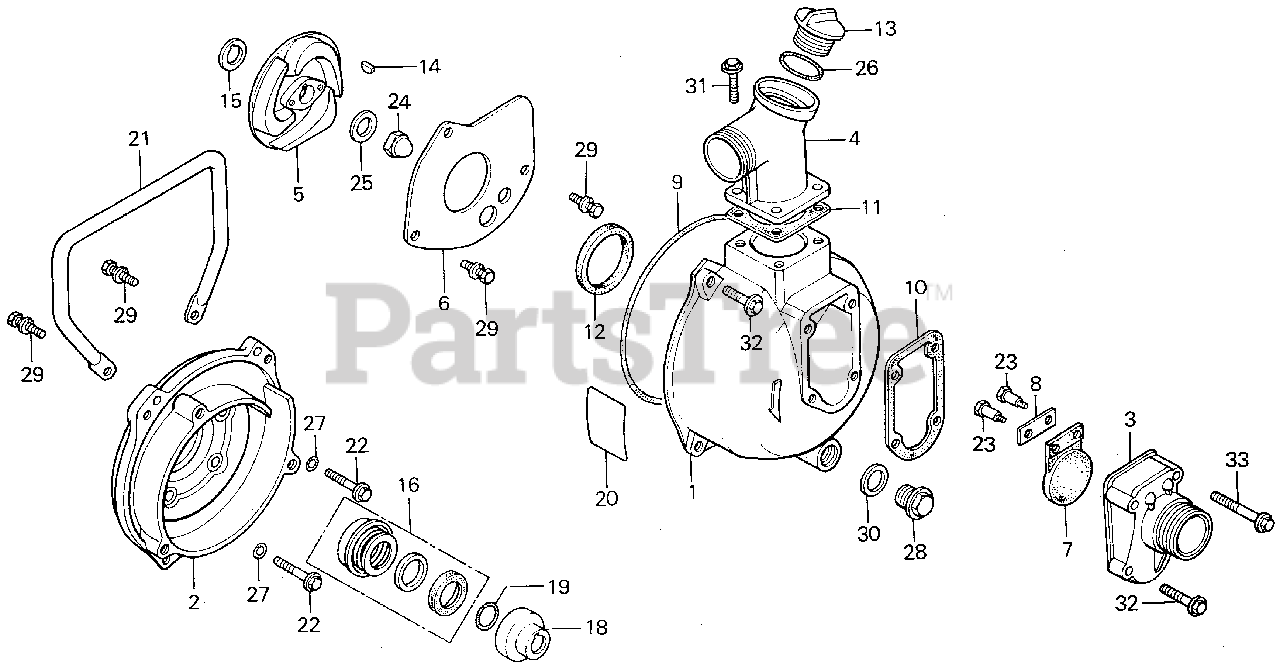

WA20 CASING + IMPELLER K1 Parts Diagram

  • Title

1

Honda 78101-954-000

CASING

$

$

Currently unavailable

2

Honda 78102-954-020T

COVER, CASE *NH2M* (METALLIC SILVER)

$

$

Currently unavailable

3

Honda 78103-954-000

PIPE PUMP, IN.

$

$

Not available

4

Honda 78104-954-000

PIPE, PUMP OUTLET (NOT AVAILABLE)

$183.99

$

Usually ships in 3-6 days

0

5

Honda 78106-954-020

IMPELLER

$

$

Not available

6

Honda 78107-954-000

DISK, FRICTION

$

$

Not available

7

Honda 78110-954-000

VALVE, IN.

$

$

Not available

8

Honda 78111-954-000

RETAINER, VALVE

$

$

Not available

9

Honda 78112-954-003

RING, CASING SEAL

$18.99

$

Usually ships in 3-6 days

0

10

Honda 78113-954-000

GASKET, IN.

$13.99

$

Usually ships in 3-6 days

0

11

Honda 78114-954-000

GASKET, OUTLET

$

$

Not available

12

Honda 78115-954-000

RING, CENTER SEAL

$

$

Not available

13

Honda 78117-954-000

CAP, FILLER

$

$

Not available

14

Honda 78120-954-000

KEY, IMPELLER

$4.99

$

Usually ships in 3-6 days

0

15

Honda 78122-954-000

SHIM, ADJUSTER

$6.49

$

Usually ships in 3-6 days

0

16

Honda 78130-YB4-901

SEE PART DETAILS - PRI; SEAL ASSY., MECHANICAL WATER

$116.99

$

In Stock, only 3 left!

0

18

Honda 78131-954-010

SEE PART DETAILS - PRI; COLLAR, SEAL SETTING

$

$

Not available

19

Honda 78132-954-000

O-RING, MECHANICAL SEAL

$4.99

$

Usually ships in 3-6 days

0

20

Honda 78140-954-670

PLATE, DESCRIPTION

Note: Use from Frame SN 2010132.

$

$

Not available

20

Honda 78140-954-681

PLATE, DESCRIPTION

Note: Use up to Frame SN 2010131.

$

$

Not available

21

Honda 78206-954-000

HANDLE

$

$

Not available

22

Honda 90101-954-000

BOLT, PUMP SETTING

$7.49

$

Usually ships in 3-6 days

0

23

Honda 90162-721-000

SEE PART DETAILS - SUP; BOLT, CHOKE LEVER

$

$

Currently unavailable

24

Honda 90301-954-000

NUT, IMPELLER

$10.99

$

Usually ships in 3-6 days

0

25

Honda 90501-954-000

WASHER (13MM)

$2.99

$

In Stock, only 2 left!

0

26

Honda 91351-954-000

O-RING, FILLER CAP

$7.49

$

Usually ships in 3-6 days

0

27

Honda 91352-954-000

O-RING (7.5MM)

$

$

Not available

28

Honda 92800-20000

BOLT, DRAIN PLUG (20MM)

$7.49

$

Usually ships in 3-6 days

0

29

Honda 93402-08020-08

BOLT-WASHER (8X20)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

$1.99

$

In Stock, Qty 10

0

31

Honda 95701-08025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

$0.99

$

In Stock, Qty 6

0

32

Honda 95701-08035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35)

$1.99

$

Usually ships in 3-6 days

0

33

Honda 95700-08050-08

SEE PART DETAILS - SUP; BOLT, FLANGE (8X50)

$

$

Currently unavailable

33

Honda 95701-08050-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X50)

$3.49

$

Usually ships in 3-6 days

0
