WA15 C (G100) - Honda Water Pump, Made in Japan (SN: G100-1139344 - G100-1490769) WA15 CASING + IMPELLER Parts Diagram

Water Pump, Made in Japan

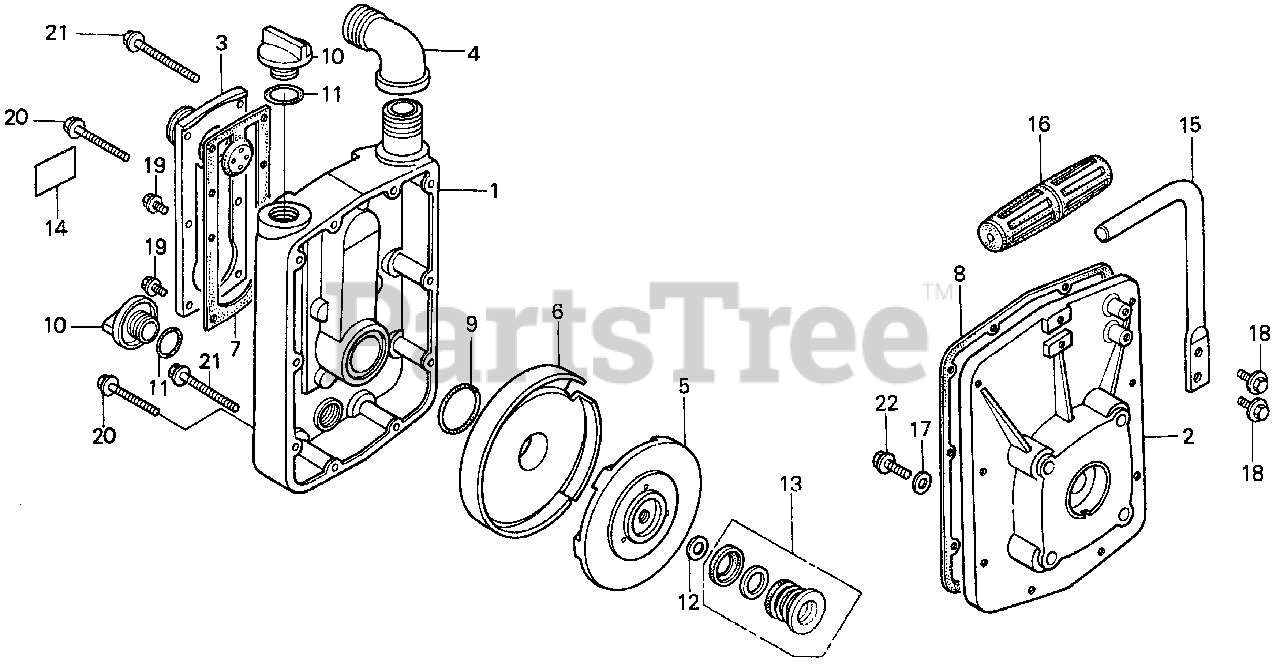

WA15 CASING + IMPELLER Parts Diagram

  • Title

1

Honda 78101-YB0-003

CASING

$

$

Currently unavailable

2

Honda 78102-YB0-003

PLATE, END (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 78103-YB0-611

SEE PART DETAILS - SUP; PLATE, SUCTION

$

$

Currently unavailable

3

Honda 78103-YB0-761

SEE PART DETAILS - PRI; PLATE, SUCTION (NPTF)

$

$

Not available

4

Honda 78104-YB0-611

OUTLET (NOT AVAILABLE)

$96.99

$

Usually ships in 3-6 days

0

5

Honda 78106-YB0-003

IMPELLER
(Superseded to 78106-YB0-612)

Note: Use up to Frame SN 1340457.

$9.49

$

Usually ships in 3-6 days

0

5

Honda 78106-YB0-611

IMPELLER

Note: Use from Frame SN 1340458.

$

$

Not available

6

Honda 78107-YB0-003

CASE, VOLUTE
(Superseded to 78107-YB0-612)

Note: Use up to Frame SN 1340457.

$16.99

$

Usually ships in 3-6 days

0

6

Honda 78107-YB0-611

CASE, VOLUTE

Note: Use from Frame SN 1340458.

$

$

Not available

7

Honda 78110-YB0-003

GASKET, SUCTION
(Superseded to 78153-YB0-840)

$2.49

$

In Stock, only 4 left!

0

8

Honda 78112-YB0-003

GASKET, END PLATE
(Superseded to 78112-YB0-004)

$6.99

$

In Stock, Qty 11

0

9

Honda 78115-YB0-003

RING A, SEAL
(Superseded to 78115-YB0-004)

$0.99

$

In Stock, Qty 8

0

10

Honda 78117-YB0-003

CAP, FILLER

$

$

Not available

11

Honda 78118-YB0-003

RING, SEAL (B)
(Superseded to 78118-YB0-004)

$10.99

$

Usually ships in 3-6 days

0

12

Honda 78122-YB0-003

SHIM, ADJUSTER
(Superseded to 78122-YB0-004)

$0.99

$

In Stock, Qty 7

0

13

Honda 78130-YB0-003

SEE PART DETAILS - SUP; SEAL ASSY., MECHANICAL
(Superseded to 78130-YF2-003)

$34.99

$

Usually ships in 3-6 days

0

13

Honda 78130-YF2-003

SEE PART DETAILS - PRI; SEAL ASSY., MECHANICAL
(Superseded to 78130-YH5-611)

$34.99

$

Usually ships in 3-6 days

0

15

Honda 78206-YB0-003

HANDLE (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 78207-YB0-003

GRIP, HANDLE (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 90474-333-000

WASHER (8MM)

$5.49

$

In Stock, only 4 left!

0

18

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

18

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 19

0

19

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 95701-06045-07

BOLT, FLANGE (6X45)

$2.99

$

In Stock, Qty 10

0

21

Honda 95701-06065-00

BOLT, FLANGE (6X65)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, Qty 5

0
