WA15 C (G100) - Honda Water Pump, Made in Japan (SN: G100-1139344 - G100-1490769) CYLINDER HEAD + CYLINDER Parts Diagram

Water Pump, Made in Japan

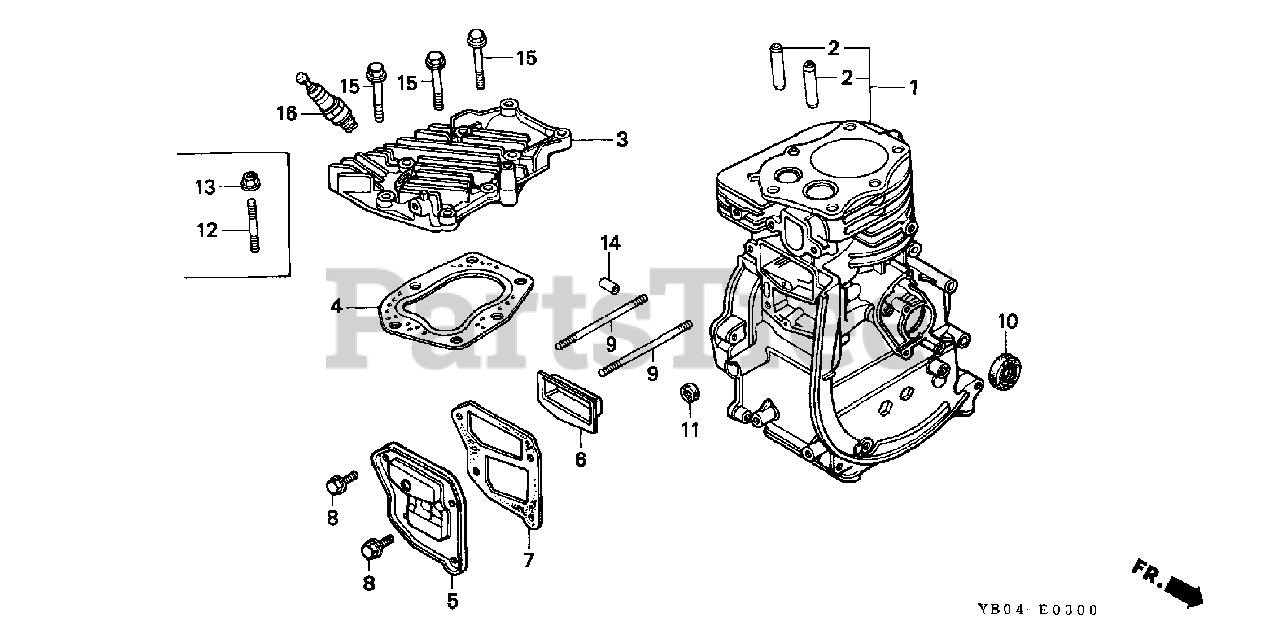

CYLINDER HEAD + CYLINDER Parts Diagram

  • Title

1

Honda 12100-896-315

CYLINDER

$

$

Currently unavailable

2

Honda 12133-896-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

$10.99

$

Usually ships in 3-6 days

0

3

Honda 12221-896-000

CYLINDER HEAD (NOT AVAILABLE)

$

$

Not available

4

Honda 12281-896-306

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$

$

Not available

5

Honda 12361-896-000

COVER, TAPPET (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 12370-896-000

SEPARATOR (INNER) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 12375-896-000

GASKET, TAPPET COVER

$3.99

$

In Stock, only 1 left!

0

8

Honda 90002-892-000

BOLT, FLANGE (5X10)

$1.99

$

In Stock, Qty 5

0

9

Honda 90041-896-000

BOLT, STUD (5X80)

$

$

Not available

10

Honda 91202-892-004

OIL SEAL (17X30X6) (NOK)

$12.99

$

Usually ships in 3-6 days

0

11

Honda 91231-816-000

OIL SEAL

$

$

Not available

12

Honda 92900-06028-3B

BOLT, STUD (6X45) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

13

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

14

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

15

Honda 95701-06035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35)

$2.49

$

In Stock, only 4 left!

0

16

Honda 98073-54744

SPARK PLUG (BMR4A) (NGK)

$3.49

$

In Stock, only 4 left!

0

16

Honda 98073-54754

SPARK PLUG (W14MR-U) (DENSO)

$3.99

$

Usually ships in 3-6 days

0
