WA15 C (G100) - Honda Water Pump, Made in Japan (SN: G100-1139344 - G100-1490769) CRANKCASE COVER Parts Diagram

Water Pump, Made in Japan

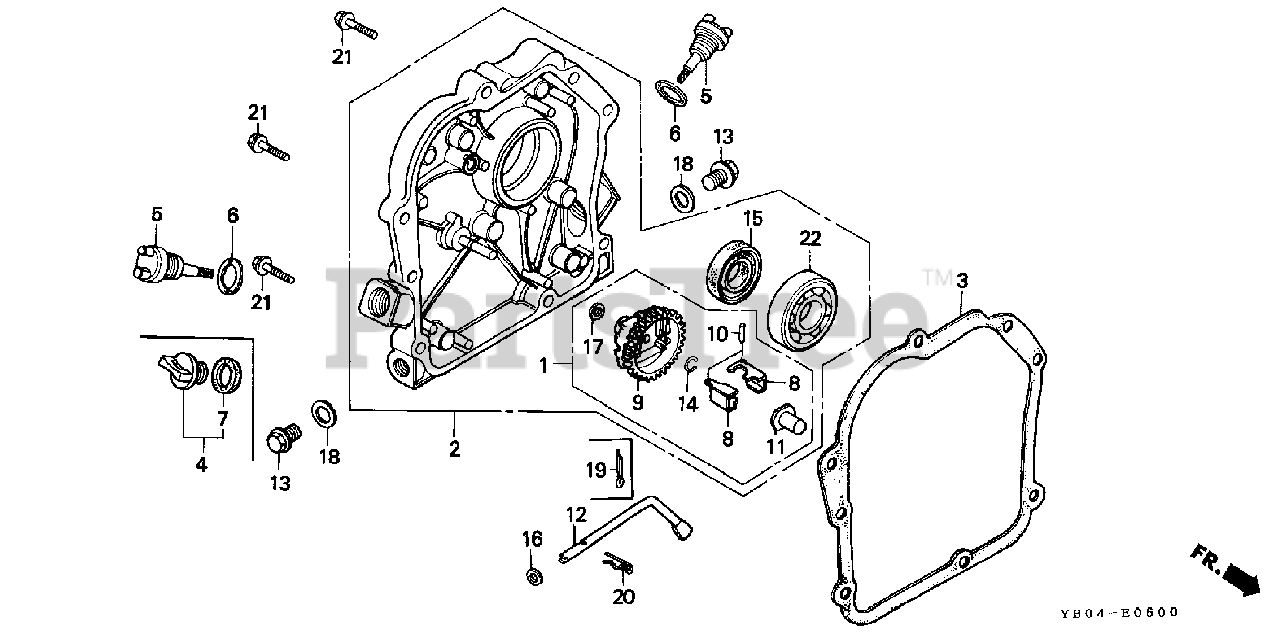

CRANKCASE COVER Parts Diagram

  • Title

2

Honda 11300-896-620

COVER ASSY., CRANKCASE

$

$

Not available

3

Honda 11381-896-306

SEE PART DETAILS - PRI; GASKET, CASE COVER

$

$

Not available

5

Honda 15620-896-000

CAP, OIL FILLER (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 15621-896-010

GASKET, OIL FILLER CAP

$5.49

$

In Stock, Qty 5

0

8

Honda 16511-896-000

WEIGHT, GOVERNOR

$2.99

$

In Stock, only 3 left!

0

9

Honda 16512-ZG0-000

HOLDER, GOVERNOR WEIGHT

Note: Use from Engine SN 1443596.

$14.99

$

Usually ships in 3-6 days

0

9

Honda 16512-896-300

HOLDER, GOVERNOR WEIGHT (NOT AVAILABLE)

Note: Use up to Engine SN 1443595.

$

$

Not available

11

Honda 16531-ZG0-000

SLIDER, GOVERNOR

Note: Use from Engine SN 1443596.

$4.49

$

Usually ships in 3-6 days

0

11

Honda 16531-896-000

SLIDER, GOVERNOR
(Superseded to 16531-ZG0-000)

Note: Use up to Engine SN 1443595.

$4.49

$

Usually ships in 3-6 days

0

12

Honda 16541-896-000

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM

$9.49

$

Usually ships in 3-6 days

0

13

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$4.99

$

In Stock, only 1 left!

0

14

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 7

0

14

Honda 90602-896-000

SEE PART DETAILS - SUP; CLIP, GOVERNOR HOLDER

$1.99

$

Usually ships in 3-6 days

0

15

Honda 91202-892-004

OIL SEAL (17X30X6) (NOK)

$12.99

$

Usually ships in 3-6 days

0

16

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 5

0

18

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, only 3 left!

0

19

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

Note: Use from Engine SN 1443596.

$2.49

$

Usually ships in 3-6 days

0

19

Honda 94201-25280

PIN, COTTER (2.5X28)

Note: Use up to Engine SN 1443595.

$1.49

$

Usually ships in 3-6 days

0

20

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

21

Honda 95701-06028-08

BOLT, FLANGE (6X28)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$11.99

$

Usually ships in 3-6 days

0
