WA GT 20H48ST A - Wizard Lawn Tractor (2003) Ground Drive Parts Diagram

Lawn Tractor

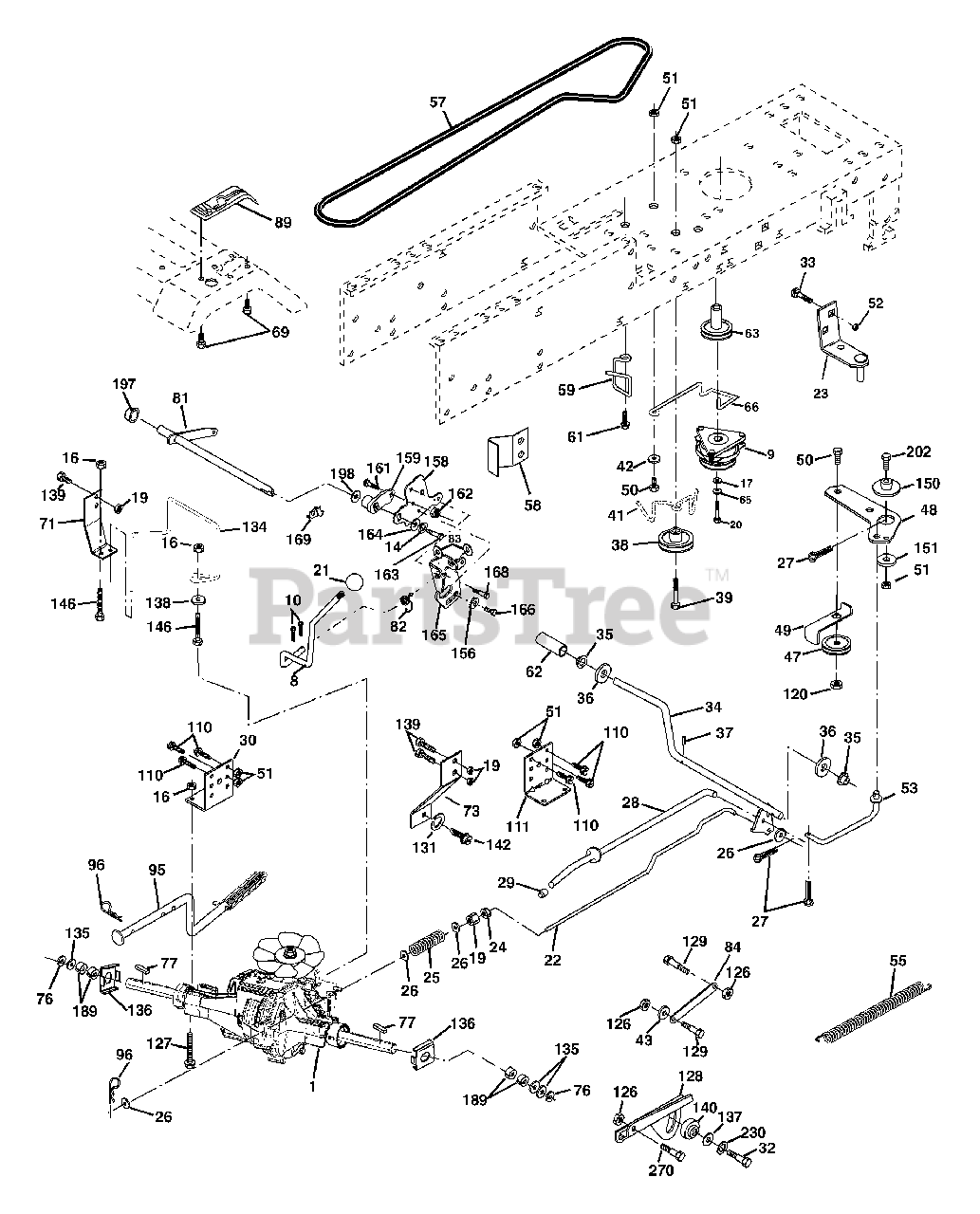

Ground Drive Parts Diagram

  • Title
1

Transaxle, Hydro Gear Model 333-3000

Note: (Order parts from transaxle manufacturer)

$

$

Not available

8

Electrolux/AYP 166020

Rod Shift Fender Adjust Yt
(Superseded to 532166020)

$

$

Not available

9

Electrolux/AYP 174367

Clutch Electric
(Superseded to 532174367)

$

$

Not available

10

Electrolux/AYP 76020416

Pin, Cotter 1/8 x 1
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 10040400

Washer Lock Hvy Helical
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 73800500

Nut Lock Hex W/Ins. 5/16-18 Unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 126197X

Washer 1-1/2 OD x 15/32 ID x .250
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

19

Electrolux/AYP 73800600

Nut Lock Hex W/Wsh 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 173937

Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 THR
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 140845

Knob
(Superseded to 532140845)

$13.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 158274

Rod, Brake
(Superseded to 532158274)

$17.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 178289

Bracket Anti-Rotation
(Superseded to 532190736)

$40.99

$

In Stock, only 3 left!

0

24

Electrolux/AYP 73350600

Nut, Hex Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 106888X

Spring, Rod, Brake
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 19131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 76020412

Pin Cotter 1/8 x 3/4
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 175765

Rod, Brake, Park
(Superseded to 532175765)

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 71673

Cap, Brake, Parking Black
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 123780X

Bracket, Transaxle, L.H.
(Superseded to 532123780)

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 74780512

Bolt Fin Hex 5/16-18 Unc x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

33

Murray 72140608

Bolt Rdhd Sqnk 3/8-16unc x 1

$

$

Not available

34

Electrolux/AYP 175578

Shaft, Foot Pedal
(Superseded to 532175578)

$31.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 120183X

Bearing, Nylon
(Superseded to 532120183)

$6.99

$

In Stock, only 3 left!

0

36

Electrolux/AYP 19211616

Washer 21/32 x 1 x 16 Gauge
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

37

Murray 1572H

Pin, Roll 3/16 x 1

$

$

Not available

38

Electrolux/AYP 179114

Idler, Flat
(Superseded to 532179114)

$31.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 74760648

Bolt Rdhd 3/8-16 Unc x 3
(Superseded to 583614301)

$

$

Not available

41

Electrolux/AYP 175556

Keeper, Idler
(Superseded to 532175556)

$9.99

$

In Stock, only 1 left!

0

42

Electrolux/AYP 19131312

Washer 13/32 x 16/16 x 12 Gauge
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

43

Electrolux/AYP 19111012

Bolt Shoulder 5/16-18 Unc
(Superseded to 819111012)

$6.49

$

Usually ships in 3-10 days

0

47

Murray 127783

Pulley, Idler

$

$

Not available

48

Electrolux/AYP 154407

Bellcrank Clutch Grnd Drv Stl
(Superseded to 532154407)

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 123205X

Retainer, Belt
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 72110612

Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73680600

Nut Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Murray 145212

Nut Hexflange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 105710X

Link, Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 105709X

Spring, Return, Clutch
(Superseded to 532105709)

$11.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 161741

V-Belt, Drive
(Superseded to 584449701)

$

$

Not available

58

Electrolux/AYP 158278

Keeper, Belt, Transaxle, R.H.

$

$

Not available

59

Electrolux/AYP 169691

Keeper, Center Span
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 17120614

Screw 3/8-16 x .875
(Superseded to 17490614)

$

$

Not available

62

Electrolux/AYP 8883R

Cover, Foot Pedal
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 175684

Pulley, Engine
(Superseded to 583070801)

$35.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 10040700

Washer, Lock Hvy Hlcl Spr 7/16
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 161488

Keeper Belt Engine F-proof
(Superseded to 532161488)

$

$

Not available

69

Electrolux/AYP 142432

Screw Hex Wsh Hi-Lo 1/4-1/2 Unc
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 158283

Strap Torque Lh Hydro-3000
(Superseded to 532158283)

$14.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 158282

Strap Torque Rh Hydro-300
(Superseded to 532158282)

$

$

Not available

76

Electrolux/AYP 12000053

E-Ring
(Superseded to 812000053)

$7.49

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 9396E

Key Square 1/4 x 2
(Superseded to 532009396)

$3.99

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 165598

Shaft Asm Cross Tapered
(Superseded to 532165598)

$21.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 165711

Spring, Torsion
(Superseded to 532165711)

$7.49

$

In Stock, only 1 left!

0

83

Electrolux/AYP 19171216

Washer 17/32 x 3/4 x 16 Gauge
(Superseded to 819171216)

$

$

Not available

84

Electrolux/AYP 165926

Link Transaxle

$5.49

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 179121X428

Console, Shift
(Superseded to 532182882)

$

$

Not available

95

Electrolux/AYP 15858

Control Asm Bypass Hydro-3000

$

$

Not available

96

Electrolux/AYP 4497H

Retainer Spring 1" Zinc/Cad
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

110

Electrolux/AYP 74780612

Bolt Fin Hex 3/8-16unc x 3/4 Gr. 5
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

111

Electrolux/AYP 123776X

Bracket, Transaxle, R.H.
(Superseded to 532123776)

$

$

Not available

120

Murray 73900600

Nut Lock Flg 3/8-16 Unc

$

$

Not available

126

Electrolux/AYP 1685H

Nut Lock 5/16-18 Nc Thd
(Superseded to 532001685)

$

$

Not available

127

Electrolux/AYP 74490548

Bolt Hex Flghd 5/16-18 x 3.0 Gr.5
(Superseded to 874490548)

$6.49

$

In Stock, only 1 left!

0

128

Electrolux/AYP 184902

Bracket Neutral Adjust HG-3000
(Superseded to 583139601)

$9.49

$

Usually ships in 3-10 days

0

129

Electrolux/AYP 105529X

Bolt Shoulder 5/16-18 Unc
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

131

Electrolux/AYP 10140500

Washer Lock 5/16

$

$

Not available

134

Electrolux/AYP 158272

Rod Actuator Bypass Hydo-3000

$

$

Not available

135

Electrolux/AYP 123800X

Washer 1-1/32 x 1-5/8 x 16 Gauge
(Superseded to 532123800)

$7.49

$

Usually ships in 3-10 days

0

136

Electrolux/AYP 163168X

Washer Axle Flange

$

$

Not available

137

Electrolux/AYP 19111212

Washer 11/32 x 3/4 x 12 Ga.
(Superseded to 819111212)

$3.99

$

In Stock, Qty 11

0

138

Electrolux/AYP 19112016

Washer 11/32 x 1.25 x 16. Ga.
(Superseded to 582732301)

$3.99

$

Usually ships in 3-10 days

0

139

Electrolux/AYP 74780612

Bolt Fin Hex 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

140

Electrolux/AYP 4475J

Bushing Pinion Sector

$2.99

$

Usually ships in 3-10 days

0

142

Electrolux/AYP 74330516

Bolt 5/16 x 24 x 1
(Superseded to 583612901)

$5.99

$

Usually ships in 3-10 days

0

146

Electrolux/AYP 74490536

Bolt Hex Flghd 5/16-18 x 2-1/4
(Superseded to 583613101)

$2.99

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 175456

Spacer
(Superseded to 532175456)

$

$

Not available

151

Electrolux/AYP 19133210

Washer 13/32 x 2 x 10 Ga.
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

156

Electrolux/AYP 166002

Washer Srrted 5/16 ID x 1.125
(Superseded to 532166002)

$6.49

$

Usually ships in 3-10 days

0

158

Electrolux/AYP 165589

Bracket Shift Mount
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 165494

Hub Tapered Flange Shift Lt
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Electrolux/AYP 72140406

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
(Superseded to 872140406)

$4.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 73680400

Nut Crownlock 1/4-20 Unc
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

163

Electrolux/AYP 74780416

Bolt Hex Fin 1/4-20unc x 1 Gr. 5
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

164

Electrolux/AYP 19091010

Washer 5/8 x .281 x 10 Ga.
(Superseded to 819091210)

$4.99

$

In Stock, only 1 left!

0

165

Electrolux/AYP 165623

Bracket Pivot Lever
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 166880

Screw 5/16-18 x 5/8
(Superseded to 532166880)

$6.49

$

Usually ships in 3-10 days

0

168

Electrolux/AYP 165492

Bolt Shoulder 5/16-18 x .561
(Superseded to 532165492)

$10.99

$

In Stock, only 3 left!

0

169

Electrolux/AYP 165580

Plate Fastening Lt
(Superseded to 532165580)

$6.99

$

Usually ships in 3-10 days

0

171

Electrolux/AYP 17490608

Screw Thdrol 3/8-16 x 1/2 Ty-Tt
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

189

Electrolux/AYP 160849

Washer Spacer Axle
(Superseded to 584322401)

$

$

Not available

197

Electrolux/AYP 169613

Nyliner Snap-In 5/8" Id
(Superseded to 532169613)

$7.49

$

In Stock, Qty 6

0

198

Electrolux/AYP 169593

Washer Nyl 7/8 Id x .105
(Superseded to 532169593)

$11.99

$

Usually ships in 3-10 days

0

202

UNKNOWN

$

$

Not available

230

Electrolux/AYP 10040500

Washer Lock Hvy HLCL SPR 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

270

Electrolux/AYP 74780510

Bolt Hex Head 5/16-18 x 5/8 Gr. 5

$

$

Not available
