WA GT 20H48ST A - Wizard Lawn Tractor (2003) Chassis And Enclosures Parts Diagram

Lawn Tractor

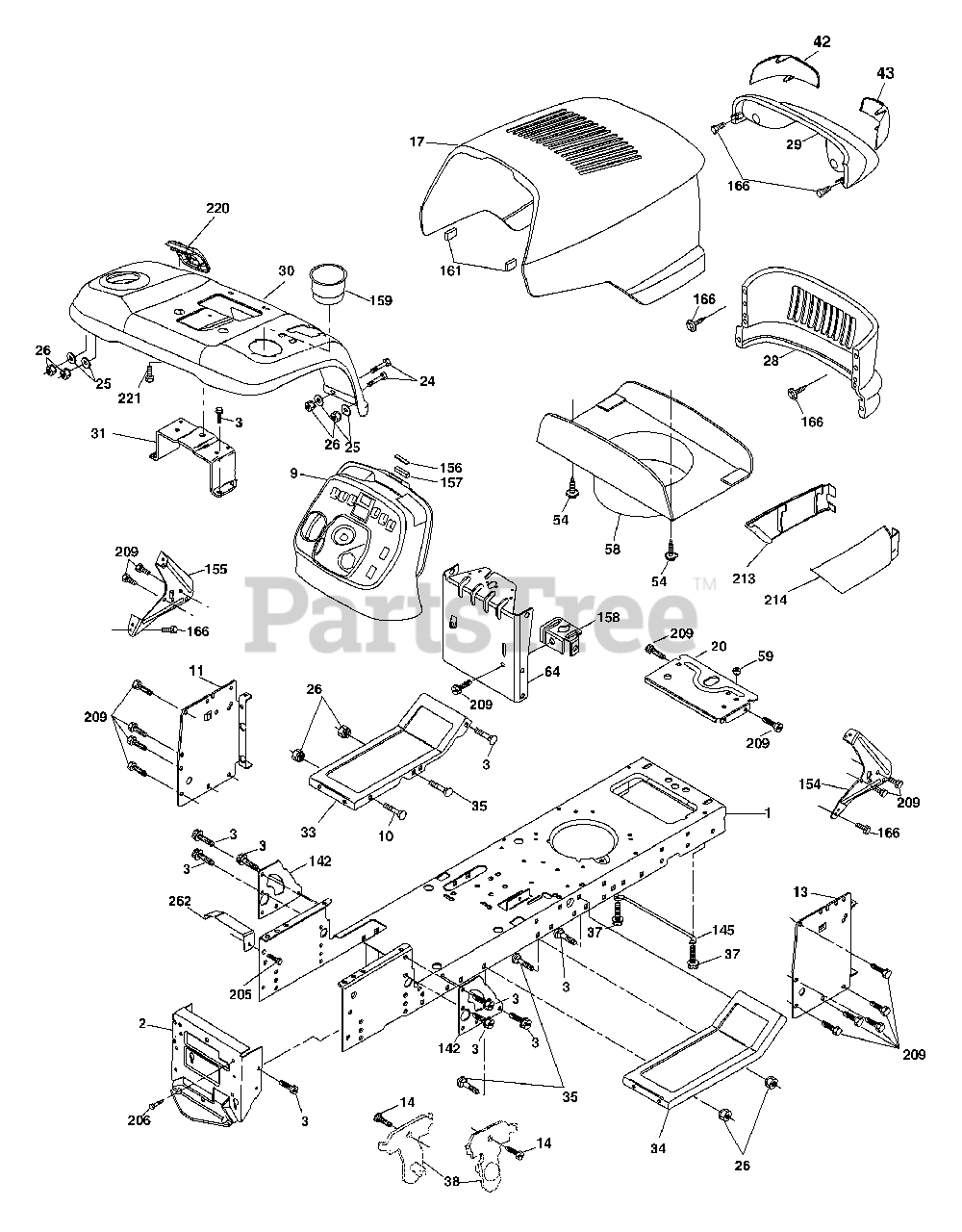

Chassis And Enclosures Parts Diagram

  • Title
1

Electrolux/AYP 174619

Chassis
(Superseded to 532174619)

$433.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 176554

Drawbar
(Superseded to 532176554)

$43.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 17060612

Screw 3/8-16x3/4
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 163976X428

Dash
(Superseded to 583716201)

$

$

Not available

10

UNKNOWN

$

$

Not available

11

Electrolux/AYP 167203

Panel Dash Lh
(Superseded to 532167203)

$24.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 178298

Panel Dash Rh
(Superseded to 532178298)

$

$

Not available

14

Electrolux/AYP 17490608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

$97.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 162026

Plate Battery
(Superseded to 532162026)

$

$

Not available

24

Electrolux/AYP 74780616

Bolt Fin Hex 3/8-16unc x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 73800600

Nut Lock Hex W/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 175289X428

Grille
(Superseded to 532187114)

$

$

Not available

29

Electrolux/AYP 179763

Light Box Asm W/Lens
(Superseded to 583125201)

$

$

Not available

30

Electrolux/AYP 179775X603

Fender
(Superseded to 583700901)

$103.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 183569

Bracket Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

33

$

$

Not available

34

$12.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 72110606

Bolt RDHD SHT SQNK 3/8-16 x 3/4
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490508

Screw Thdrol 6/16-18 x 1/2 TYT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 175710

Bracket, Asm. Pivot Mower Rear
(Superseded to 532175710)

$11.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 161841

Lens LH
(Superseded to 532161841)

$

$

Not available

43

Electrolux/AYP 161842

Lens RH
(Superseded to 532161842)

$

$

Not available

54

Electrolux/AYP 161464

Screw Hex Wshd 8-18 x 7/8
(Superseded to 532161464)

$

$

Not available

58

Electrolux/AYP 161236

Duct Hood
(Superseded to 583192101)

$34.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 177579

Bushing Snap
(Superseded to 532187495)

$6.49

$

In Stock, only 1 left!

0

64

Electrolux/AYP 174997

Dash Lower
(Superseded to 532174997)

$30.99

$

Usually ships in 3-10 days

0

142

Electrolux/AYP 175702

Plate Reinforcement STLT
(Superseded to 532175702)

$9.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

154

Electrolux/AYP 161897

Bracket Dash Rh
(Superseded to 532161897)

$7.49

$

Usually ships in 3-10 days

0

155

Electrolux/AYP 161900

Bracket Dash Lh
(Superseded to 532161900)

$7.49

$

Usually ships in 3-10 days

0

156

Electrolux/AYP 163805

Striker Plate

$

$

Not available

157

Electrolux/AYP 163806

Magnet Stealth

$

$

Not available

158

Electrolux/AYP 162037

Bracket Parking Brake
(Superseded to 532162037)

$

$

Not available

159

Electrolux/AYP 179125X428

Cupholder
(Superseded to 583710501)

$12.99

$

Usually ships in 3-10 days

0

161

Electrolux/AYP 164655

Extrusion Bumper
(Superseded to 532164655)

$8.99

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 171875

Screw Hw Hd Hi-Lo #13-16 x 3/4
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

205

Electrolux/AYP 17490608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

206

Electrolux/AYP 170165

Bolt Shoulder 5/16-18
(Superseded to 532170165)

$4.99

$

In Stock, Qty 7

0

209

Electrolux/AYP 17000612

Screw Hexwsh Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

213

Electrolux/AYP 169848X428

Skirt Grille Lh
(Superseded to 532187112)

$

$

Not available

214

Electrolux/AYP 169847X428

Skirt Grille Rh
(Superseded to 532187111)

$39.99

$

Usually ships in 3-10 days

0

220

Electrolux/AYP 179612X428

Console Fuel Window
(Superseded to 532181787)

$34.99

$

Usually ships in 3-10 days

0

221

UNKNOWN

$

$

Not available

262

Electrolux/AYP 183554

Bracket Support Tank
(Superseded to 532183554)

$85.99

$

Usually ships in 3-10 days

0
