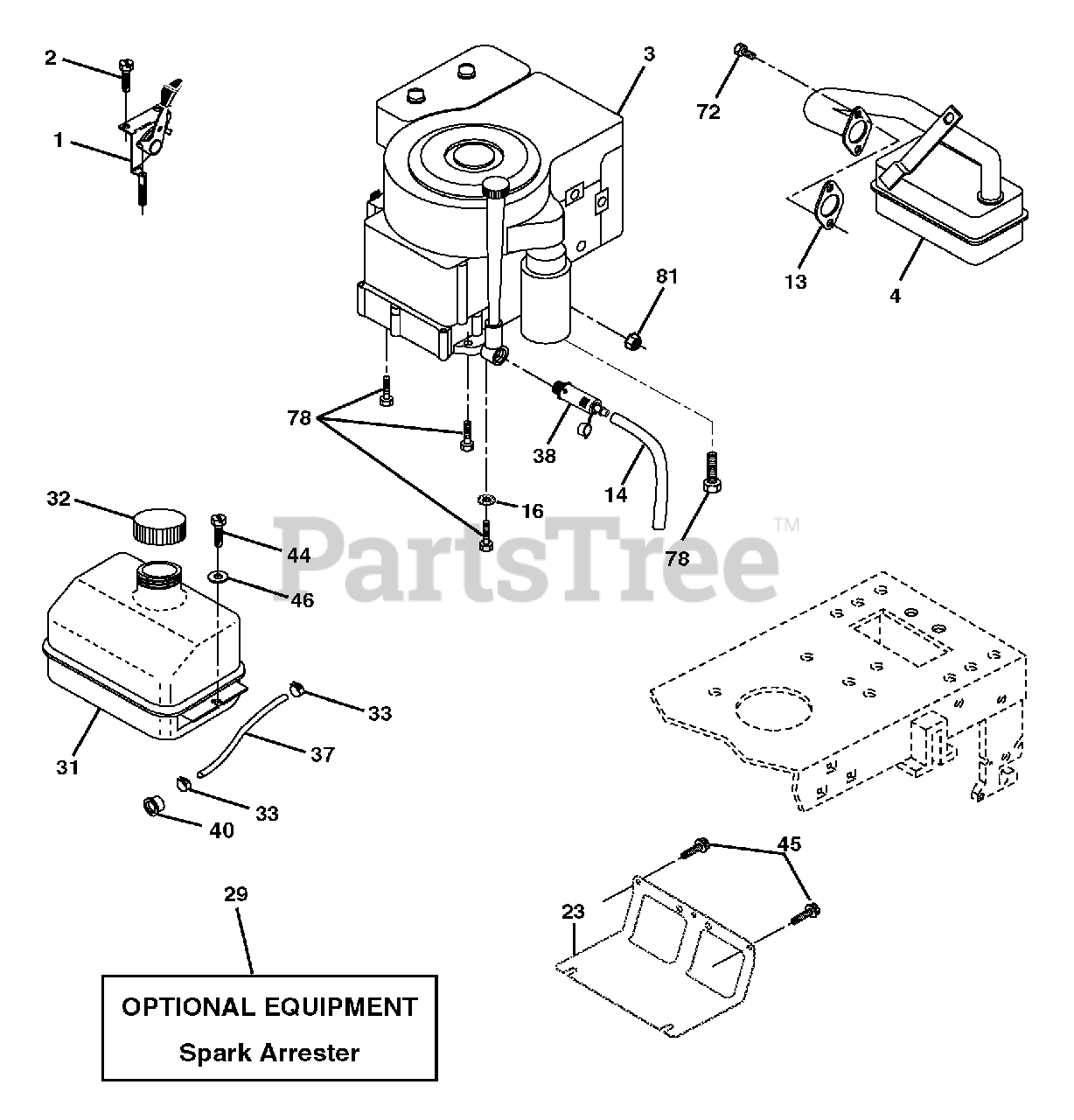

WA 1742ST A - Wizard Lawn Tractor (2003) Engine Parts Diagram

Lawn Tractor

Engine Parts Diagram

  • Title
1

Electrolux/AYP 170551

Control, Throttle
(Superseded to 532170551)

$37.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 17720408

Screw, Hex Head, Thread Cutting 1/4-20 x 5/8
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

3

Engine Briggs Model No. 31G777

Note: (Order parts from engine manufacturer)

$

$

Not available

4

Electrolux/AYP 137352

Muffler
(Superseded to 532137352)

$45.99

$

In Stock, only 3 left!

0

13

Electrolux/AYP 165291

Gasket
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 148456

Tube Drain Oil Easy
(Superseded to 532148456)

$6.99

$

In Stock, only 4 left!

0

16

Electrolux/AYP 11050600

Washer
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 169837

Shield Brn/Dbr Guard
(Superseded to 532169837)

$10.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 137180

Arrestor, Spark
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 109202X

Tank, Fuel
(Superseded to 532184900)

$45.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 140527

Cap Assembly Fuel
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

Clamp, Hose
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

37

Electrolux/AYP 137040

Line, Fuel
(Superseded to 532137040)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 181654

Plug, Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

40

Murray 124028X

Bushing Snap

$

$

Not available

44

Electrolux/AYP 17670412

Screw, Hex Washer Head, Thd., Roll. 1/4-20 x 3/4
(Superseded to 817670412)

$6.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 17000612

Screw Hex Wsh Thdr 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

46

Electrolux/AYP 19091416

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 10040500

Washer Lock Hvy HLCL Spr. 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 71070512

Screw Hex Hd Cap 5/16-18 x 3/4
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

78

Electrolux/AYP 17060620

Screw 3/8-16 x 1-1/4
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

81

Murray 73510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873640400)

$

$

Not available
