WA 1742ST A - Wizard Lawn Tractor (2003) Chassis And Enclosures Parts Diagram

Lawn Tractor

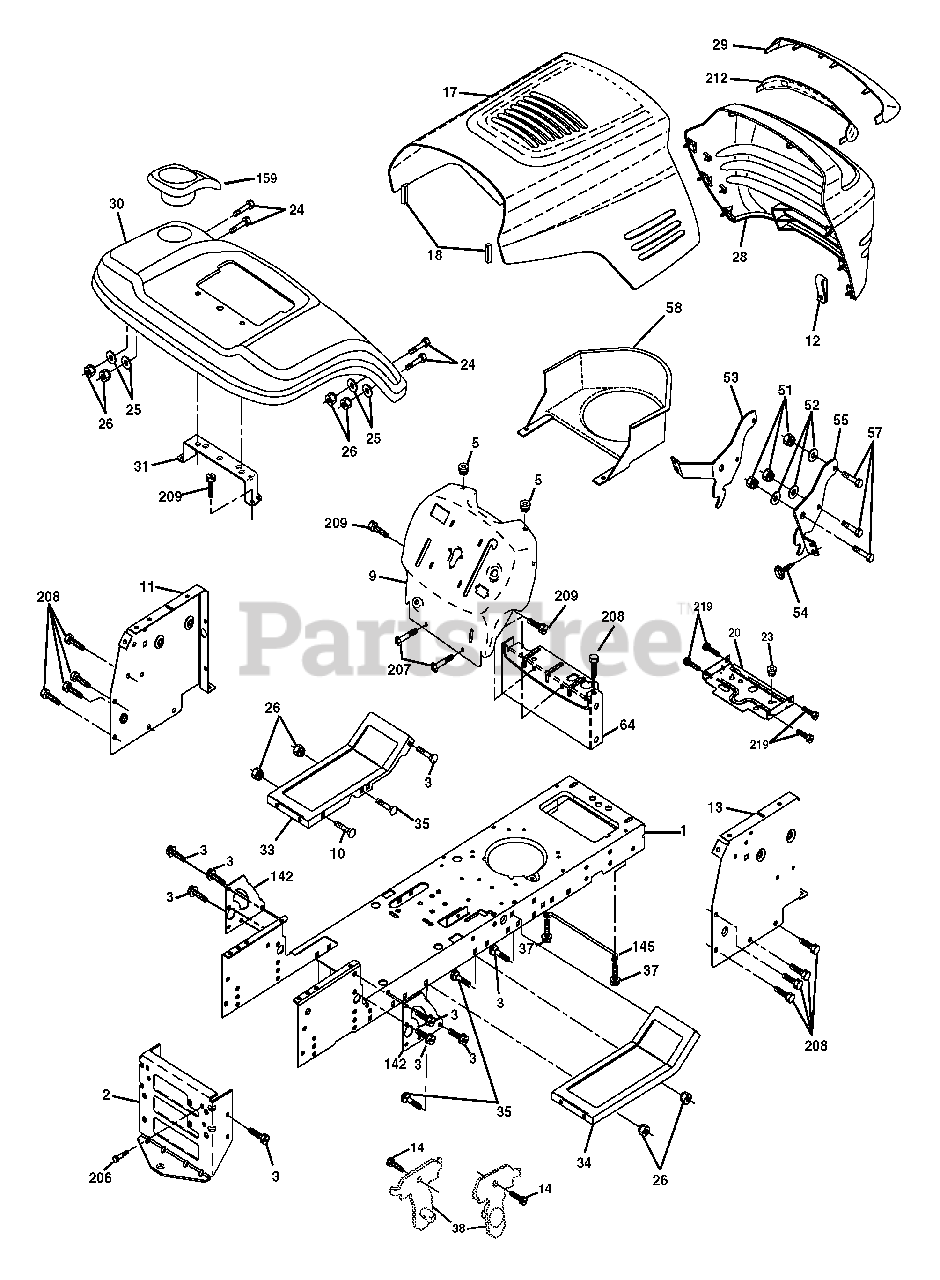

Chassis And Enclosures Parts Diagram

  • Title
1

Electrolux/AYP 174619

Chassis Stamping
(Superseded to 532174619)

$433.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 176554

Drawbar
(Superseded to 532176554)

$43.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 17060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 155272

Bumper Hood/Dash
(Superseded to 532155272)

$7.49

$

In Stock, only 3 left!

0

$

$

Not available

10

Murray 72140608

Bolt, Carriage 3/8-16 x 1

$

$

Not available

11

Electrolux/AYP 174996

Panel, Dash, L.H.
(Superseded to 532174996)

$

$

Not available

12

Electrolux/AYP 145660

Clip Tinnerman Grille
(Superseded to 532145660)

$3.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 172106

Panel, Dash, R.H.

$9.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 17490608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

17

$

$

Not available

18

UNKNOWN

$

$

Not available

20

UNKNOWN

$

$

Not available

23

UNKNOWN

$

$

Not available

24

Electrolux/AYP 74780616

Bolt 3/8-16 x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 73800600

Nut
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 178987X428

Grille Lens Asm

$

$

Not available

29

Electrolux/AYP 155217X599

Lens
(Superseded to 584460001)

$

$

Not available

$73.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 136619

Bracket, Fender Support
(Superseded to 532136619)

$

$

Not available

33

$

$

Not available

34

$12.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 72110606

Bolt 3/8-16 x 3/4
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490508

Screw Thdrol 5/16-18 x 1/2 Tyt
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 175710

Bracket Asm. Pivot Mower Rear
(Superseded to 532175710)

$11.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73800400

Nut Lock w/Insert 1/4-20 Unc
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 19091416

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 145201

Bracket Grille Pick-off LH
(Superseded to 584316401)

$

$

Not available

54

Electrolux/AYP 161464

Screw Hex Wshd. 8-18 x 7/8
(Superseded to 532161464)

$

$

Not available

55

Electrolux/AYP 145202

Bracket Grille Pick-off RH
(Superseded to 532145202)

$

$

Not available

57

Electrolux/AYP 74780412

Bolt fin Hex 1/4-20 Unc x .75
(Superseded to 874780412)

$

$

Not available

58

$

$

Not available

64

Electrolux/AYP 154798

Dash Lower STLT
(Superseded to 532154798)

$20.99

$

Usually ships in 3-10 days

0

142

Electrolux/AYP 175702

Plate Reinforcement STLT
(Superseded to 532175702)

$9.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 156524

Jod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

159

Electrolux/AYP 169473X428

Cupholder
(Superseded to 532169473)

$

$

Not available

206

Electrolux/AYP 170165

Bolt Shoulder 5/16 -18 TT
(Superseded to 532170165)

$4.99

$

In Stock, Qty 7

0

207

Electrolux/AYP 17670508

Screw Thdrol 5/16-18 x 1/2 TYTT
(Superseded to 817670508)

$9.49

$

In Stock, only 2 left!

0

208

Electrolux/AYP 17670608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817670608)

$6.49

$

Usually ships in 3-10 days

0

209

Electrolux/AYP 17000612

Screw Hexwsh Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

212

Electrolux/AYP 165919

Insert Lens Grille

$

$

Not available

219

UNKNOWN

$

$

Not available

257

Electrolux/AYP 184921

Bumper Hood
(Superseded to 532184921)

$7.49

$

In Stock, Qty 9

0

Electrolux/AYP 5479J

Plug, Button
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0
