W-995 (12A-995C790) - White Outdoor 21" Walk-Behind Mower (2006) Handle and Blade Parts Diagram

21" Walk-Behind Mower

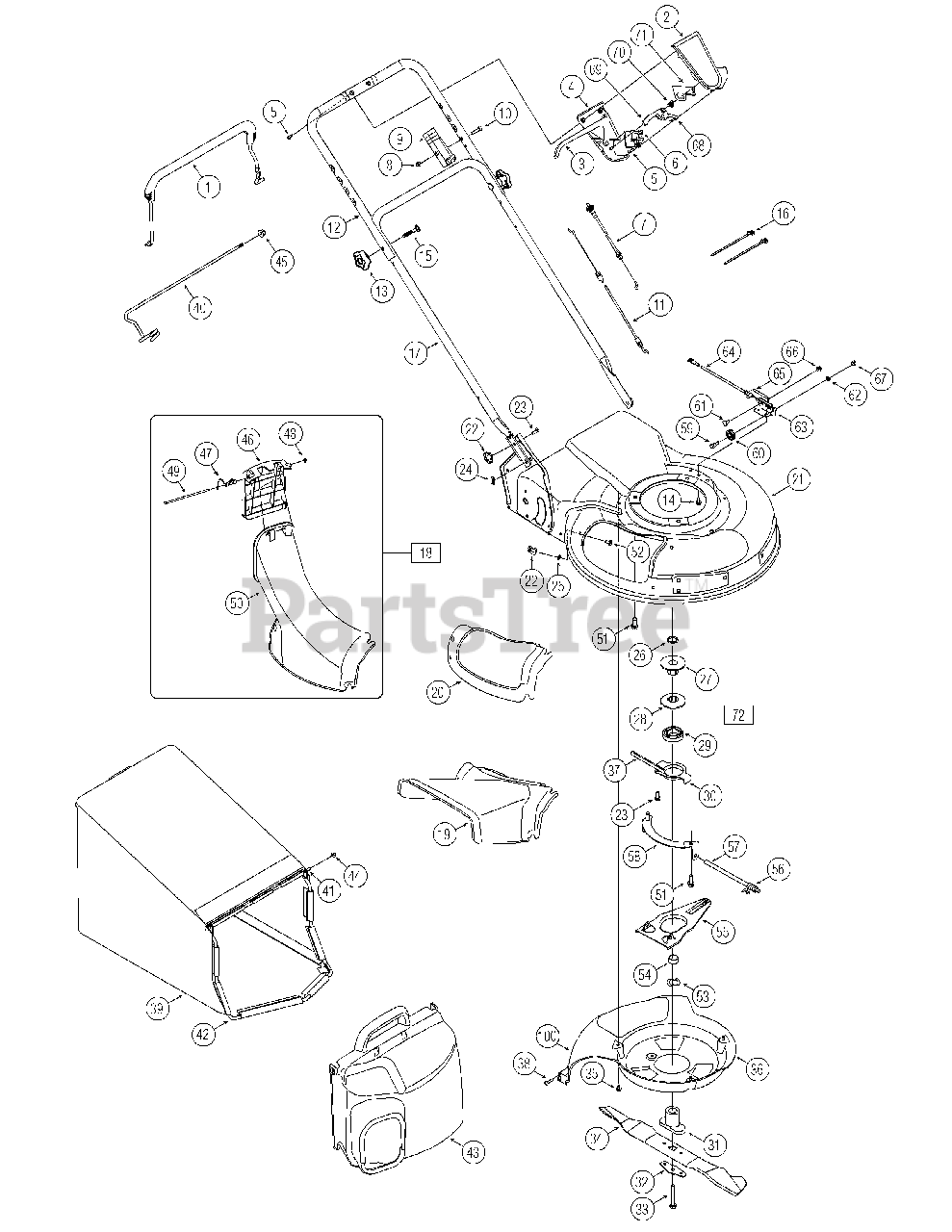

Handle and Blade Parts Diagram

  • Title

1

White Outdoor 747-0824

Blade Control
(Superseded to 747-0824B-0637)

Variations

White Outdoor 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

2

White Outdoor 731-0904A

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

3

White Outdoor 731-0620A

Drive Control

$15.99

$

In Stock, only 1 left!

0

4

White Outdoor 731-0905A

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

5

White Outdoor 710-1667A

C Sunk Tap Screw, #10

$4.49

$

In Stock, Qty 13

0

6

White Outdoor 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

7

White Outdoor 746-0711B

Drive Cable - 51"
(Superseded to 946-0711B)

$32.99

$

In Stock, only 1 left!

0

8

White Outdoor 712-0324

Top Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

9

White Outdoor 746-0883

Control Housing

$16.99

$

In Stock, only 3 left!

0

10

White Outdoor 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

11

White Outdoor 746-0555

Control Cable - 55"
(Superseded to 946-0555)

$26.99

$

In Stock, only 4 left!

0

12

White Outdoor 749-0439D

Upper Handle
(Superseded to 749-0439E-0637)

Variations

White Outdoor 749-0439D-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

13

White Outdoor 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

14

White Outdoor 710-1652

Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 710-1174

Carriage Bolt, 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

16

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 749-0907B

Lower Handle

Variations

White Outdoor 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

18

White Outdoor 631-0066

Adapter Assembly
(Superseded to 931-0066)

$115.99

$

Usually ships in 3-6 days

0

19

White Outdoor 731-1832

Side Discharge Chute

$

$

Not available

20

White Outdoor 731-1833A

Mulch Cover
(Superseded to 931-1833A)

$44.99

$

In Stock, only 1 left!

0

21

White Outdoor 782-0078B

Deck 21"

Variations

White Outdoor 782-0078B-0638

DECK-21" W/O ICON - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 782-0078B-0665

DECK-21" W/O ICON - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 782-0078B-0689

DECK-21" W/O ICON - POLO GREEN (0689)

$

$

Not available

White Outdoor 782-0078B-0716

DECK-21" W/O ICON - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 782-0078B-4015

DECK-21" W/O ICON - FIRE RED (4015)

$

$

Not available

White Outdoor 782-0078B-0606

DECK-21" W/O ICON - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 782-0078B-0629

DECK-21" W/O ICON - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 782-0078B-0650

DECK-21" W/O ICON - RED METALLIC (0650)

$

$

Not available

White Outdoor 782-0078B-0691

DECK-21" W/O ICON - BLACK JACK (0691)

$

$

Not available

White Outdoor 782-0078B-0729

DECK-21" W/O ICON - STORM GRAY (0729)

$

$

Not available

White Outdoor 782-0078B-4021

DECK-21" W/O ICON - CUB YELLOW 2 (4021)

$

$

Not available

White Outdoor 782-0078B-4028

DECK-21" W/O ICON - SEARS YELLOW (4028)

$

$

Not available

$

$

22

White Outdoor 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 710-0703

Carriage Bolt, 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 726-0233

Push Nut, .25 x ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 750-1071

Sleeve Spacer, .88 ID x 1.13 OD
(Superseded to 950-1071)

$4.49

$

In Stock, Qty 5

0

27

White Outdoor 756-0612A

Half Pulley: 2.62 OD

$16.99

$

Usually ships in 3-6 days

0

28

White Outdoor 756-0613

Half Pulley: 2.62 OD x 1.61

$17.99

$

Usually ships in 3-6 days

0

29

White Outdoor 741-0545

Ball Bearing

$19.99

$

Usually ships in 3-6 days

0

30

White Outdoor 682-7527

Cup

$29.99

$

Usually ships in 3-6 days

0

31

White Outdoor 748-0377C

Blade Adapter
(Superseded to 748-0377E)

$19.99

$

In Stock, only 3 left!

0

32

White Outdoor 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

33

White Outdoor 710-1257

Hex Bolt, 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

34

White Outdoor 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

35

White Outdoor 710-0653

Screw, 1/4-20 x 3.75

$4.49

$

In Stock, Qty 8

0

36

White Outdoor 731-1828

Baffle
(Superseded to 731-08190A)

$37.99

$

In Stock, only 1 left!

0

37

White Outdoor 754-0460

Belt, 3/8 x 39.24
(Superseded to 954-0460)

$19.99

$

In Stock, Qty 20+

0

38

White Outdoor 710-0969

HL Screw, #12-16 x 1.00

$4.49

$

In Stock, only 2 left!

0

39

White Outdoor 664-0076

Grass Catcher
(Superseded to 964-0076)

$98.99

$

Usually ships in 3-6 days

0

40

White Outdoor 747-0940A

Support Rod w/ Rope
(Superseded to 747-0940A-0637)

Variations

White Outdoor 747-0940A-0637

ROD SUPPORT GRASS - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

41

41 747-0939

Pivot Rod

$

$

Not available

42

White Outdoor 747-0937

Grass Catcher Frame
(Superseded to 747-0937-0637)

Variations

White Outdoor 747-0937-0637

Grass Catcher Bag Frame, Upper - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

43

White Outdoor 631-0071

Grass Catcher Cover

$103.99

$

Usually ships in 3-6 days

0

44

White Outdoor 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

45

White Outdoor 712-0429

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0

47

White Outdoor 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

48

White Outdoor 726-0111

Push Cap

$

$

Not available

49

White Outdoor 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

50

White Outdoor 731-1713B

Grass Catcher Adapter
(Superseded to 931-0066)

$115.99

$

Usually ships in 3-6 days

0

51

White Outdoor 710-0654A

Sems Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 736-0526

Wave Washer, 1.38 ID x .88 OD

$6.99

$

Usually ships in 3-6 days

0

54

White Outdoor 750-1070

Slve Spacer, .88 ID x 1.00 OD
(Superseded to 950-1070)

$5.99

$

In Stock, Qty 9

0

55

White Outdoor 782-7596A

Control Arm

Variations

White Outdoor 782-7596A-0637

CONTROL ARM 6 SPEED - POWDER BLACK (0637)

$

$

Not available

$

$

56

White Outdoor 732-0807

Torsion Spring
(Superseded to 932-0807)

$7.49

$

Usually ships in 3-6 days

0

57

White Outdoor 711-1114

Pivot Shaft

$12.99

$

Usually ships in 3-6 days

0

58

White Outdoor 782-7597

Pivot Bracket

Variations

White Outdoor 782-7597-0637

PIVOT BRACKET - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

59

White Outdoor 738-0924A

Shlder Screw, .375 ID x 1/4-14

$6.99

$

In Stock, Qty 5

0

60

White Outdoor 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

61

White Outdoor 710-0167

Carriage Screw, 1/4-20 x .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

62

White Outdoor 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

63

White Outdoor 782-7575A

Cable Mounting Bracket
(Superseded to 782-7575B-0637)

Variations

White Outdoor 782-7575A-0637

Cable Mounting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

64

White Outdoor 746-0939A

6 Speed Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

65

White Outdoor 782-7574A

Cable Adjustment Bracket
(Superseded to 782-7574A-0637)

Variations

White Outdoor 782-7574A-0637

Cable Adjusting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

66

White Outdoor 712-04064

Hex Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

67

White Outdoor 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

68

White Outdoor 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

69

White Outdoor 731-0924

6 Speed Shift Lever

$

$

Not available

70

White Outdoor 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

71

White Outdoor 16864

6 Spd. Rack Cable

$11.99

$

Usually ships in 3-6 days

0

72

White Outdoor 656-0613

Pulley Assembly
(Superseded to 956-0613A)

$72.99

$

In Stock, only 1 left!

0
