W-995 (12A-995C790) - White Outdoor 21" Walk-Behind Mower (2006) Drive Assembly Parts Diagram

21" Walk-Behind Mower

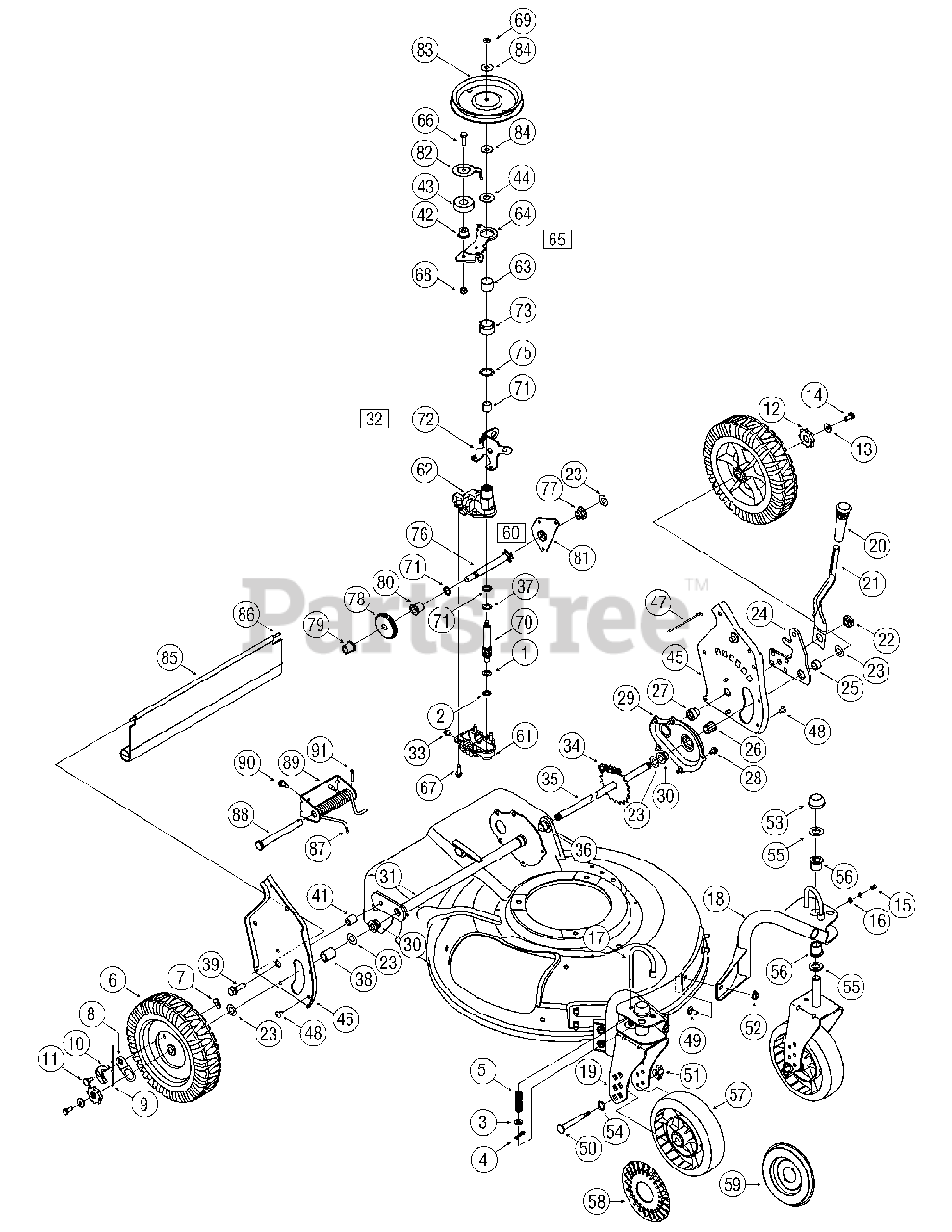

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 736-0314

Thrust Washer 3/8 x .70

$6.99

$

Usually ships in 3-6 days

0

2

White Outdoor 736-0569

Thrust Washer .388 x .625
(Superseded to 936-0569)

$

$

Not available

3

White Outdoor 736-0264

Flat Washer.330 ID x.630 OD

$6.99

$

In Stock, only 1 left!

0

4

White Outdoor 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

6

White Outdoor 734-2044

Wheel 9 x 2
(Superseded to 734-2044B)

$51.99

$

In Stock, only 2 left!

0

7

White Outdoor 712-0414

Top Lock Tab Weld Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 16855

Ratchet Pawl Plate

$6.49

$

In Stock, Qty 7

0

9

White Outdoor 10622B

Plastic Spring Ratchet

$5.49

$

In Stock, Qty 20+

0

10

White Outdoor 748-0381

Pawl RH

$11.99

$

Usually ships in 3-6 days

0

10

White Outdoor 748-0188B

Pawl LH
(Superseded to 948-0188B)

$

$

Not available

11

White Outdoor 738-0137A

Shlder Screw.340 ID x.285 OD

$10.99

$

In Stock, Qty 10

0

12

White Outdoor 748-0318

Wheel Ratchet
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 16

0

13

White Outdoor 736-0270

Bell Washer.265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 710-0751

Hex Cap Screw 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

16

White Outdoor 736-0931

Flat Washer.203 ID x.403 OD

$4.99

$

In Stock, only 1 left!

0

17

White Outdoor 747-0924

Wheel Pin Lock

$20.99

$

In Stock, only 1 left!

0

18

White Outdoor 682-9020A

Caster Assembly RH

Variations

White Outdoor 682-9020A-4028

CASTER ASSEMBLY-RH - SEARS YELLOW (4028)

$89.99

$

In Stock, only 1 left!

0

White Outdoor 682-9020A-0691

CASTER ASSEMBLY-RH - BLACK JACK (0691)

$97.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9020A-0629

CASTER ASSEMBLY-RH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 682-9020A-0665

CASTER ASSEMBLY-RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-9020A-0716

CASTER ASSEMBLY-RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-9020A-4021

CASTER ASSEMBLY-RH - CUB YELLOW 2 (4021)

$

$

Not available

White Outdoor 682-9020A-0606

CASTER ASSEMBLY-RH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 682-9020A-0638

CASTER ASSEMBLY-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-9020A-0650

CASTER ASSEMBLY-RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-9020A-0662

CASTER ASSEMBLY-RH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-9020A-0667

CASTER ASSEMBLY-RH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 682-9020A-0689

CASTER ASSEMBLY-RH - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-9020A-4015

CASTER ASSEMBLY-RH - FIRE RED (4015)

$

$

Not available

$97.99

$

Usually ships in 3-6 days

0

18

White Outdoor 682-9021A

Caster Assembly LH

Variations

White Outdoor 682-9021A-0716

CASTER ASSEMBLY-LH - CUB YELLOW-99 (0716)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-0691

CASTER ASSEMBLY-LH - BLACK JACK (0691)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-4021

CASTER ASSEMBLY-LH - CUB YELLOW 2 (4021)

$125.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-4028

CASTER ASSEMBLY-LH - SEARS YELLOW (4028)

$125.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-0606

CASTER ASSEMBLY-LH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 682-9021A-0638

CASTER ASSEMBLY-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-9021A-0662

CASTER ASSEMBLY-LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-9021A-0665

CASTER ASSEMBLY-LH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-9021A-0667

CASTER ASSEMBLY-LH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 682-9021A-0629

CASTER ASSEMBLY-LH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 682-9021A-0650

CASTER ASSEMBLY-LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-9021A-0689

CASTER ASSEMBLY-LH - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-9021A-4015

CASTER ASSEMBLY-LH - FIRE RED (4015)

$

$

Not available

$101.99

$

Usually ships in 3-6 days

0

19

White Outdoor 682-9024

Caster Bracket Assembly RH

Variations

White Outdoor 682-9024-0629

BRACKET CASTER - SILVER FLAKE (0629)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0638

Caster Bracket, RH - MTD/TROY-BILT RED (0638)

$81.99

$

In Stock, only 2 left!

0

White Outdoor 682-9024-0650

BRACKET CASTER - RED METALLIC (0650)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0662

BRACKET CASTER - OYSTER GRAY (0662)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0665

BRACKET CASTER - YARDMAN GREEN (0665)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0691

BRACKET CASTER-BLACK JACK - BLACK JACK (0691)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0716

BRACKET CASTER - CUB YELLOW-99 (0716)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-4021

Caster Bracket, RH - CUB YELLOW 2 (4021)

$81.99

$

In Stock, only 1 left!

0

White Outdoor 682-9024-4028

BRACKET CASTER - SEARS YELLOW (4028)

$76.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0606

BRACKET CASTER - MAJESTIC ORANGE (0606)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0667

BRACKET CASTER - MIDNIGHT BLUE (0667)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0689

BRACKET CASTER - POLO GREEN (0689)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-4015

BRACKET CASTER - FIRE RED (4015)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-4033

BRACKET CASTER - FLINT MICA (4033)

$76.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

19

White Outdoor 682-9026

Caster Bracket Assembly LH
(Superseded to 682-9026A)

Variations

White Outdoor 682-9026-0638

Caster Bracket, LH - MTD/TROY-BILT RED (0638)

$85.99

$

In Stock, only 3 left!

0

White Outdoor 682-9026-0650

Caster Bracket, LH - RED METALLIC (0650)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0662

BRACKET ASSY-WHEEL LH - OYSTER GRAY (0662)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0689

BRACKET ASSY-WHEEL LH - POLO GREEN (0689)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0691

BRACKET ASSY-WHEEL LH - BLACK JACK (0691)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0716

Caster Bracket, LH - CUB YELLOW-99 (0716)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-4021

Caster Bracket, LH - CUB YELLOW 2 (4021)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0665

BRACKET ASSY-WHEEL LH - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0667

BRACKET ASSY-WHEEL LH - MIDNIGHT BLUE (0667)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-4015

BRACKET ASSY-WHEEL LH - FIRE RED (4015)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-4028

BRACKET ASSY-WHEEL LH - SEARS YELLOW (4028)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-4033

BRACKET ASSY-WHEEL LH - FLINT MICA (4033)

$79.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

20

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

21

White Outdoor 732-0803A

Spring Lever

$15.99

$

In Stock, Qty 16

0

22

White Outdoor 738-0529

Shoulder Nut.825 x .165 Lg.
(Superseded to 938-0529)

$11.99

$

In Stock, only 2 left!

0

23

White Outdoor 736-0369

Flat Washer .508 ID x 1.0 OD

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 782-0566B

Pivot Arm Assembly
(Superseded to 782-0566B-0637)

Variations

White Outdoor 782-0566B-0637

Pivot Arm, Rear - POWDER BLACK (0637)

$44.99

$

In Stock, only 1 left!

0

$44.99

$

In Stock, only 1 left!

0

25

White Outdoor 750-0515

Spacer .510 ID x .70 OD

$4.49

$

In Stock, only 4 left!

0

26

White Outdoor 741-0978

Slv Bearing .504 ID x .830 OD

$4.99

$

In Stock, only 3 left!

0

27

White Outdoor 750-1056

Shlder Spacer, .385ID x .715Lg
(Superseded to 950-1056)

$7.49

$

Usually ships in 3-6 days

0

28

White Outdoor 710-0653

Tap Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

29

White Outdoor 682-7528

Chain Cover Assembly
(Superseded to 682-7528-0637)

Variations

White Outdoor 682-7528-0637

Chain Assembly Cover, Black - POWDER BLACK (0637)

$

$

Not available

$

$

30

White Outdoor 741-0324A

Flge Bearing .506 ID x .590 Lg

$7.99

$

In Stock, Qty 5

0

31

White Outdoor 682-7526

Transmission Axle Assembly
(Superseded to 682-7526-0637)

Variations

White Outdoor 682-7526-0637

AXLE CHAIN ASSEMBLY BLACK - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

32

White Outdoor 618-0263A

Transmission Ass’y Complete
(Superseded to 918-0263A)

$

$

Not available

33

White Outdoor 710-0604A

Hex Screw 5/16-18

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 713-0453

Chain
(Superseded to 913-0453)

$12.99

$

In Stock, only 1 left!

0

35

White Outdoor 638-0012

Rear Axle Assembly
(Superseded to 938-0012A)

$74.99

$

Usually ships in 3-6 days

0

36

White Outdoor 741-0522

Flge Bearing .506 ID x .715 Lg

$

$

Not available

37

White Outdoor 736-0570

Flat Washer .885 ID x 1.45 OD
(Superseded to 936-0570)

$5.99

$

Usually ships in 3-6 days

0

38

White Outdoor 750-0151

Spacer .550 ID x .750 OD
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

39

White Outdoor 710-1315

Screw 3/8-16 x .25

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 782-7601A

Cable Bracket
(Superseded to 782-7601A-0637)

Variations

White Outdoor 782-7601A-0637

BRACKET. CABLE GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

41

White Outdoor 750-0807

Spacer .385 ID x .624 OD

$6.49

$

Usually ships in 3-6 days

0

42

White Outdoor 750-1050

Flange Spacer

$5.49

$

Usually ships in 3-6 days

0

43

White Outdoor 741-0124

Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

44

White Outdoor 736-3084

Flat Washer .510 ID x 1.120 OD

$4.99

$

In Stock, Qty 20+

0

45

White Outdoor 682-3053

Handle Bracket Assembly - LH

Variations

White Outdoor 682-3053-0637

BRACKET HANDLE LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-3053-0650

BRACKET HANDLE LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-3053-0716

BRACKET HANDLE LH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-3053-0638

BRACKET HANDLE LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-3053-0662

BRACKET HANDLE LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-3053-0665

BRACKET HANDLE LH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-3053-0689

BRACKET HANDLE LH - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-3053-4015

BRACKET HANDLE LH - FIRE RED (4015)

$

$

Not available

$

$

46

White Outdoor 682-3052

Handle Bracket Assembly - RH

Variations

White Outdoor 682-3052-0637

BRACKET HANDLE RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-3052-0665

BRACKET HANDLE RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-3052-0716

BRACKET HANDLE RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-3052-0650

BRACKET HANDLE RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-3052-0662

BRACKET HANDLE RH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-3052-4015

BRACKET HANDLE RH - FIRE RED (4015)

$

$

Not available

$

$

47

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

48

White Outdoor 710-1348

Screw 1/4-14 x.500

$6.99

$

In Stock, only 3 left!

0

49

White Outdoor 710-0260A

Carriage Bolt 5/16-18 x.62

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 711-1146

Caster Axle
(Superseded to 911-1146)

$13.99

$

In Stock, Qty 11

0

51

White Outdoor 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

52

White Outdoor 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

53

White Outdoor 726-0214

Push Cap

$10.99

$

In Stock, only 4 left!

0

54

White Outdoor 736-0232

Wave Washer.531 ID x.781 OD

$4.99

$

In Stock, Qty 12

0

55

White Outdoor 736-0366

Flat Washer.640 ID x 1.12 OD

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 741-0685

Flange Bearing

$4.49

$

In Stock, Qty 20+

0

57

White Outdoor 734-1857

Wheel 7 x 2

$46.99

$

In Stock, Qty 8

0

58

White Outdoor 731-1887

Hubcap - Spoke w/ Hole

$11.99

$

Usually ships in 3-6 days

0

59

White Outdoor 731-0981A

Hubcap - Radial Spoke
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

60

White Outdoor 611-0066

Shaft Assembly
(Superseded to 911-0066)

$

$

Not available

61

White Outdoor 618-0252

Lower Housing Assembly
(Superseded to 918-0252)

$42.99

$

Usually ships in 3-6 days

0

62

White Outdoor 618-0253

Upper Housing Assembly

$

$

Not available

63

White Outdoor 750-1072

Spacer .915 x 1.125 x .762

$

$

Not available

64

White Outdoor 782-7600A

Idler Bracket

$

$

Not available

65

White Outdoor 682-0027A

Idler Bracket Assembly
(Superseded to 982-0027A)

$

$

Not available

66

White Outdoor 710-0299

Hex Cap Screw 1/4-28 x 1.0

$4.49

$

Usually ships in 3-6 days

0

67

White Outdoor 710-0642

Hex Screw 1/2-20 x .75

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 712-0896

Hex Jam Nut 1/4-28

$4.99

$

In Stock, Qty 6

0

69

White Outdoor 712-3025

Hex Jam Nut 5/16-24

$7.49

$

Usually ships in 3-6 days

0

70

White Outdoor 717-1487

Pinion Shaft 10T
(Superseded to 917-1487)

$68.99

$

Usually ships in 3-6 days

0

71

White Outdoor 721-0329

Oil Seal
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

72

White Outdoor 732-0849A

Extension Spring
(Superseded to 932-0849A)

$4.49

$

In Stock, only 1 left!

0

73

White Outdoor 741-0682A

Bearing Sleeve

$11.99

$

In Stock, only 1 left!

0

74

White Outdoor 741-0690

Bearing

$4.99

$

Usually ships in 3-6 days

0

75

White Outdoor 736-0616

Thrst Washer .504 ID x .70 OD
(Superseded to 936-0616)

$4.99

$

Usually ships in 3-6 days

0

76

White Outdoor 711-1168

Output Shaft 6T

$31.99

$

Usually ships in 3-6 days

0

77

White Outdoor 741-0324A

Flange Bearing

$7.99

$

In Stock, Qty 5

0

78

White Outdoor 717-1469

Gear 34T

$63.99

$

Usually ships in 3-6 days

0

79

White Outdoor 741-0674

Flange Bearing
(Superseded to 941-0674)

$8.99

$

Usually ships in 3-6 days

0

80

White Outdoor 741-0673

Flange Bearing
(Superseded to 941-0673)

$6.49

$

In Stock, only 2 left!

0

81

White Outdoor 782-7595

Pivot Bracket

$26.99

$

Usually ships in 3-6 days

0

82

White Outdoor 782-7598

Belt Keeper

$15.99

$

In Stock, only 1 left!

0

83

White Outdoor 756-0656

Pulley

$36.99

$

Usually ships in 3-6 days

0

84

White Outdoor 736-0425

Bell Washer .325 ID x .930 OD

$4.99

$

In Stock, Qty 13

0

85

White Outdoor 731-1901A

Trail Shield

$40.99

$

In Stock, only 2 left!

0

86

White Outdoor 732-0842

Trail Shield Wire

$6.49

$

In Stock, Qty 6

0

87

White Outdoor 732-0832

Torsion Spring

$19.99

$

Usually ships in 3-6 days

0

88

White Outdoor 711-0835

Clevis Pin .50 Dia x 4.82 Lg.
(Superseded to 911-0835)

$12.99

$

In Stock, only 3 left!

0

89

White Outdoor 782-0568

Height Adjustment Spring Brkt
(Superseded to 782-0568B-0637)

Variations

White Outdoor 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

90

White Outdoor 710-1652

Screw 1/4-14 x .825

$4.49

$

In Stock, Qty 20+

0

91

White Outdoor 714-0474

Cotter Pin

$4.99

$

In Stock, Qty 13

0
