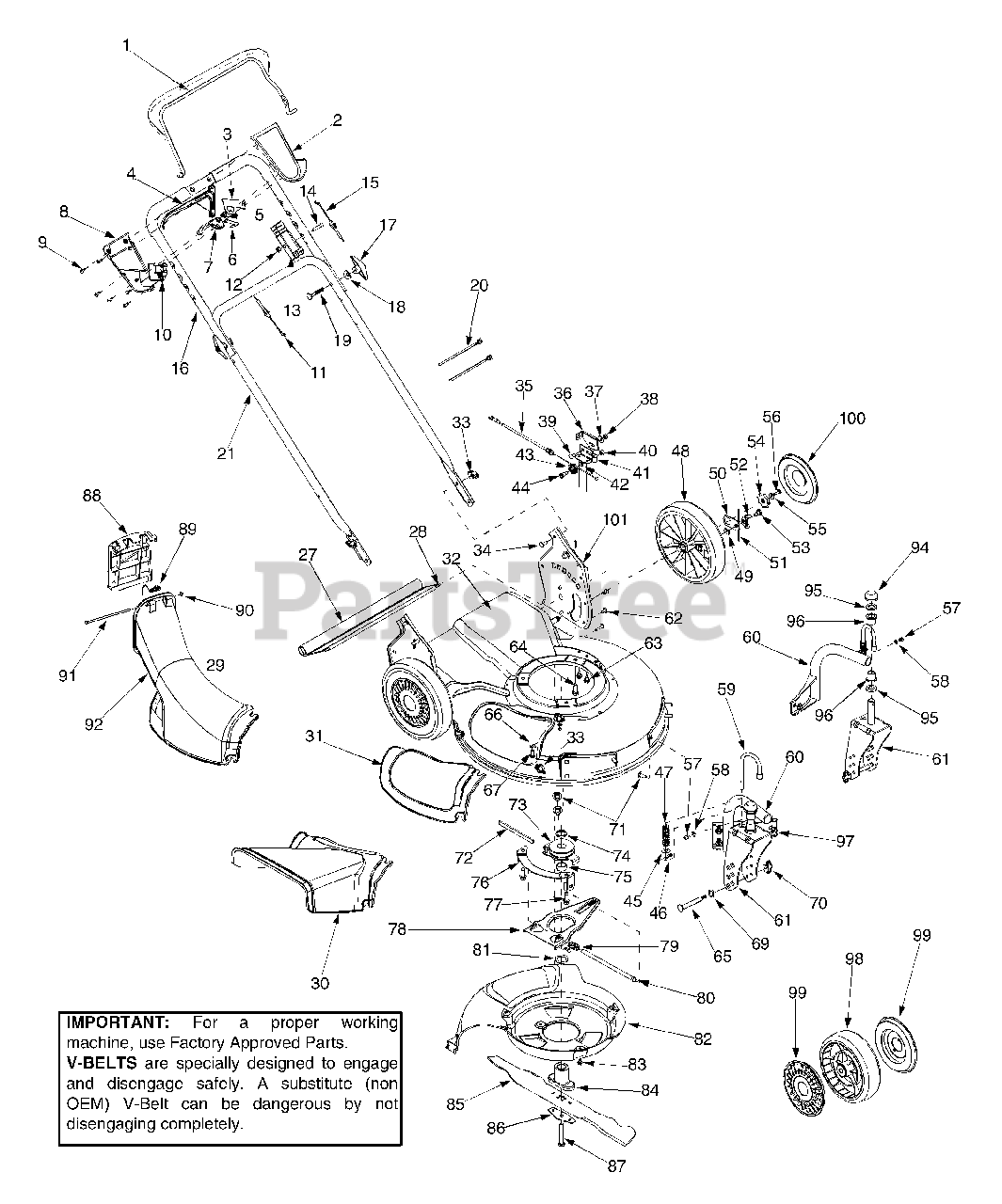

W-995 (12A-995C790) - White Outdoor 21" Walk-Behind Mower (2005) Handle & Wheels Parts Diagram

21" Walk-Behind Mower

Handle & Wheels Parts Diagram

  • Title

1

647-04046

Control Handle

$

$

Not available

2

White Outdoor 731-0904A

Upper Control Handle
(Superseded to 753-0717)

$

$

Not available

3

White Outdoor 16864

6 Sped. Rack Cable Bracket

$11.99

$

Usually ships in 3-6 days

0

4

White Outdoor 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

5

White Outdoor 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

6

White Outdoor 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

7

White Outdoor 731-0924

6 Speed Shift Lever

$

$

Not available

8

White Outdoor 731-0905A

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

9

White Outdoor 710-1667A

C Sunk Tap Screw #10 x.75 Leg

$4.49

$

In Stock, Qty 13

0

10

White Outdoor 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

11

White Outdoor 746-0711B

Drive Cable 51"
(Superseded to 946-0711B)

$32.99

$

Usually ships in 3-6 days

0

12

White Outdoor 712-0324

Top Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

13

White Outdoor 746-0883

Control Housing

$16.99

$

In Stock, only 4 left!

0

14

White Outdoor 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

15

White Outdoor 746-0555

Control Cable 55"
(Superseded to 946-0555)

$26.99

$

In Stock, only 4 left!

0

16

White Outdoor 749-0439D

Upper Handle
(Superseded to 749-0439E-0637)

Variations

White Outdoor 749-0439D-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

17

White Outdoor 720-0284

Wing Nut

$6.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-0451

Saddle Washer.320 ID x.830 OD

$4.49

$

Usually ships in 3-6 days

0

19

White Outdoor 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

20

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

21

White Outdoor 749-0907B

Lower Handle

Variations

White Outdoor 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

27

White Outdoor 731-1901A

Trail Shield

$40.99

$

In Stock, only 2 left!

0

28

White Outdoor 732-0842

Trail Shield Wire

$6.49

$

In Stock, Qty 6

0

29

White Outdoor 631-0066

Chute Assembly
(Superseded to 931-0066)

$115.99

$

Usually ships in 3-6 days

0

30

White Outdoor 731-1832

Side-Discharge Chute

$

$

Not available

31

White Outdoor 731-1833A

Mulch Cover
(Superseded to 931-1833A)

$44.99

$

In Stock, only 1 left!

0

32

White Outdoor 782-0078B

Deck 21"

Variations

White Outdoor 782-0078B-0638

DECK-21" W/O ICON - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 782-0078B-0665

DECK-21" W/O ICON - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 782-0078B-0689

DECK-21" W/O ICON - POLO GREEN (0689)

$

$

Not available

White Outdoor 782-0078B-0716

DECK-21" W/O ICON - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 782-0078B-4015

DECK-21" W/O ICON - FIRE RED (4015)

$

$

Not available

White Outdoor 782-0078B-0606

DECK-21" W/O ICON - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 782-0078B-0629

DECK-21" W/O ICON - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 782-0078B-0650

DECK-21" W/O ICON - RED METALLIC (0650)

$

$

Not available

White Outdoor 782-0078B-0691

DECK-21" W/O ICON - BLACK JACK (0691)

$

$

Not available

White Outdoor 782-0078B-0729

DECK-21" W/O ICON - STORM GRAY (0729)

$

$

Not available

White Outdoor 782-0078B-4021

DECK-21" W/O ICON - CUB YELLOW 2 (4021)

$

$

Not available

White Outdoor 782-0078B-4028

DECK-21" W/O ICON - SEARS YELLOW (4028)

$

$

Not available

$

$

33

White Outdoor 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 710-0703

Carriage Bolt 1/4-20 x.75

$4.49

$

In Stock, Qty 15

0

35

White Outdoor 746-0939A

6 Speed Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

36

White Outdoor 782-7574A

Cable Adjustment Bracket
(Superseded to 782-7574A-0637)

Variations

White Outdoor 782-7574A-0637

Cable Adjusting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

37

White Outdoor 736-0270

Bell Washer.265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

38

White Outdoor 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 19

0

39

White Outdoor 710-0167

Carriage Screw 1/4-20 x.50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

40

White Outdoor 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

41

White Outdoor 782-7575A

Cable Mounting Bracket
(Superseded to 782-7575B-0637)

Variations

White Outdoor 782-7575A-0637

Cable Mounting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

42

White Outdoor 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

43

White Outdoor 756-0625

Roller Cable

$9.49

$

In Stock, Qty 16

0

44

White Outdoor 738-0924

Shoulder Screw.375 ID x 1/4-14
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

45

White Outdoor 736-0264

Flat Washer.330 ID x.630 OD

$6.99

$

In Stock, only 1 left!

0

46

White Outdoor 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

47

White Outdoor 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

48

White Outdoor 734-2044

Wheel 9 x 2
(Superseded to 734-2044B)

$51.99

$

In Stock, only 2 left!

0

49

White Outdoor 712-0414

Top Lock Tab Weld Nut 1/4-20

$4.49

$

In Stock, only 4 left!

0

50

White Outdoor 16855

Ratchet Pawl Plate

$6.49

$

In Stock, Qty 6

0

51

White Outdoor 10622B

Plastic Spring Ratchet

$5.49

$

In Stock, Qty 20+

0

52

White Outdoor 748-0381

Pawl RH

$11.99

$

In Stock, only 1 left!

0

White Outdoor 748-0188B

Pawl LH
(Superseded to 948-0188B)

$11.99

$

Usually ships in 3-6 days

0

53

White Outdoor 738-0137A

Sold Screw.340 ID x.285 OD

$10.99

$

In Stock, Qty 10

0

54

White Outdoor 748-0318

Wheel Ratchet
(Superseded to 948-0318)

$10.99

$

In Stock, only 2 left!

0

55

White Outdoor 736-0270

Bell Washer.265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

56

White Outdoor 710-0751

Hex Cap Screw 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

57

White Outdoor 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

58

White Outdoor 736-0931

Flat Washer.203 ID x.403 OD

$4.99

$

In Stock, only 1 left!

0

59

White Outdoor 747-0924

Wheel Pin Lock

$20.99

$

In Stock, only 1 left!

0

60

White Outdoor 682-9020A

Caster Assembly RH

Variations

White Outdoor 682-9020A-4028

CASTER ASSEMBLY-RH - SEARS YELLOW (4028)

$89.99

$

In Stock, only 1 left!

0

White Outdoor 682-9020A-0691

CASTER ASSEMBLY-RH - BLACK JACK (0691)

$97.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9020A-0629

CASTER ASSEMBLY-RH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 682-9020A-0665

CASTER ASSEMBLY-RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-9020A-0716

CASTER ASSEMBLY-RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-9020A-4021

CASTER ASSEMBLY-RH - CUB YELLOW 2 (4021)

$

$

Not available

White Outdoor 682-9020A-0606

CASTER ASSEMBLY-RH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 682-9020A-0638

CASTER ASSEMBLY-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-9020A-0650

CASTER ASSEMBLY-RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-9020A-0662

CASTER ASSEMBLY-RH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-9020A-0667

CASTER ASSEMBLY-RH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 682-9020A-0689

CASTER ASSEMBLY-RH - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-9020A-4015

CASTER ASSEMBLY-RH - FIRE RED (4015)

$

$

Not available

$97.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A

Caster Assembly LH

Variations

White Outdoor 682-9021A-0716

CASTER ASSEMBLY-LH - CUB YELLOW-99 (0716)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-0691

CASTER ASSEMBLY-LH - BLACK JACK (0691)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-4021

CASTER ASSEMBLY-LH - CUB YELLOW 2 (4021)

$125.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-4028

CASTER ASSEMBLY-LH - SEARS YELLOW (4028)

$125.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-0606

CASTER ASSEMBLY-LH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 682-9021A-0638

CASTER ASSEMBLY-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-9021A-0662

CASTER ASSEMBLY-LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-9021A-0665

CASTER ASSEMBLY-LH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-9021A-0667

CASTER ASSEMBLY-LH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 682-9021A-0629

CASTER ASSEMBLY-LH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 682-9021A-0650

CASTER ASSEMBLY-LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-9021A-0689

CASTER ASSEMBLY-LH - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-9021A-4015

CASTER ASSEMBLY-LH - FIRE RED (4015)

$

$

Not available

$101.99

$

Usually ships in 3-6 days

0

61

White Outdoor 682-9024

Caster Bracket Assembly RH

Variations

White Outdoor 682-9024-0629

BRACKET CASTER - SILVER FLAKE (0629)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0638

Caster Bracket, RH - MTD/TROY-BILT RED (0638)

$81.99

$

In Stock, only 2 left!

0

White Outdoor 682-9024-0650

BRACKET CASTER - RED METALLIC (0650)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0662

BRACKET CASTER - OYSTER GRAY (0662)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0665

BRACKET CASTER - YARDMAN GREEN (0665)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0691

BRACKET CASTER-BLACK JACK - BLACK JACK (0691)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0716

BRACKET CASTER - CUB YELLOW-99 (0716)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-4021

Caster Bracket, RH - CUB YELLOW 2 (4021)

$81.99

$

In Stock, only 1 left!

0

White Outdoor 682-9024-4028

BRACKET CASTER - SEARS YELLOW (4028)

$76.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0606

BRACKET CASTER - MAJESTIC ORANGE (0606)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0667

BRACKET CASTER - MIDNIGHT BLUE (0667)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0689

BRACKET CASTER - POLO GREEN (0689)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-4015

BRACKET CASTER - FIRE RED (4015)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-4033

BRACKET CASTER - FLINT MICA (4033)

$76.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026

Caster Bracket Assembly LH
(Superseded to 682-9026A)

Variations

White Outdoor 682-9026-0638

Caster Bracket, LH - MTD/TROY-BILT RED (0638)

$85.99

$

In Stock, only 3 left!

0

White Outdoor 682-9026-0650

Caster Bracket, LH - RED METALLIC (0650)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0662

BRACKET ASSY-WHEEL LH - OYSTER GRAY (0662)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0689

BRACKET ASSY-WHEEL LH - POLO GREEN (0689)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0691

BRACKET ASSY-WHEEL LH - BLACK JACK (0691)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0716

Caster Bracket, LH - CUB YELLOW-99 (0716)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-4021

Caster Bracket, LH - CUB YELLOW 2 (4021)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0665

BRACKET ASSY-WHEEL LH - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0667

BRACKET ASSY-WHEEL LH - MIDNIGHT BLUE (0667)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-4015

BRACKET ASSY-WHEEL LH - FIRE RED (4015)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-4028

BRACKET ASSY-WHEEL LH - SEARS YELLOW (4028)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-4033

BRACKET ASSY-WHEEL LH - FLINT MICA (4033)

$79.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

62

White Outdoor 710-1348

Screw 1/4-14 x.500

$6.99

$

In Stock, only 3 left!

0

63

White Outdoor 710-1652

Screw 1/4-14 x.625

$4.49

$

In Stock, Qty 20+

0

64

White Outdoor 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

65

White Outdoor 711-1146

Caster Axle
(Superseded to 911-1146)

$13.99

$

In Stock, Qty 11

0

66

White Outdoor 736-0204

Flat Washer.344 ID x.62 OD

$4.49

$

In Stock, Qty 7

0

67

White Outdoor 710-0703

Carriage Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 15

0

68

White Outdoor 710-1242

Torts Screw

$4.99

$

In Stock, Qty 19

0

69

White Outdoor 736-0232

Wave Washer.531 ID x.781 OD

$4.99

$

In Stock, Qty 12

0

70

White Outdoor 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

71

White Outdoor 710-0260A

Carriage Bolt 5/16-18 x.62

$4.49

$

In Stock, Qty 20+

0

72

White Outdoor 754-0460

Belt 3/8 x 39.24
(Superseded to 954-0460)

$19.99

$

Usually ships in 3-6 days

0

73

White Outdoor 656-0613

Pulley Assembly
(Superseded to 956-0613A)

$72.99

$

In Stock, only 1 left!

0

74

White Outdoor 750-1071

Sleeve Spacer.88 ID x 1.13 OD
(Superseded to 950-1071)

$4.49

$

In Stock, Qty 5

0

75

White Outdoor 750-1070

Sleeve Spacer.88 ID x 1.00 OD
(Superseded to 950-1070)

$5.99

$

In Stock, Qty 9

0

76

White Outdoor 782-7597

Pivot Bracket

Variations

White Outdoor 782-7597-0637

PIVOT BRACKET - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

77

White Outdoor 710-0654A

Screw 3/8-18 x 1.0

$4.49

$

In Stock, only 3 left!

0

78

White Outdoor 782-7596

Control Arm
(Superseded to 782-7596A)

Variations

White Outdoor 782-7596-0637

CONTROL ARM 6 SPEED - POWDER BLACK (0637)

$

$

Not available

$

$

79

White Outdoor 732-0807

Torsion Spring
(Superseded to 932-0807)

$7.49

$

Usually ships in 3-6 days

0

80

White Outdoor 711-1114

Pivot Shaft

$12.99

$

Usually ships in 3-6 days

0

81

White Outdoor 736-0526

Wave Washer 1.38 ID x.88 OD

$6.99

$

Usually ships in 3-6 days

0

82

White Outdoor 731-1828

Baffle
(Superseded to 731-08190A)

$37.99

$

Usually ships in 3-6 days

0

83

White Outdoor 710-0653

Screw 1/4-20 x 3.75

$4.49

$

In Stock, Qty 13

0

84

White Outdoor 748-0377C

Blade Adapter Kit
(Superseded to 748-0377E)

$19.99

$

In Stock, only 3 left!

0

85

White Outdoor 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

86

White Outdoor 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 17

0

87

White Outdoor 710-1257

Hex Bolt 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

88

White Outdoor 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0

89

White Outdoor 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

90

White Outdoor 726-0111

Push Cap

$

$

Not available

91

White Outdoor 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

92

White Outdoor 731-1713B

Discharge Chute
(Superseded to 931-0066)

$115.99

$

Usually ships in 3-6 days

0

94

White Outdoor 726-0214

Push Cap

$10.99

$

Usually ships in 3-6 days

0

95

White Outdoor 736-0366

Flat Washer.640 ID x 1.12 OD

$4.49

$

In Stock, only 2 left!

0

96

White Outdoor 741-0685

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

97

White Outdoor 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

98

White Outdoor 734-1857

Wheel 7 x 2

$46.99

$

In Stock, Qty 7

0

99

White Outdoor 731-1887

Hubcap - Spoke w/ Hole

$11.99

$

Usually ships in 3-6 days

0

100

White Outdoor 731-0981A

Hubcap - Radial Spoke
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

101

White Outdoor 682-3052

Handle Bracket Assembly - RH

Variations

White Outdoor 682-3052-0637

BRACKET HANDLE RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-3052-0665

BRACKET HANDLE RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-3052-0716

BRACKET HANDLE RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-3052-0650

BRACKET HANDLE RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-3052-0662

BRACKET HANDLE RH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-3052-4015

BRACKET HANDLE RH - FIRE RED (4015)

$

$

Not available

$

$

White Outdoor 682-3053

Handle Bracket Assembly - LH

Variations

White Outdoor 682-3053-0637

BRACKET HANDLE LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-3053-0650

BRACKET HANDLE LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-3053-0716

BRACKET HANDLE LH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-3053-0638

BRACKET HANDLE LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-3053-0662

BRACKET HANDLE LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-3053-0665

BRACKET HANDLE LH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-3053-0689

BRACKET HANDLE LH - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-3053-4015

BRACKET HANDLE LH - FIRE RED (4015)

$

$

Not available

$

$

102

White Outdoor 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 19

0
