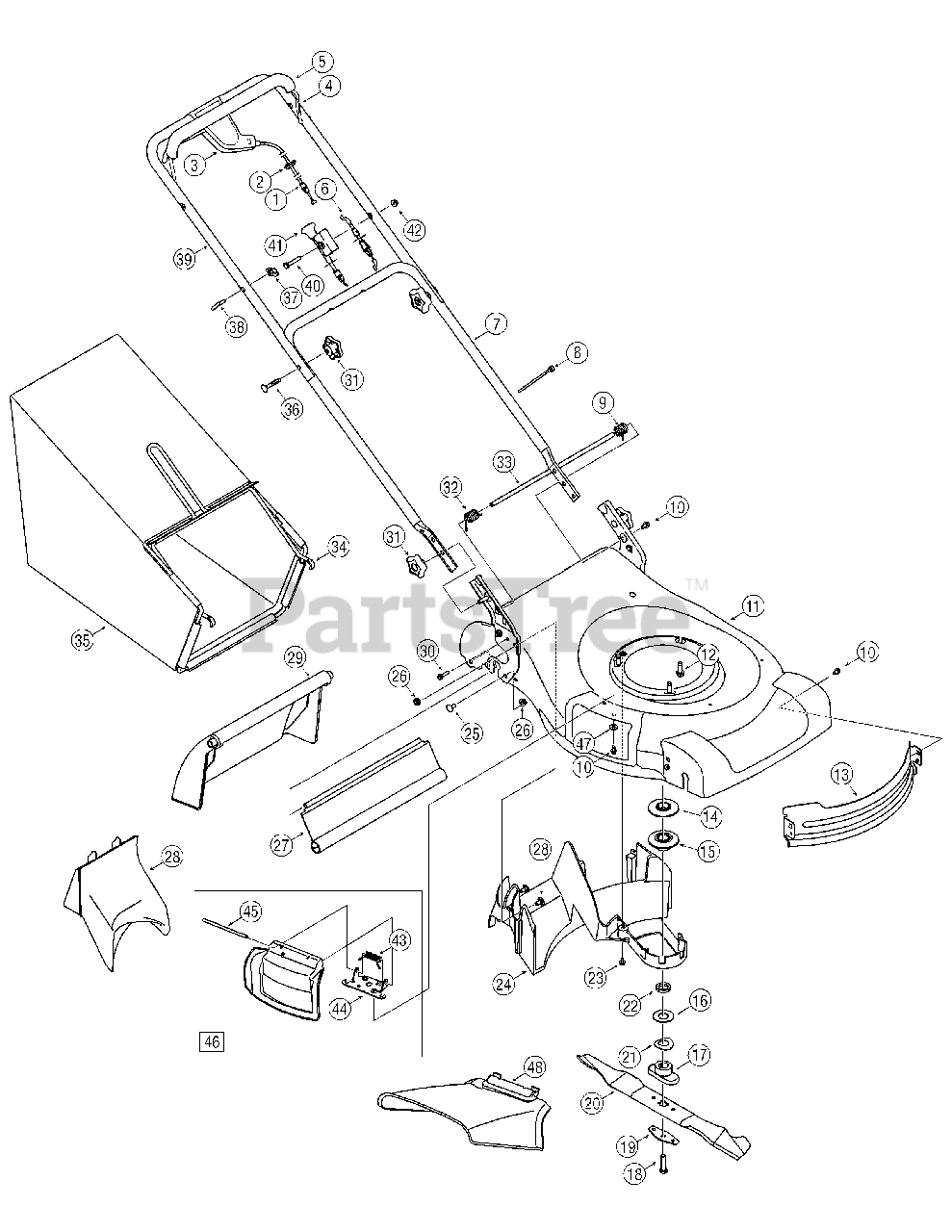

W-83 MC (12AV83MC790) - White Outdoor 21" Walk-Behind Mower (2006) General Assembly Parts Diagram

21" Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

White Outdoor 746-04265

Drive Control Cable
(Superseded to 946-04265A)

$40.99

$

In Stock, only 3 left!

0

2

White Outdoor 735-04059

Rubber Grommet

$4.99

$

In Stock, Qty 11

0

3

White Outdoor 753-05096A

Drive Control Assembly
(Superseded to 753-06060A)

$27.99

$

Usually ships in 3-6 days

0

3

White Outdoor 731-05388

Speed Control Lever
(Superseded to 731-05873)

Note: Not shown

$12.99

$

Usually ships in 3-6 days

0

4

White Outdoor 747-1161A

Blade Control

Variations

White Outdoor 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 2 left!

0

5

White Outdoor 731-04859

Bail Cover

$11.99

$

Usually ships in 3-6 days

0

6

White Outdoor 746-04300

ERS Control Cable
(Superseded to 946-04300)

$34.99

$

In Stock, only 1 left!

0

7

White Outdoor 749-04037

Lower Handle

Variations

White Outdoor 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

8

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 732-04265

Torsion Spring, LH

$10.99

$

Usually ships in 3-6 days

0

10

White Outdoor 710-0599

TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 787-01341

21-inch Deck
(Superseded to 787-01591)

Variations

White Outdoor 787-01341-0638

DECK:RD:21" W/DIS - MTD/TROY-BILT RED (0638)

$

$

Not available

$160.99

$

Usually ships in 3-6 days

0

12

White Outdoor 710-0654A

TT Screw, 3/8-16 x 1.00

$4.49

$

In Stock, only 4 left!

0

13

White Outdoor 753-06213

Deck Baffle
(Superseded to 753-06213B)

Note: Replaces 787-01346

$

$

Not available

14

White Outdoor 756-04157B

Upper Engine Pulley
(Superseded to 956-04157B)

$17.99

$

In Stock, only 1 left!

0

15

White Outdoor 756-04156B

Lower Engine Pulley
(Superseded to 956-04156B)

$

$

Not available

16

White Outdoor 736-0514

Flat Washer, .885 x 1.850 x .060

$

$

Not available

17

White Outdoor 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

18

White Outdoor 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, only 1 left!

0

19

White Outdoor 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

20

White Outdoor 742-0741

21-inch Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

21

White Outdoor 736-0513

Spring Washer, .890 x 1.70
(Superseded to 936-0513)

$

$

Not available

22

White Outdoor 750-1071

Sleeve Spacer
(Superseded to 950-1071)

$4.49

$

In Stock, Qty 5

0

23

White Outdoor 710-0653

TT Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

24

White Outdoor 731-05463

Deck Baffle
(Superseded to 731-05463A)

$

$

Not available

25

White Outdoor 710-0260A

Carriage Bolt, 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

27

White Outdoor 731-05462

Trail shield
(Superseded to 731-05462A)

$22.99

$

In Stock, only 1 left!

0

28

White Outdoor 731-05157

Mulch Plug

$32.99

$

In Stock, only 3 left!

0

29

White Outdoor 731-05017A

Rear Door
(Superseded to 931-05017A)

$

$

Not available

30

White Outdoor 710-1241

Screw, 1/4-15 x 1.00

$6.99

$

In Stock, Qty 18

0

31

White Outdoor 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

32

White Outdoor 732-04264

Torsion Spring, RH

$10.99

$

In Stock, only 1 left!

0

33

White Outdoor 711-04374

Door Pivot Rod

$33.99

$

Usually ships in 3-6 days

0

34

White Outdoor 647-04051

Grass Catcher Frame
(Superseded to 647-04051B-0637)

Variations

White Outdoor 647-04051-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$

$

Not available

$

$

35

White Outdoor 664-04052

Grass Catcher
(Superseded to 664-04052A)

$97.99

$

Usually ships in 3-6 days

0

36

White Outdoor 710-1174

Carriage Bolt, 5/16-18 x 2.00

$7.49

$

In Stock, Qty 20+

0

37

White Outdoor 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

39

White Outdoor 749-04206

Upper Handle

Variations

White Outdoor 749-04206-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

40

White Outdoor 710-0606

Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

41

White Outdoor 746-04296

Choke Control Cable
(Superseded to 746-04296A)

$

$

Not available

42

White Outdoor 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

44

White Outdoor 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

45

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 987-02055

Mulch Plug Assembly

$27.99

$

In Stock, Qty 10

0

47

White Outdoor 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

48

White Outdoor 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0
