W-83 MC (12AV83MC790) - White Outdoor 21" Walk-Behind Mower (2006) Engine 1P70FU Parts Diagram

21" Walk-Behind Mower

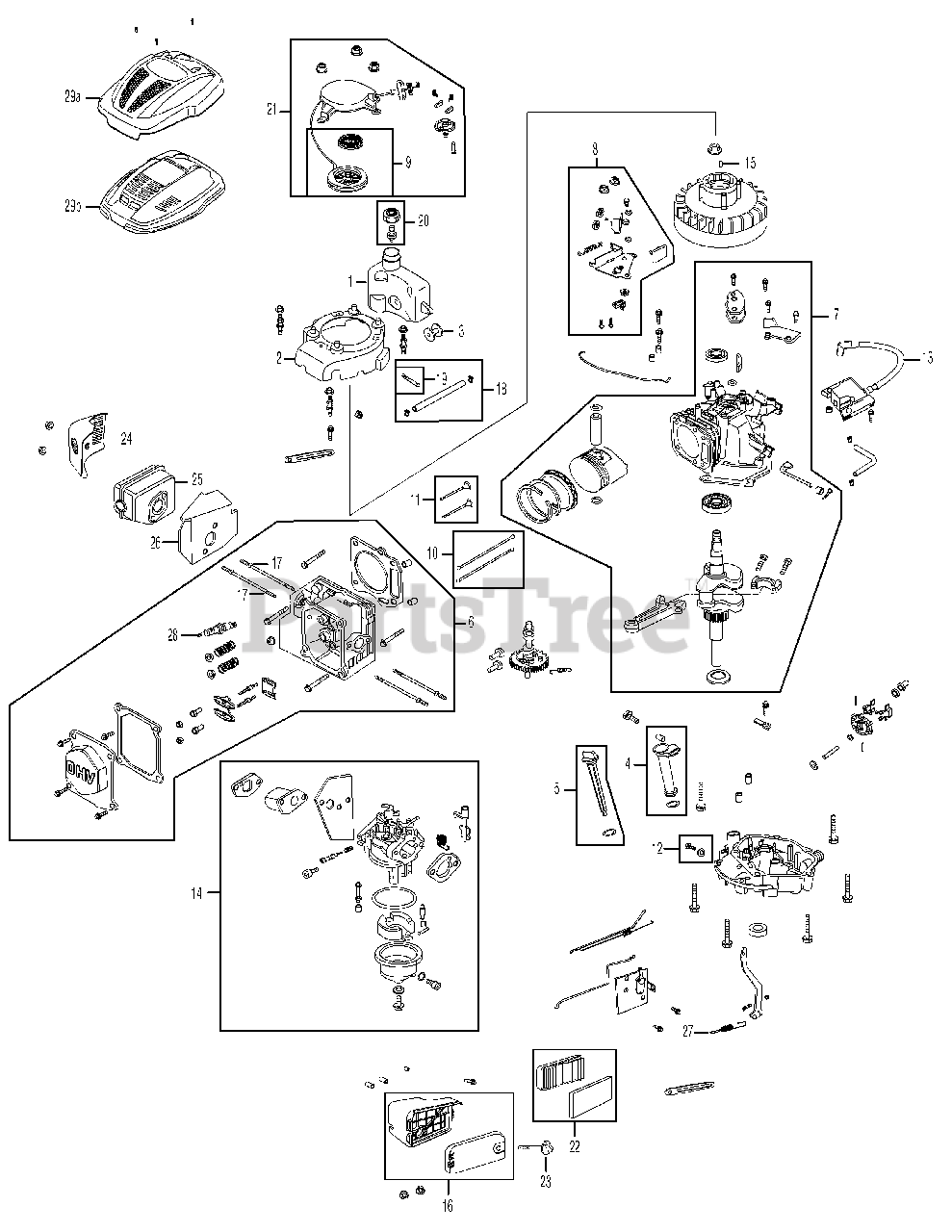

Engine 1P70FU Parts Diagram

  • Title

1

White Outdoor 951-10368

Fuel Tank
(Superseded to 951-12739)

$61.99

$

Usually ships in 3-6 days

0

2

White Outdoor 951-10369

Flywheel Shroud

$53.99

$

Usually ships in 3-6 days

0

3

White Outdoor 951-10335

Rubber Fuel Tank Mounting Washer

$5.99

$

Usually ships in 3-6 days

0

4

White Outdoor 951-10334

Oil Filler Tube Assemlby

$22.99

$

Usually ships in 3-6 days

0

5

White Outdoor 951-10333

Dipstick Assembly

$17.99

$

Usually ships in 3-6 days

0

6

White Outdoor 951-10332

Cylinder Head Complete

$

$

Not available

7

White Outdoor 951-10329

Short Block Assembly

$

$

Not available

8

White Outdoor 951-10321

Stop Switch and Brake Assembly
(Superseded to 951-10321A)

$39.99

$

Usually ships in 3-6 days

0

9

White Outdoor 951-10319

Recoil Spring and Pulley Assembly

$47.99

$

In Stock, only 3 left!

0

10

White Outdoor 951-10344

Push Rod Kit

$18.99

$

Usually ships in 3-6 days

0

11

White Outdoor 951-10345

Valve Kit

$65.99

$

Usually ships in 3-6 days

0

12

White Outdoor 951-10370

Oil Drain Plug and Washer Assembly

$9.49

$

Usually ships in 3-6 days

0

13

White Outdoor 951-10366

Ignition Coil

$104.99

$

In Stock, only 1 left!

0

14

White Outdoor 951-10310

Carburetor Assembly

$106.99

$

In Stock, only 4 left!

0

15

White Outdoor 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

16

White Outdoor 951-10306

Air Cleaner Housing Assembly Complete
(Superseded to 951-10412B)

$39.99

$

In Stock, only 4 left!

0

17

White Outdoor 951-10342

Muffler Stud Assembly

$9.99

$

In Stock, Qty 10

0

18

White Outdoor 951-10364

Fuel Line Kit - Inc. hoses, clamps & filter

$28.99

$

In Stock, only 2 left!

0

19

White Outdoor 951-10358

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

20

White Outdoor 951-10300

Fuel Cap Assemlby

$11.99

$

In Stock, only 1 left!

0

21

White Outdoor 951-10299

Recoil Starter Assembly
(Superseded to 951-10299A)

$69.99

$

In Stock, Qty 7

0

22

White Outdoor 951-10298

Air Cleaner Kit

$17.99

$

In Stock, Qty 20+

0

23

White Outdoor 951-10297

Air Cleaner Thumb Screw

$5.99

$

In Stock, only 2 left!

0

24

White Outdoor 951-10386

Muffler Guard

$

$

Not available

25

White Outdoor 951-10295

Muffler
(Superseded to 951-10403)

$82.99

$

Usually ships in 3-6 days

0

26

White Outdoor 951-10294

Muffler Gasket & Heat Shield
(Superseded to 951-11739)

$10.99

$

Usually ships in 3-6 days

0

27

White Outdoor 951-10293

Governor Return Spring

$

$

Not available

28

White Outdoor 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

29a

Engine Shroud

Note: N/A

$

$

Not available

29b

White Outdoor 731-05572

Engine Shroud

$

$

Not available

White Outdoor 952Z1P70MC

Engine - Complete
(Superseded to 952Z5P70MU)

Note: Replaces 752Z1P70FU, Not Shown

$548.99

$

Usually ships in 3-6 days

0

White Outdoor 951-10326

Carburetor Kit - Major
(Superseded to 951-12425A)

Note: Not Shown

$59.99

$

In Stock, only 1 left!

0

White Outdoor 951-10323

Carburetor Kit - Minor

Note: Not Shown

$30.99

$

Usually ships in 3-6 days

0

White Outdoor 951-10318

Gasket Kit - Complete

Note: Not Shown

$

$

Not available

White Outdoor 951-10343

Gasket Kit - External

Note: Not Shown

$

$

Not available

White Outdoor 951-11046

Flywheel

Note: Not Shown

$

$

Not available
