W 552 (967657801) - Husqvarna 52" Walk-Behind Mower (2017-10) FRAME Parts Diagram

52" Walk-Behind Mower

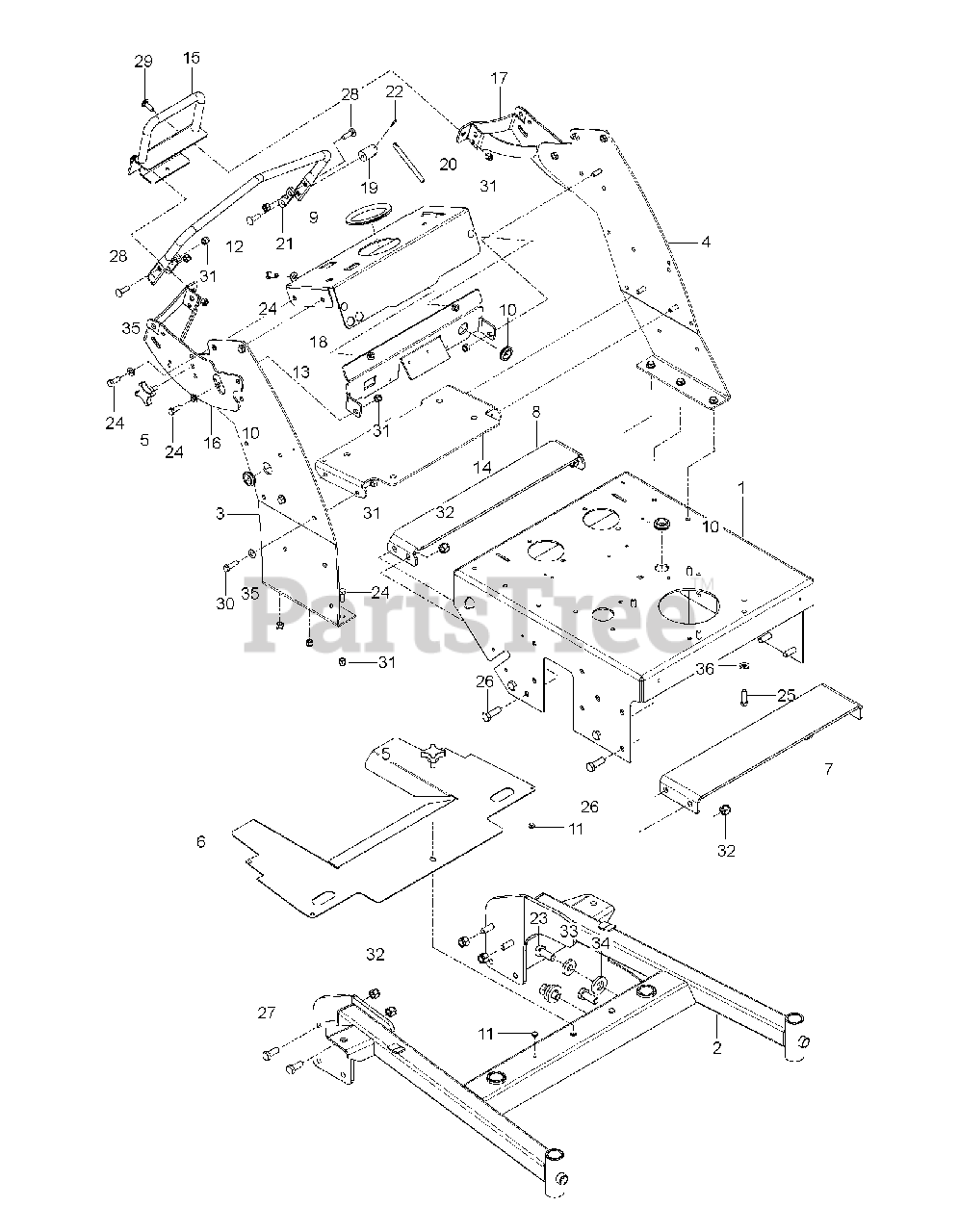

FRAME Parts Diagram

  • Title

1

Husqvarna 592779801

FRAME ASSY FRAME HYDRO W/ DECA

$683.99

$

Usually ships in 3-10 days

0

2

Husqvarna 592771201

DECK FRAME WLDT DECK FRAME 48

$683.99

$

Usually ships in 3-10 days

0

3

Husqvarna 592786301

BODY ASSY WLDMT, RH UPRIGHT TO

$341.99

$

Usually ships in 3-10 days

0

4

Husqvarna 592786601

BODY ASSY WLDT, LH UPRIGNT TOW

$341.99

$

Usually ships in 3-10 days

0

5

Husqvarna 588069901

KNOB KNOB, 3/8 -16 X .75

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 592769201

SHIELD BELT 48" HYDRO WALK HSQ

$125.99

$

Usually ships in 3-10 days

0

7

Husqvarna 592764101

PLATE, ENGINE BED FRONT ORG

$96.99

$

Usually ships in 3-10 days

0

8

Husqvarna 592764201

PLATE ENGINE BED REAR 52/48 39

$62.99

$

Usually ships in 3-10 days

0

9

Husqvarna 592761801

TRIM RUBBER EDGE 12" 170900

$37.99

$

Usually ships in 3-10 days

0

10

Husqvarna 588068804

GROMMET GROMMET, RUB:.88ID X 1

$

$

Not available

11

Husqvarna 588066601

BUMPER BUMPER GROMMET .125 X .

$

$

Not available

12

Husqvarna 592763401

SUPPORT HANDLE 3730748

$227.99

$

Usually ships in 3-10 days

0

13

Husqvarna 592771801

BRACE HANDLE BRACE WLDT 419064

$56.99

$

Usually ships in 3-10 days

0

14

Husqvarna 592773001

NEEDS DESCRIPTION

$

$

Currently unavailable

15

Husqvarna 592772101

BAR REVERSE BAR WMT 4292848

$102.99

$

Usually ships in 3-10 days

0

16

Husqvarna 592772201

MOUNT RH CONTROL MOUNT WMT 429

$74.99

$

Usually ships in 3-10 days

0

17

Husqvarna 592772301

MOUNT LH CONTROL MOUNT WMT 429

$74.99

$

Usually ships in 3-10 days

0

18

Husqvarna 592779901

CONSOLE HUSQ CONSOLE W/ DECALS

$148.99

$

Usually ships in 3-10 days

0

19

Husqvarna 588066805

BUSHING BUSHING, 1.03 X 1.50 X

$22.99

$

Usually ships in 3-10 days

0

20

Husqvarna 592780501

LEVER LOCK LEVER D13309

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 592764301

SHIM 5 DEG SPEED BAR (HUSQR) 3

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 592774301

Spring Pin, 5/32 X 1

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 588064729

BOLT BOLT, HEX 5/8-11 1.5" GR8

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 588064708

BOLT BOLT HEX .38-16 X 1.00 GR

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 588064709

BOLT BOLT HEX .38-16 X 1.25 GR

$

$

Not available

26

Husqvarna 592816001

Hex Bolt

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 588064715

BOLT BOLT HEX .50-13 X 1.25 GR

$

$

Not available

28

Husqvarna 501095401

BOLT BOLT 3/8-16X1-1/4 RD HD A

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 588064721

BOLT BOLT RDHDSHSQNK .38-16 X

$

$

Not available

30

Husqvarna 501101301

BOLT BOLT 3/8-16X1-1/4 HEX HEA

$4.99

$

In Stock, only 1 left!

0

31

Husqvarna 501099801

NUT NUT, 3/8-16 NYLON LOCK ARI

$5.99

$

Usually ships in 3-10 days

0

32

Husqvarna 592818801

SERVICE PARTS SYSTEM NUT-LK-NY

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 588073213

WASHER WASHER, FL-STL .630 X 1

$6.99

$

Usually ships in 3-10 days

0

34

Husqvarna 592815401

SERVICE PARTS SYSTEM WASHER,

$7.99

$

Usually ships in 3-10 days

0

35

Husqvarna 588073210

WASHER WASHER, FL-STL .406 X .

$3.49

$

Usually ships in 3-10 days

0

36

Husqvarna 588073202

WASHER WASHER, 3/8" SPRING DIS

$

$

Not available
