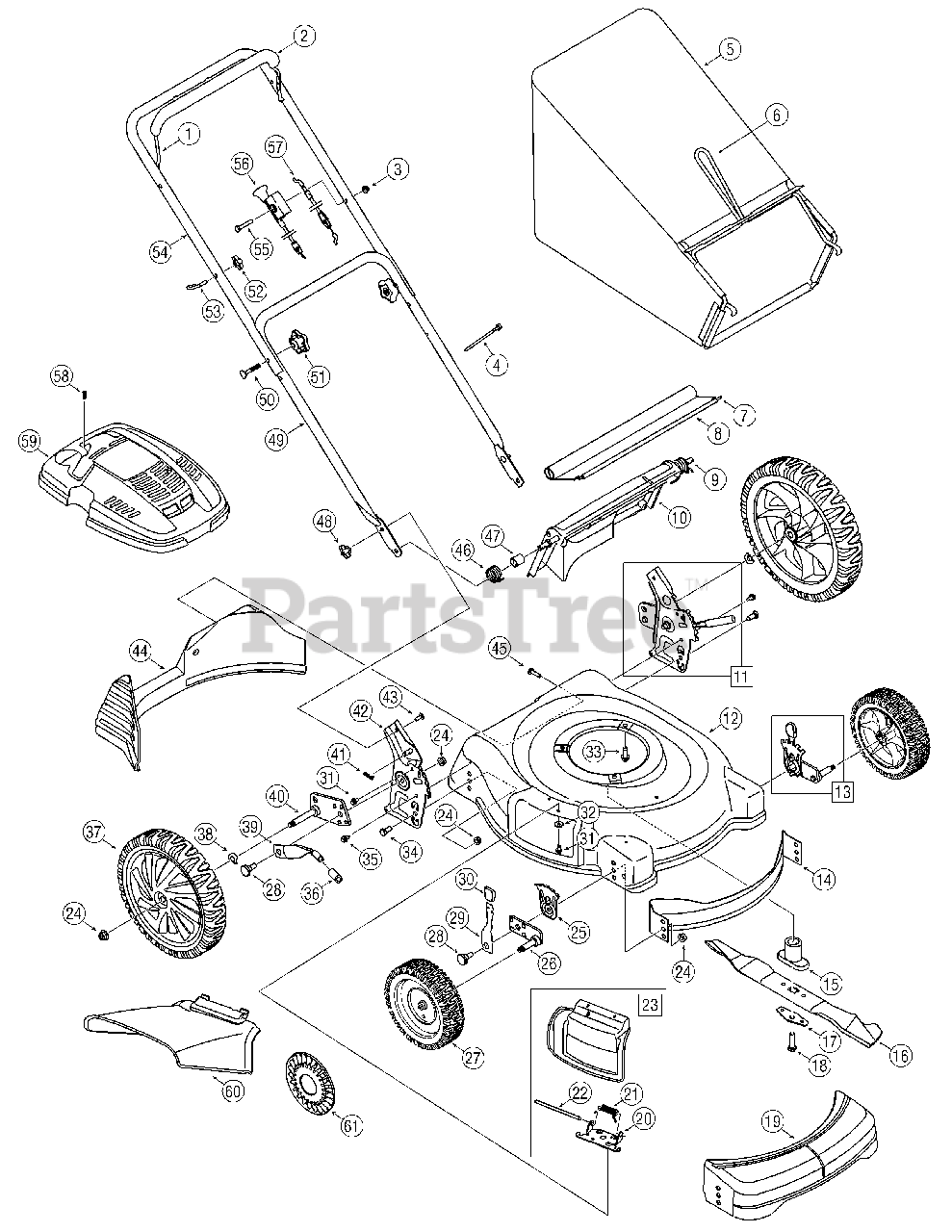

W-54 MB (11A-54MB790) - White Outdoor 21" Walk-Behind Mower (2006) General Assembly Parts Diagram

21" Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

White Outdoor 747-1161A

Blade Control

Variations

White Outdoor 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

2

White Outdoor 731-04859

Bail Cover

$11.99

$

Usually ships in 3-6 days

0

3

White Outdoor 712-04064

Flange Lock Nut 1/2-20

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 664-04034

Grass Bag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

6

White Outdoor 747-04080

Grass Bag Frame
(Superseded to 747-04080A)

Variations

White Outdoor 747-04080-0637

FRAME GRASS BAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

7

White Outdoor 732-0700

Trailshield Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

8

White Outdoor 731-04998

Trailshield

$31.99

$

In Stock, Qty 7

0

9

White Outdoor 747-0996

Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

10

White Outdoor 731-04134A

Rear Discharge Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

11

White Outdoor 687-02057

Rear Handle Bracket Assy. - LH
(Superseded to 987-02057)

$

$

Not available

11

White Outdoor 687-02056

Rear Handle Bracket Assy. - RH (not shown)
(Superseded to 987-02056)

$

$

Not available

12

White Outdoor 787-01279

Deck 21-inch

Variations

White Outdoor 787-01279-0650

MOWER DECK 21"-RED METALLIC - RED METALLIC (0650)

$

$

Not available

White Outdoor 787-01279-0691

MOWER DECK 21"-BLACK JACK - BLACK JACK (0691)

$

$

Not available

White Outdoor 787-01279-0709

DECK-21" - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 787-01279-4043

DECK-21" - CRAFTSMAN METALLIC GRAY (4043)

$

$

Not available

White Outdoor 787-01279-0606

MOWER DECK 21"-MAJESTIC ORANGE - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 787-01279-0629

DECK-21" - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 787-01279-0638

MOWER DECK 21"-MTD RED - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 787-01279-0665

DECK-21" - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 787-01279-0689

DECK-21" - POLO GREEN (0689)

$

$

Not available

White Outdoor 787-01279-0716

DECK-21" - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 787-01279-0729

DECK-21" - STORM GRAY (0729)

$

$

Not available

$

$

13

White Outdoor 687-02075A

Front Height Adjustment Assy-LH
(Superseded to 987-02075B)

$35.99

$

In Stock, only 2 left!

0

13

White Outdoor 687-02074A

Front Height Adjustment Assy-RH (not shown)
(Superseded to 987-02074B)

$40.99

$

In Stock, only 2 left!

0

14

White Outdoor 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

15

White Outdoor 748-0377C

Blade Adapter
(Superseded to 748-0377E)

$19.99

$

In Stock, only 1 left!

0

16

White Outdoor 742-0741

21-inch Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

17

White Outdoor 736-0524B

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

18

White Outdoor 710-1257

Hex Screw, 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

19

White Outdoor 731-1950

Deck Cover

$

$

Not available

20

White Outdoor 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

21

White Outdoor 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

22

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 987-02055

Hinged Mulch Plug Assembly

$27.99

$

In Stock, Qty 10

0

24

White Outdoor 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 787-01290

Height Adjustment Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

26

White Outdoor 687-02077A

Front Pivot Arm Assembly - RH
(Superseded to 987-02077A)

$17.99

$

In Stock, Qty 6

0

26

White Outdoor 687-02076A

Front Pivot Arm Assembly - LH (not shown)
(Superseded to 987-02076A)

$

$

Not available

27

White Outdoor 734-2005A

Front Wheel, 8 x 2.125 Zag
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

28

White Outdoor 738-0507B

Shoulder Screw, .5D x .434

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 732-0404

Front Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

30

White Outdoor 720-0426

Height Adjust Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

31

White Outdoor 710-0599

TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 710-0654A

TT Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 710-0216

Hex Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 12

0

35

White Outdoor 710-1652

TT Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

37

White Outdoor 734-04127

Rear Wheel, 12 x 2.125 S
(Superseded to 734-04019)

$70.99

$

In Stock, Qty 20+

0

38

White Outdoor 736-0182

Spring Washer

$4.49

$

In Stock, Qty 7

0

39

White Outdoor 732-0866

Rear Hi-Wheel Spring Lever

$

$

Not available

40

White Outdoor 687-02039A

Rear Pivot Arm Assy - RH
(Superseded to 987-02335)

$27.99

$

Usually ships in 3-6 days

0

40

White Outdoor 687-02040A

Rear Pivot Arm Assy - LH (not shown)
(Superseded to 987-02336)

$

$

Not available

41

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 687-02192

Handle Bracket Assy - RH
(Superseded to 987-02056)

$

$

Not available

42

White Outdoor 687-02191

Handle Bracket Assy - LH
(Superseded to 987-02057)

$

$

Not available

43

White Outdoor 710-0703

Carriage Bolt ,1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

45

White Outdoor 710-04371

Screw HL, 1/4-15 x 1.00

$6.99

$

Usually ships in 3-6 days

0

46

White Outdoor 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

46

White Outdoor 732-04089A

Torsion Spring - LH (not shown)

$7.99

$

Usually ships in 3-6 days

0

47

White Outdoor 750-04162

Spacer
(Superseded to 950-04162)

$

$

Not available

48

White Outdoor 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

49

White Outdoor 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

White Outdoor 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

50

White Outdoor 710-1174

Carriage Bolt, 5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

51

White Outdoor 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

52

White Outdoor 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

54

White Outdoor 749-1092A

Upper Handle

Variations

White Outdoor 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

55

White Outdoor 710-0606

Hex Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

56

White Outdoor 746-04239

Cable, Choke 38-inch
(Superseded to 746-04239A)

$49.99

$

Usually ships in 3-6 days

0

57

White Outdoor 746-04299

Cable, ERS 48-inch
(Superseded to 946-04299)

$28.99

$

In Stock, Qty 5

0

58

White Outdoor 710-04577

Machine Screw M4-.7x10.00
(Superseded to 710-04744)

$5.49

$

In Stock, Qty 11

0

59

White Outdoor 731-05572

Engine Shroud

$

$

Not available

60

White Outdoor 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

61

White Outdoor 731-0981A

Hub Cap, Radial Spoke
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0
