W 520 - Husqvarna Walk-Behind Mower ENGINE & CUTTING EQUIPMENT Parts Diagram

Walk-Behind Mower

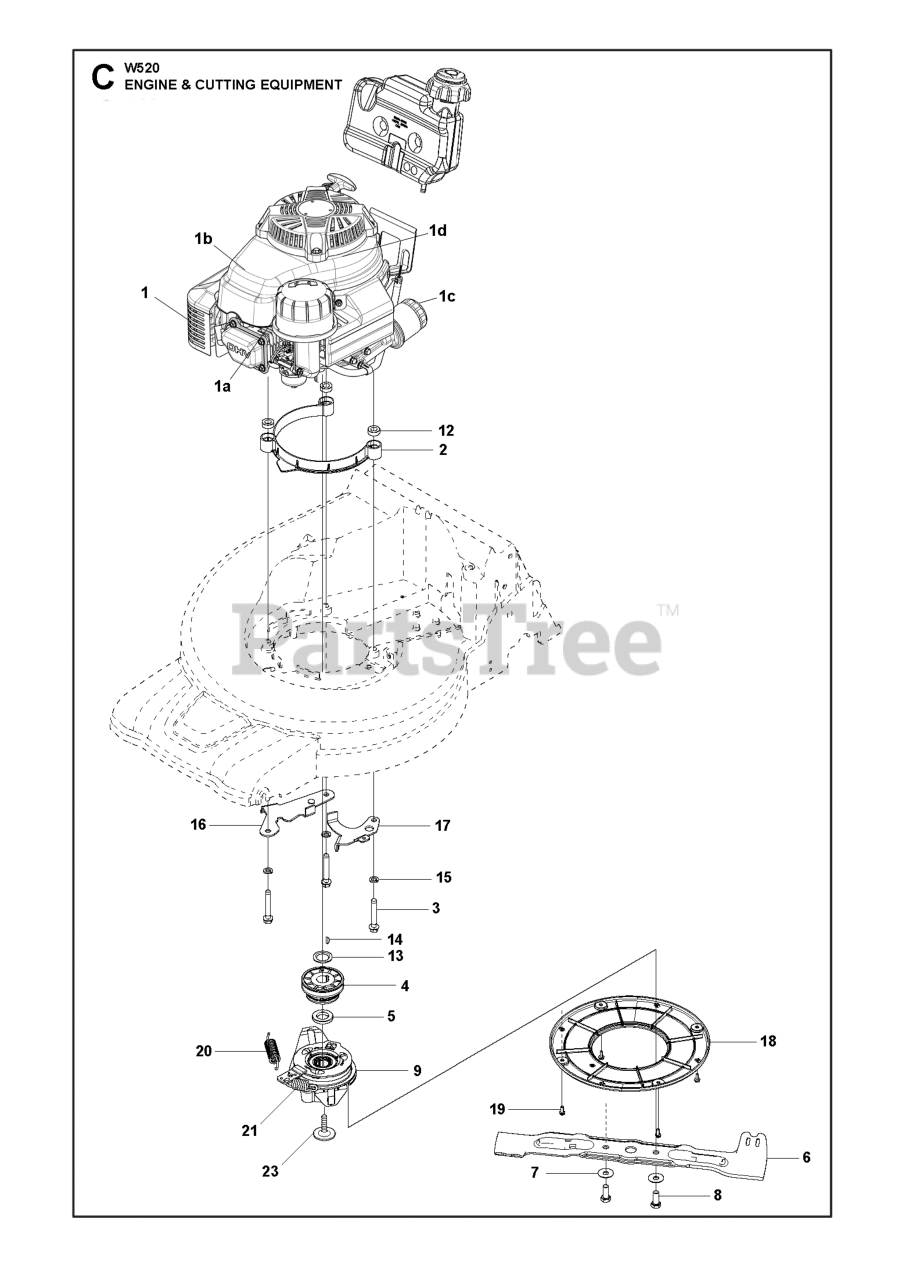

ENGINE & CUTTING EQUIPMENT Parts Diagram

  • Title

6

Husqvarna 582149410

BLADES

$66.99

$

Usually ships in 3-10 days

0

4

Husqvarna 582178801

Pulleys

$66.99

$

Usually ships in 3-10 days

0

8

Husqvarna 506675401

BOLT

Note: US, CAN

$5.99

$

In Stock, only 1 left!

0

7

Husqvarna 575746501

Washers

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 529299001

Clutches

$284.99

$

Usually ships in 3-10 days

0

17

Husqvarna 582140701

Brackets

$17.99

$

Usually ships in 3-10 days

0

1d

Husqvarna 531029742

SPARK PLUG

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 578294802

Screws

$7.99

$

Usually ships in 3-10 days

0

18

Husqvarna 582866701

Covers

$36.99

$

Usually ships in 3-10 days

0

13

Husqvarna 582334201

Washers

$5.99

$

Usually ships in 3-10 days

0

2

Husqvarna 582526101

Covers

$14.99

$

Usually ships in 3-10 days

0

21

Husqvarna 582673701

Springs

$7.99

$

Usually ships in 3-10 days

0

20

Husqvarna 582682501

Springs

$15.99

$

Usually ships in 3-10 days

0

14

Husqvarna 582673601

Keys

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 582385601

Spacers

$11.99

$

Usually ships in 3-10 days

0

1c

Husqvarna 578159201

OIL FILTERS

$88.99

$

Usually ships in 3-10 days

0

15

Husqvarna 531208974

WASHERS

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 531207385

SCREW

$2.49

$

Usually ships in 3-10 days

0

8

Husqvarna 725249371

Screw M10x25

$1.99

$

Usually ships in 3-10 days

0

1b

Husqvarna 598664301

FUEL FILTERS

$11.99

$

Usually ships in 3-10 days

0

16

Husqvarna 582139601

Brackets

$24.99

$

Usually ships in 3-10 days

0

1a

Husqvarna 598664401

AIR FILTERS

$31.99

$

Usually ships in 3-10 days

0

23

Husqvarna 586605601

SCREWS

$11.99

$

Usually ships in 3-10 days

0

1

Husqvarna 599527301

NEEDS DESCRIPTION

$

$

Currently unavailable

12

Husqvarna 582596401

Spacers

$10.99

$

Usually ships in 3-10 days

0
