W-52 K (12A-52K1090) - White Outdoor 22" Walk-Behind Mower (2008) General Assembly Parts Diagram

22" Walk-Behind Mower

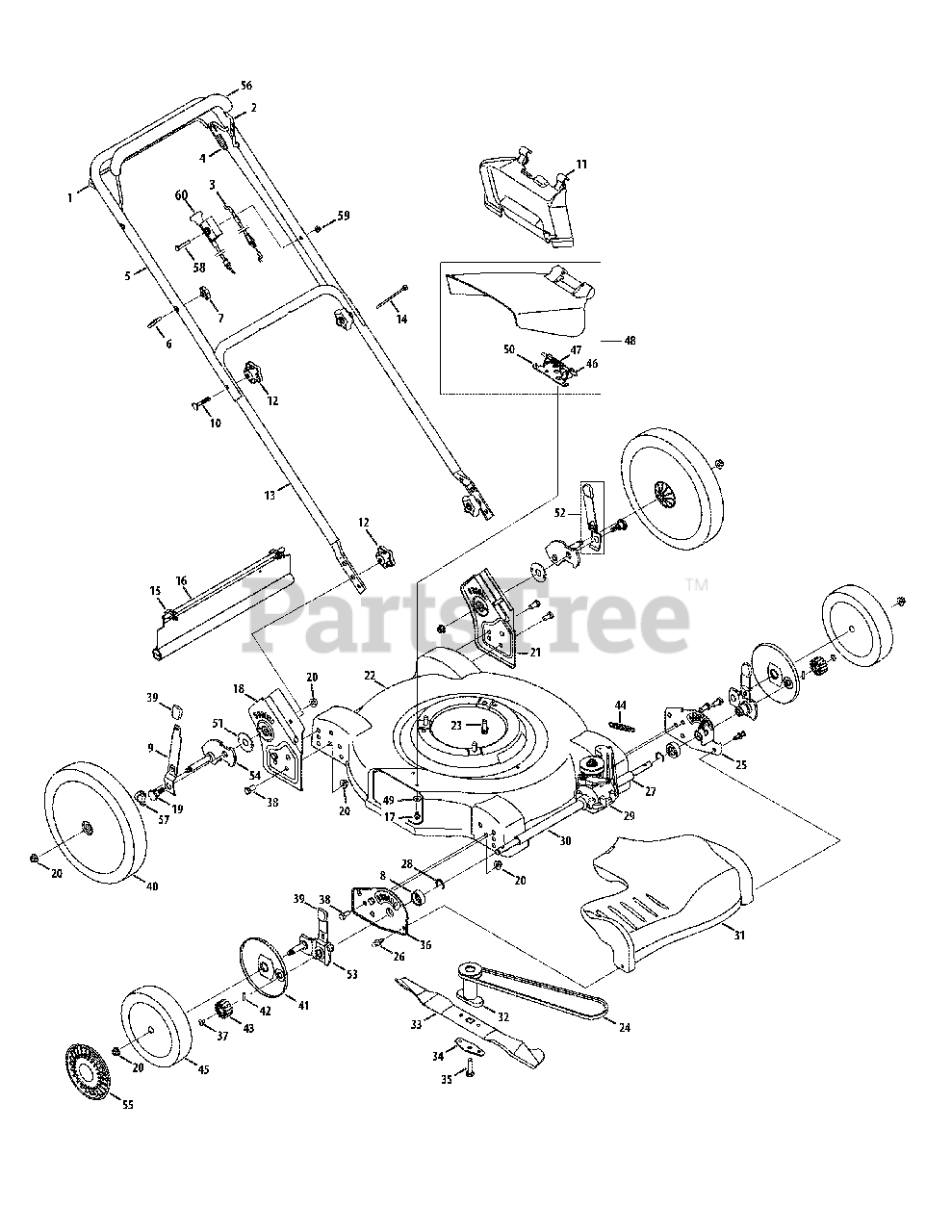

General Assembly Parts Diagram

  • Title

1

White Outdoor 747-1214

Drive Control

$22.99

$

In Stock, Qty 5

0

2

White Outdoor 747-1161A

Blade Control

Variations

White Outdoor 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 1 left!

0

3

White Outdoor 746-04300

Control Cable
(Superseded to 946-04300)

$34.99

$

In Stock, only 1 left!

0

4

White Outdoor 746-04304

Drive Control Cable
(Superseded to 946-04304)

$36.99

$

In Stock, only 2 left!

0

5

White Outdoor 749-1092A

Upper Handle

Variations

White Outdoor 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 720-0279

Wing Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 748-0390

Bearing Support Spacer

$5.99

$

In Stock, Qty 10

0

9

White Outdoor 732-0984B

Spring Lever

$

$

Not available

10

White Outdoor 710-1174

Carriage Bolt, 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

11

White Outdoor 631-04045

Mulching Baffle

$19.99

$

In Stock, Qty 10

0

12

White Outdoor 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 9

0

13

White Outdoor 749-04037

Lower Handle

Variations

White Outdoor 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

14

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

16

White Outdoor 731-2537

Trail Shield

$19.99

$

Usually ships in 3-6 days

0

17

White Outdoor 710-0599

Hex Screw, 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 682-3062A

Handle Bracket Assy - RH
(Superseded to 982-3062A)

Variations

White Outdoor 682-3062A-0637

BRACKET-HANDLE RH - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

19

White Outdoor 738-04267

Shoulder Screw, .625 x .412

$5.49

$

In Stock, only 2 left!

0

20

White Outdoor 712-04065

Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 682-3063A

Handle Bracket Assembly - LH

Variations

White Outdoor 682-3063A-0637

BRACKET-HANDLE LH - POWDER BLACK (0637)

$

$

Not available

$

$

22

White Outdoor 687-02046

22" Deck Assembly

Variations

White Outdoor 687-02046-0665

DECK ASSY-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$209.99

$

Usually ships in 3-6 days

0

White Outdoor 687-02046-0629

DECK ASSY-22" SIDE DISCHARGE - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 687-02046-0638

DECK ASSY-22" SIDE DISCHARGE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 687-02046-0691

DECK ASSY-22" SIDE DISCHARGE - BLACK JACK (0691)

$

$

Not available

White Outdoor 687-02046-0709

DECK ASSY-22" SIDE DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 687-02046-0717

DECK ASSY-22" SIDE DISCHARGE - SILVER MIST (0717)

$

$

Not available

$182.99

$

Usually ships in 3-6 days

0

23

White Outdoor 710-0654A

Hex Washer Scr., 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 754-04100

V-Belt, 3L x 32.90
(Superseded to 954-04100)

$20.99

$

In Stock, only 1 left!

0

25

White Outdoor 782-0585A

Forward Height Adj. Plate - LH
(Superseded to 782-0585A-0637)

Variations

White Outdoor 782-0585A-0637

PLATE-HEIGHT ADJ - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

26

White Outdoor 728-0199

Rivet

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 750-04407

Sleeve Spacer, .550 ID x 2.22

$

$

Not available

28

White Outdoor 716-0198

Retainer Ring

$4.99

$

In Stock, Qty 10

0

29

White Outdoor 618-04375A

Transmission Assy. Comp.
(Superseded to 918-04375B)

$

$

Not available

30

White Outdoor 750-04406A

Sleeve Spacer, .550 ID x 8.51

$

$

Not available

31

White Outdoor 731-04014

Transmission Cover
(Superseded to 931-04014)

$

$

Not available

32

White Outdoor 748-04016A

Blade Adapter

$58.99

$

In Stock, Qty 5

0

33

White Outdoor 742-0742A

22" Mulching Blade
(Superseded to 942-0742A)

$24.99

$

In Stock, only 1 left!

0

34

White Outdoor 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

35

White Outdoor 710-1044

Hex Cap Screw, 3/8-24 x 1.5

$3.99

$

In Stock, only 2 left!

0

36

White Outdoor 782-0584

Forward Hght. Adj. Plate - RH
(Superseded to 782-0584-0637)

Variations

White Outdoor 782-0584-0637

Height Adjust Plate - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

37

White Outdoor 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

38

White Outdoor 710-0216

Hex Cap Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 15

0

39

White Outdoor 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

40

White Outdoor 734-04093

Rear Wheel, 12 x 2.125, Zag

$67.99

$

In Stock, only 2 left!

0

41

White Outdoor 731-04643

Wheel Dust Cover

$8.49

$

In Stock, only 1 left!

0

42

White Outdoor 715-0221

Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 717-1762

Spur Gear 14T - RH

$13.99

$

In Stock, only 3 left!

0

43

White Outdoor 717-1761

Spur Gear 14T - LH

$13.99

$

In Stock, only 4 left!

0

44

White Outdoor 732-04049

Ext. Spring, .47 OD x 2.50

$4.99

$

In Stock, only 1 left!

0

45

White Outdoor 734-2042

Front Wheel, 8 x 2.125, Zag
(Superseded to 734-2042A)

$38.99

$

In Stock, Qty 12

0

46

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

47

White Outdoor 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

48

White Outdoor 731-1034B

Side Discharge Assembly
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

49

White Outdoor 736-0270

Bell Washer, .265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

50

White Outdoor 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

51

White Outdoor 741-0717

Thrust Bearing

$

$

Not available

52

White Outdoor 687-02052

Rear Hgt. Adj. Lever Assembly

$

$

Not available

53

White Outdoor 987-02140A

Front Lever Assembly -

Note: Use for RH in this application

$49.99

$

Usually ships in 3-6 days

0

53

White Outdoor 987-02141A

Front Lever Assembly -

Note: Use for LH in this application

$49.99

$

Usually ships in 3-6 days

0

54

White Outdoor 687-02343

Rear Pivot Arm Assembly - LH
(Superseded to 687-02079)

$16.99

$

Usually ships in 3-6 days

0

54

White Outdoor 687-02344

Rear Pivot Arm Assembly - RH

$

$

Not available

55

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

56

White Outdoor 731-04859

Deluxe Bail Cover

$11.99

$

Usually ships in 3-6 days

0

57

White Outdoor 736-0182

Washer, Spring, .500 x 1.00 x .022

$4.49

$

In Stock, Qty 7

0

58

White Outdoor 710-0606

Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

59

White Outdoor 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

60

White Outdoor 746-04295A

Choke Cable
(Superseded to 946-04295A)

$54.99

$

Usually ships in 3-6 days

0
