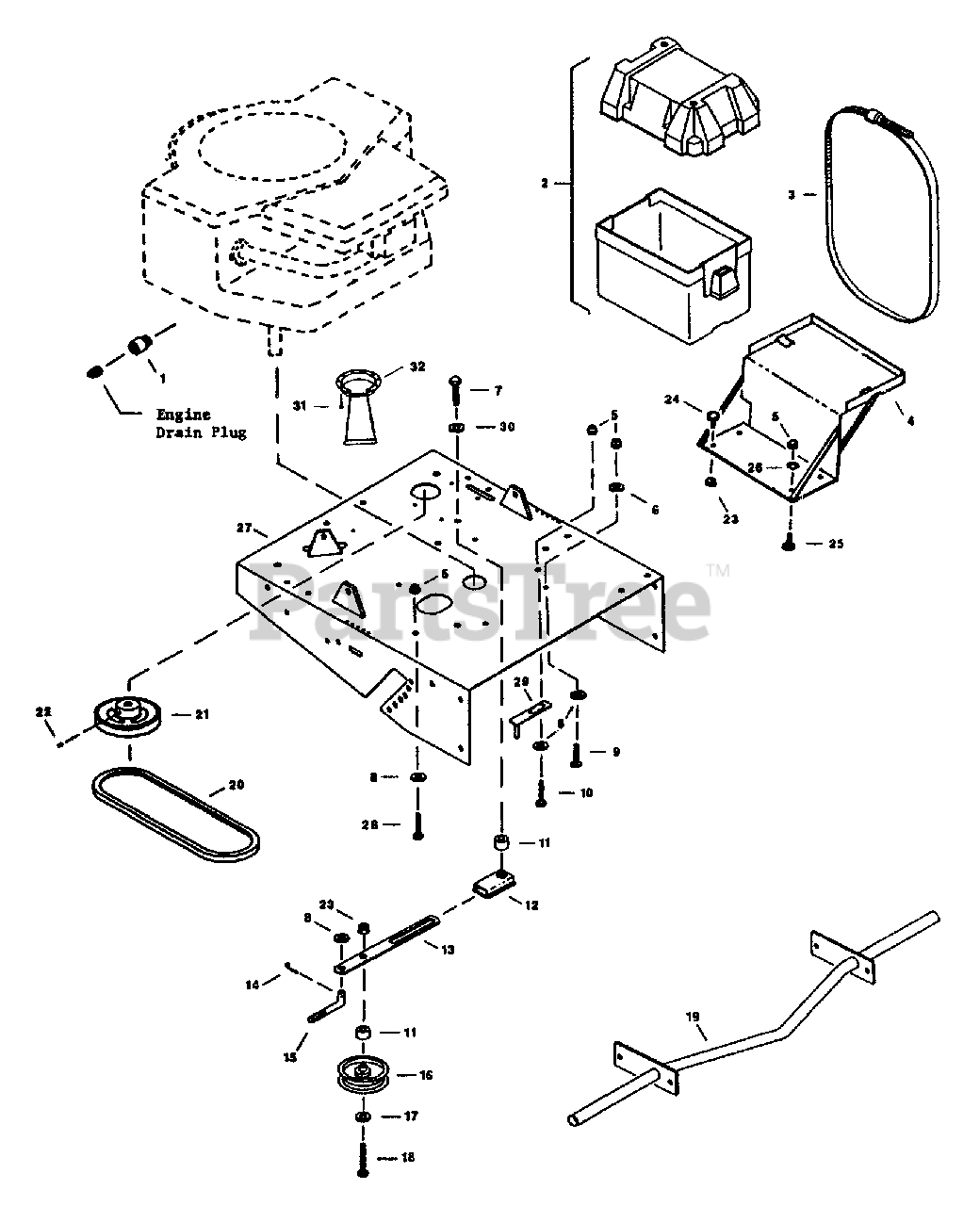

W 48140S - Snapper 48" Walk-Behind Mower, 14hp Rear Deck Assembly (Model W48140S) Parts Diagram

48" Walk-Behind Mower, 14hp

Rear Deck Assembly (Model W48140S) Parts Diagram

  • Title

1

Snapper 7076722

Oil Drain Extension

$

$

Currently unavailable

2

Snapper 7076823

Battery Case

$

$

Currently unavailable

3

Snapper 76714

Hose Clamp

$

$

Currently unavailable

4

Snapper 76654

Battery Stand

$

$

Currently unavailable

5

Snapper 7091298

5/16"-18 Nyloc Hex Nut
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7090187

5/16" Lock Washer
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7090730

3/8"-16x1-3/4" Hex Hd. Cap Screw-Grade 5

$

$

Not available

8

Snapper 7090692

5/16" Std. Flat Washer
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7076935

5/16"-18x1-1/2" Hex Hd. Cap Screw-Grade 5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

10

Snapper 7091318

5/16"-18x3/4" Hex Hd. Cap Screw
(Superseded to 704287)

Note: Was 76925

$3.99

$

In Stock, Qty 9

0

11

Snapper 7076718

Spacer
(Superseded to 7076718YP)

$6.99

$

Usually ships in 2-12 days

0

12

Snapper 7076374

Bracket Slide

$

$

Not available

13

Snapper 7076429

Slide Bar

$

$

Not available

14

Snapper 7091597

3/32" x 1/2" Cotter Pin
(Superseded to 703312)

Note: Was 90555

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7076432

Variable Adjustment Rod

$

$

Not available

16

Snapper 7076500

Idler Pulley
(Superseded to 7076500YP)

$29.99

$

Usually ships in 2-12 days

0

17

Snapper 7090517

3/8" Std. Flat Washer
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

18

Snapper 7091501

3/8"-16x2-1/2" Hex Hd. Cap Screw-Grade 5
(Superseded to 703873)

Note: Was 76970

$4.49

$

In Stock, only 2 left!

0

19

Snapper 7076659

Axle

$

$

Currently unavailable

20

Snapper 7076717

Belt
(Superseded to 7076717YP)

$26.99

$

In Stock, only 1 left!

0

21

Snapper 7076397

Transmission Pulley

Note: w/Set Screws (76956)

$

$

Not available

22

Snapper 7076956

5/16"-18x3/8" Nyloc Knurled Cup Point Set Screw
(Superseded to 5025061SM)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 7091299

3/8"-16 Nyloc Hex Nut
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

24

Snapper 7091304

3/8"-16x1" Hex Hd. Cap Screw-Grade 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

25

Snapper 76926

5/16"-18x1" Hex Hd. Cap Screw

$

$

Currently unavailable

26

Snapper 7090395

5/16" External Tooth Lock Washer
(Superseded to 703138)

Note: Was 76985

$3.99

$

In Stock, Qty 7

0

27

Snapper 7076655

Rear Deck

$

$

Currently unavailable

28

Snapper 7076948

5/16"-18x1-1/4" Hex Hd. Tap Bolt

$

$

Currently unavailable

29

Snapper 7076673

Belt Guide
(Superseded to 7076673YP)

$11.99

$

Usually ships in 2-12 days

0

30

Snapper 7090118

3/8" Lock Washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

31

Snapper 7077690

Screw

$

$

Currently unavailable

32

Snapper 7076824

Muffler Deflector

$

$

Currently unavailable
