W 48122R (80036) - Snapper 48" Walk-Behind Mower, 12hp Traction Wheel Assembly 36, 48 Parts Diagram

48" Walk-Behind Mower, 12hp

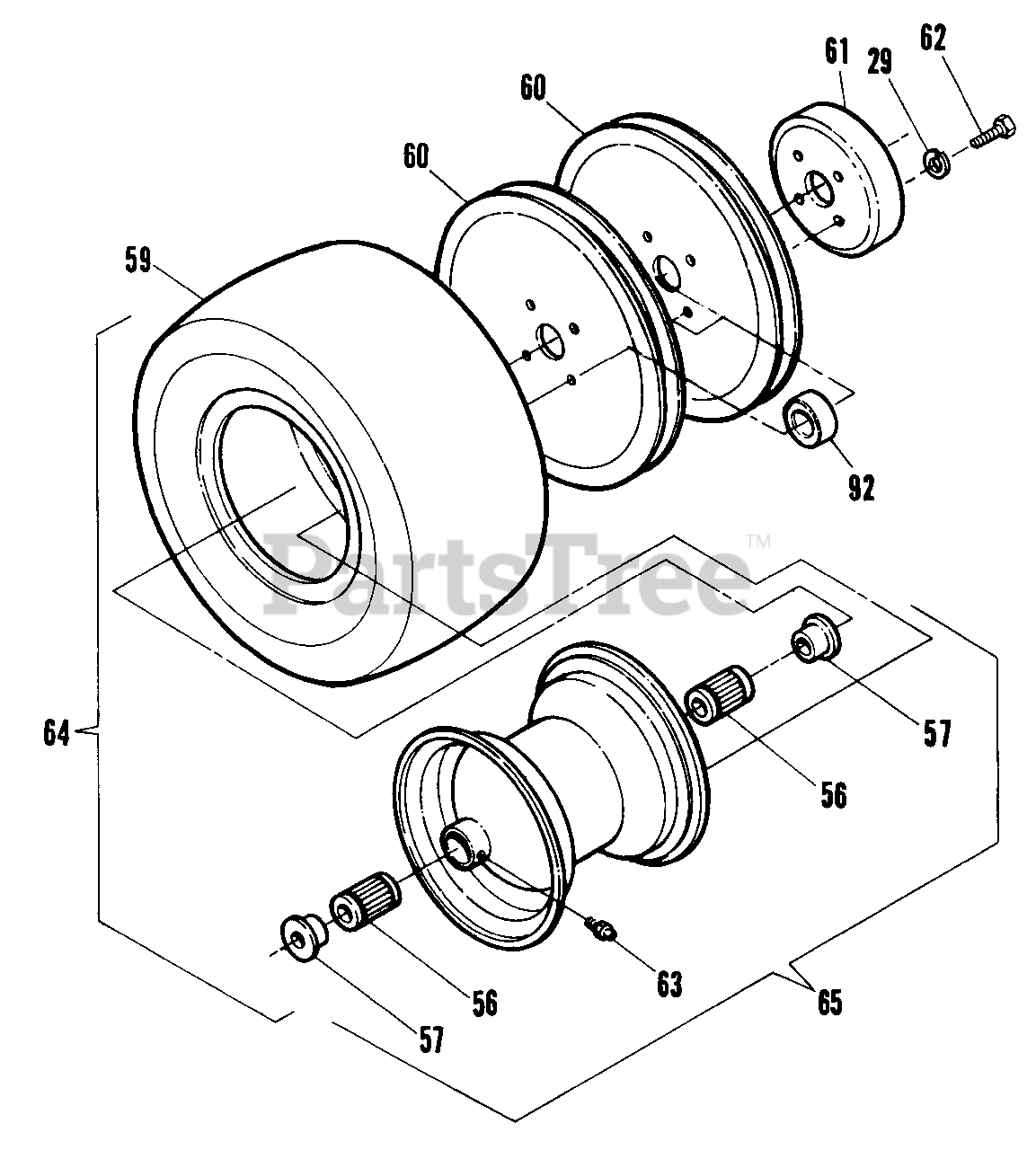

Traction Wheel Assembly 36, 48 Parts Diagram

  • Title

29

Snapper 7090118

WASHER, Lock 3/8
(Superseded to 703454)

Note: See "Wheel Assembly" illustration and parts list.

$3.49

$

In Stock, Qty 15

0

56

Snapper 7077313

BEARING, Roller
(Superseded to 7077313YP)

Note: (36 & 48). See "Wheel Assembly" illustration and parts list.

$45.99

$

Usually ships in 2-12 days

0

57

Snapper 7077312

BUSHING, Flange
(Superseded to 7077312YP)

Note: See "Wheel Assembly" illustration and parts list.

$6.49

$

Usually ships in 2-12 days

0

59

Snapper 7023788

TIRE, 4 Ply Turfsaver
(Superseded to 7023788YP)

Note: See "Wheel Assembly" illustration and parts list.

$120.99

$

Usually ships in 2-12 days

0

60

Snapper 7038473

PULLEY, Traction
(Superseded to 7038473YP)

Note: See "Wheel Assembly" illustration and parts list.

$34.99

$

Usually ships in 2-12 days

0

61

Snapper 7019224

HUB, Brake
(Superseded to 7019224YP)

Note: See "Wheel Assembly" illustration and parts list.

$14.99

$

Usually ships in 2-12 days

0

62

Snapper 7090164

SCREW, Hex Head Cap 3/8" - 24 x 5/8

Note: See "Wheel Assembly" illustration and parts list.

$

$

Not available

63

Snapper 7076998

ZERK, 1/4 - 28
(Superseded to 703153)

Note: See "Wheel Assembly" illustration and parts list.

$3.99

$

In Stock, Qty 12

0

64

Snapper 7019206

WHEEL ASS'Y (w/out Pulleys)

Note: (Includes 65 & 59). See "Wheel Assembly" illustration and parts list.

$

$

Currently unavailable

Snapper 7059800

WHEEL ASS'Y (Complete w/Pulleys & Brake Hub)
(Superseded to 7059800YP)

Note: (Includes 60, 61, 29, 62, 59, 65)

$173.99

$

Usually ships in 2-12 days

0

65

Snapper 7019256

RIM w/Flange Ass'y

Note: (Includes 52, 56, 63). See "Wheel Assembly" illustration and parts list.

$

$

Currently unavailable

92

Snapper 7091004

WASHER, 1/4 "D"

$

$

Currently unavailable
