W 48121 (88139) - Snapper 48" Walk-Behind Mower, 12hp Traction Wheel Assembly Parts Diagram

48" Walk-Behind Mower, 12hp

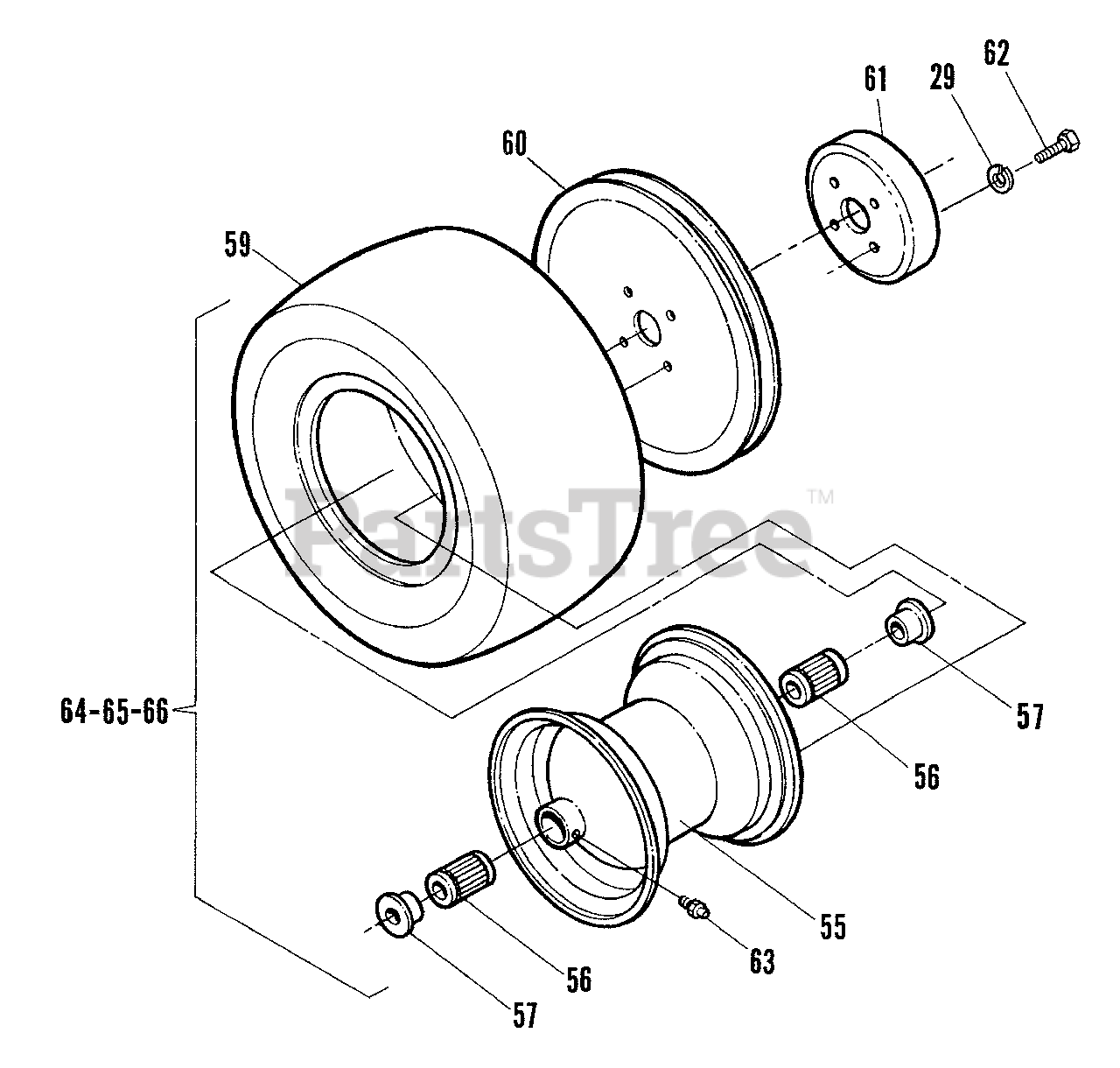

Traction Wheel Assembly Parts Diagram

  • Title

29

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

55

Snapper 7077290

WHEEL, w/Flange Assembly (36" & 48")

$

$

Not available

Snapper 77194

WHEEL, w/Flange Assembly (32")

$

$

Currently unavailable

56

Snapper 7077221

BEARING, Roller (32")

$

$

Not available

Snapper 7077313

BEARING, Roller (36" 7 48")
(Superseded to 7077313YP)

$45.99

$

Usually ships in 2-12 days

0

57

Snapper 7077312

BUSHING, Flange
(Superseded to 7077312YP)

$6.49

$

Usually ships in 2-12 days

0

59

Snapper 7077222

TIRE, 2 Ply Turfmaster (32")

$

$

Not available

Snapper 7023788

TIRE, 2 Ply Turfmaster (36" 7 48")
(Superseded to 7023788YP)

Note: Was 77310

$120.99

$

Usually ships in 2-12 days

0

60

Snapper 7076522

SHEAVE

$

$

Not available

61

Snapper 7076440

DRUM, Brake

$

$

Not available

62

Snapper 7076942

SCREW, 3/8-24 x 5/8" Hex Head Cap, Grade 5

$

$

Not available

63

Snapper 7076998

FITTING, 1/4-28 Grease
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

64

Snapper 7077195

WHEEL, w/Sheave & Drum Assembly (32")

$

$

Currently unavailable

Snapper 7077292

WHEEL, w/Sheave 7 Drum Assembly (36" & 48")

$

$

Currently unavailable

65

Snapper 7076407

TIRE ASSEMBLY, w/Bearings (36" & 48")

$

$

Not available

Snapper 7076336

TIRE ASSEMBLY, w/Bearings (32")

Note: Was 76335

$

$

Currently unavailable

66

Snapper 7076336

TIRE ASSEMBLY (32")

$

$

Currently unavailable

Snapper 7076409

TIRE ASSEMBLY (36" & 48")

$

$

Currently unavailable
