W 448 (967334401) - Husqvarna 48" Walk-Behind Mower (2015-01) MOWER DECK / CUTTING DECK Parts Diagram

48" Walk-Behind Mower

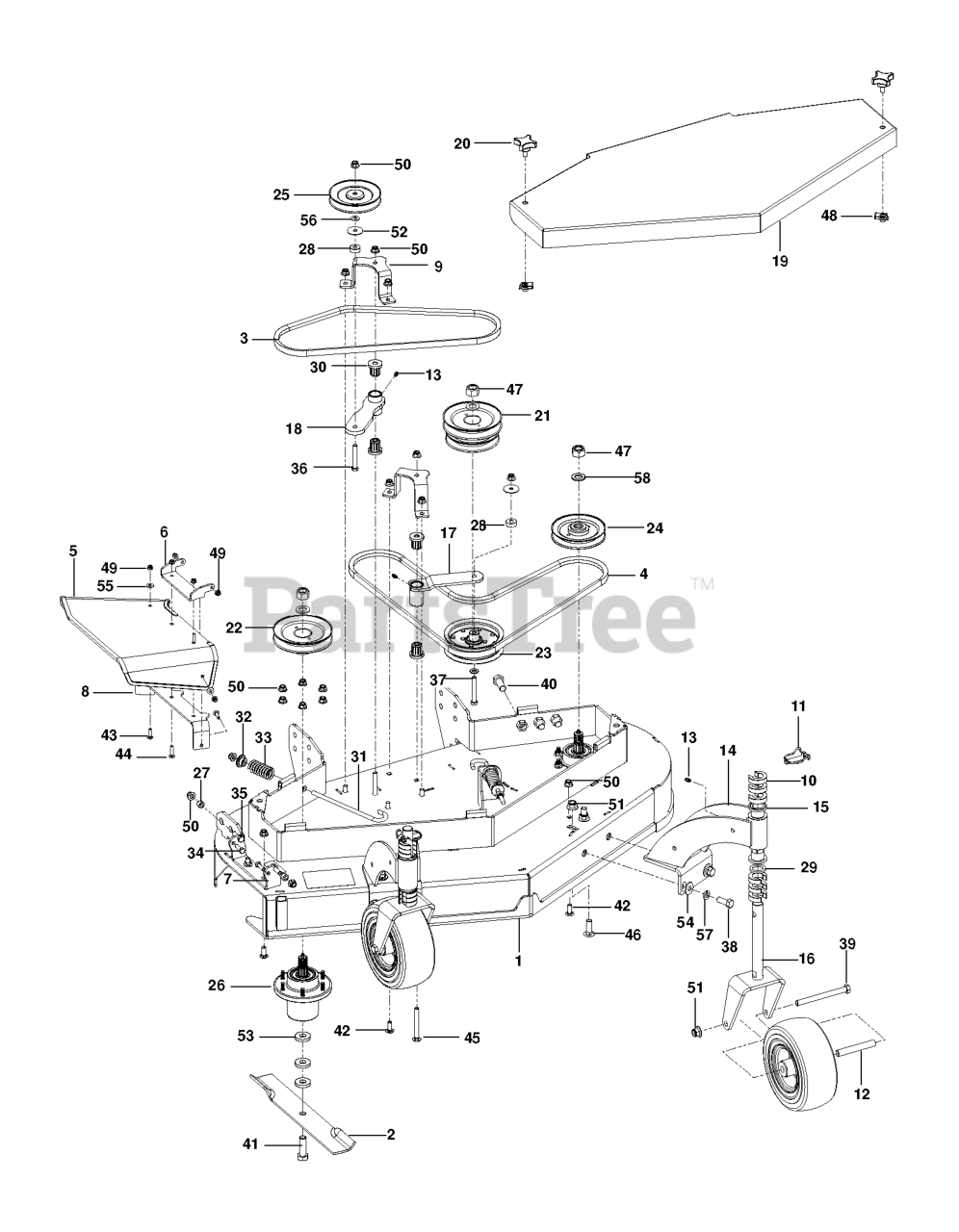

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

11

Husqvarna 588070801

PIN PIN, LNC .438 X 2.00

$13.99

$

Usually ships in 3-10 days

0

46

Husqvarna 588064728

BOLT BOLT RDHDSQNK .50-13 X 1.

$

$

Not available

41

Husqvarna 588064717

BOLT BOLT HEX .62-11 X 2.00 G

$5.99

$

In Stock, Qty 8

0

not shown

Husqvarna 588063701

WHEEL ASSY ASSY, WHEEL & TIRE

$284.99

$

Usually ships in 3-10 days

0

32

Husqvarna 588069701

KEEPER KEEPER, SPRING

$9.49

$

Usually ships in 3-10 days

0

42

Husqvarna 588064721

BOLT BOLT RDHDSHSQNK .38-16 X

$

$

Not available

12

Husqvarna 588072901

TUBE TUBE, CASTER AXLE

$13.99

$

Usually ships in 3-10 days

0

40

Husqvarna 588064729

BOLT BOLT, HEX 5/8-11 1.5" GR8

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 588071305

PULLEY PULLEY, IDLER 5.0 V-GRO

$74.99

$

Usually ships in 3-10 days

0

58

Husqvarna 588073201

WASHER WASHER, .75 X 1.3125 X

$3.49

$

In Stock, only 1 left!

0

21

Husqvarna 588071302

PULLEY PULLEY CNT SPN DBL BLT

$91.99

$

Usually ships in 3-10 days

0

15

Husqvarna 588065001

BEARING BRG, FLG 1.00 X 1.25 X

$11.99

$

Usually ships in 3-10 days

0

51

Husqvarna 588070611

NUT NUT, LK-NYL-FLG .50-13 YWZ

$3.49

$

In Stock, only 1 left!

0

17

Husqvarna 588069502

OFFSET PULLEY IDLER ARM WITH O

$

$

Not available

1

Husqvarna 588063201

DECK ASSY ASSY, DECK 48" GEAR

$

$

Not available

10

Husqvarna 588068201

SPACER C-SPACER, 1.00 X 1.77 X

$11.99

$

In Stock, only 4 left!

0

54

Husqvarna 588073212

WASHER WASHER, FL-STL .50 X 1.

$

$

Not available

29

Husqvarna 588066805

BUSHING BUSHING, 1.03 X 1.50 X

$22.99

$

Usually ships in 3-10 days

0

22

Husqvarna 588071303

PULLEY PULLEY RH SPN DBL BLT

$85.99

$

Usually ships in 3-10 days

0

23

Husqvarna 588071304

PULLEY PULLEY, FLAT 5.00 X .37

$79.99

$

Usually ships in 3-10 days

0

53

Husqvarna 588073213

WASHER WASHER, FL-STL .630 X 1

$6.99

$

Usually ships in 3-10 days

0

45

Husqvarna 588064727

BOLT RDHDSQNK .38-16 X 3.

$

$

Not available

27

Husqvarna 588227201

BUSHING BUSHING, SLV

$

$

Not available

19

Husqvarna 588227301

SHIELD SHIELD 48"

$

$

Not available

18

Husqvarna 588069501

OFFSET PULLEY IDLER, 36 FXWLK

$

$

Not available

52

Husqvarna 588073209

WASHER WASHER, FL-STL .38 X 1.

$

$

Not available

3

Husqvarna 588064002

BELT BELT, HB 51.4 EL AMD

$68.99

$

Usually ships in 3-10 days

0

20

Husqvarna 588069901

KNOB KNOB, 3/8 -16 X .75

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 588068602

FITTING FITTING, 1/4-28 STRGT

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna 588070301

LOCK NUT LOCKNUT, 3/4-16 CROWN

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 588069601

BOLT J-BOLT, 3/8-16 X 7.88

$22.99

$

In Stock, only 1 left!

0

39

Husqvarna 588064716

BOLT BOLT HEX .50-13 X 5.50 G

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 588072401

STRUT STRUT FRONT FXWLK HUSQ

$

$

Not available

55

Husqvarna 588073208

WASHER WASHER, FL-STL .38 X .8

$

$

Not available

9

Husqvarna 588064801

BRACKET BRACKET, IDLER

$

$

Not available

6

Husqvarna 588066502

BRACKET BRACKET, DISCHARGE MOU

$31.99

$

Usually ships in 3-10 days

0

57

Husqvarna 588073220

WASHER WASHER, LK .50X.125 REG

$

$

Not available

24

Husqvarna 588071306

PULLEY PULLEY, SPINDLE .25 HUB

$51.99

$

Usually ships in 3-10 days

0

28

Husqvarna 588066804

BUSHING BUSHING, .380 X 1.00 X

$5.99

$

Usually ships in 3-10 days

0

36

Husqvarna 588064730

BOLT BOLT-HEX .38-16X2.50 GR5

$

$

Not available

8

Husqvarna 588066501

BRACKET BRACKET, DISCHARGE

$136.99

$

Usually ships in 3-10 days

0

5

Husqvarna 588067501

CHUTE CHUTE, DISCHARGE RUBBER

$148.99

$

Usually ships in 3-10 days

0

33

Husqvarna 588072301

SPRING SPRING, COM 1.22 X .162

$10.99

$

In Stock, only 2 left!

0

34

Husqvarna 588064705

BOLT BOLT HEX .31-18 X 1.00 GR

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 588066503

BRACKET BRACKET, DISCHARGE PIV

$

$

Not available

44

Husqvarna 588064724

BOLT BOLT RDHDSQNK .31-18 X 1.

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 588064004

BELT BELT, HB WRAPPED 83.2" EL

$91.99

$

In Stock, only 1 left!

0

35

Husqvarna 588064709

BOLT BOLT HEX .38-16 X 1.25 GR

$

$

Not available

30

Husqvarna 588065002

BEARING BRG, FLG M10 X M25 X M

$

$

Not available

48

Husqvarna 588227401

NUT NUT, RTNR .375-16 X .37

$3.49

$

Usually ships in 3-10 days

0

38

Husqvarna 588064715

BOLT BOLT HEX .50-13 X 1.25 GR

$

$

Not available

37

Husqvarna 588064713

BOLT BOLT HEX .38-16 X 2.75 GR

$

$

Not available

26

Husqvarna 588063601

SPINDLE ASSY, SPINDLE HOUSING
(Superseded to 592770701)

$854.99

$

Usually ships in 3-10 days

0

16

Husqvarna 588067401

YOKE CASTER YOKE HUSQ

$159.99

$

Usually ships in 3-10 days

0

43

Husqvarna 588064723

BOLT BOLT RDHDSQNK .31-18 X 1.

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 588064501

BLADE, 16.500 X .80 LIFT

$56.99

$

Usually ships in 3-10 days

0
