W 448 (967334401) - Husqvarna 48" Walk-Behind Mower (2015-01) DRIVE Parts Diagram

48" Walk-Behind Mower

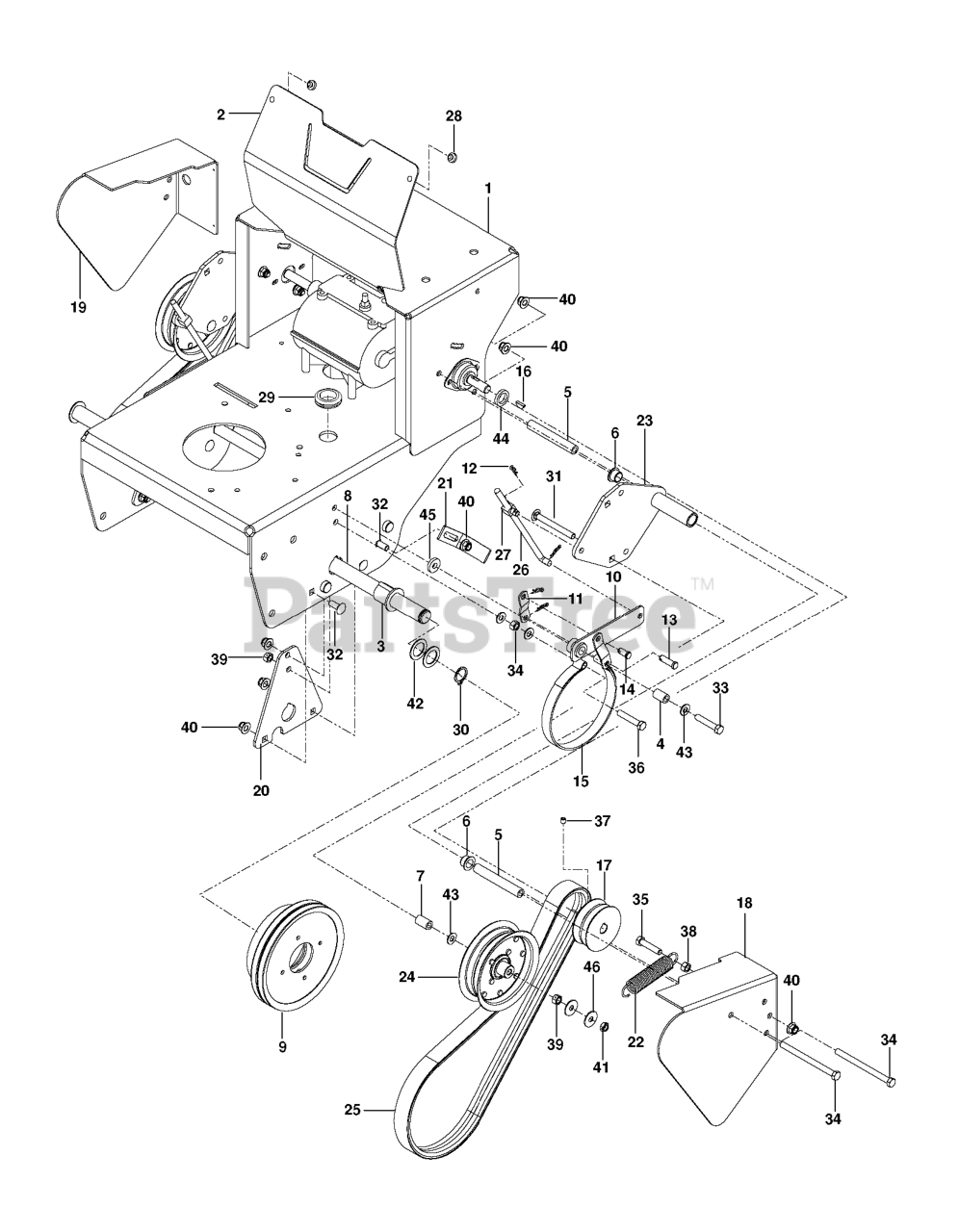

DRIVE Parts Diagram

  • Title

10

Husqvarna 588064901

LEVER BRAKE ACTUATING LEVER

$

$

Not available

29

Husqvarna 588068804

GROMMET GROMMET, RUB:.88ID X 1

$

$

Not available

27

Husqvarna 588072601

SWIVEL SWIVEL, 3/8-24

$14.99

$

Usually ships in 3-10 days

0

39

Husqvarna 588070605

NUT NUT, LK-CTR .38-16 YWZC

$

$

Not available

Husqvarna 588063801

WHEEL ASSY ASSY, WHEEL&TIRE 6

Note: NOT SHOWN

$

$

Not available

6

Husqvarna 588066802

BUSHING BUSHING FLG, .625 X .7

$

$

Not available

28

Husqvarna 588066601

BUMPER BUMPER GROMMET .125 X .

$

$

Not available

15

Husqvarna 588063001

BRAKE BAND ASSY ASSY, BRAKE BA

$51.99

$

Usually ships in 3-10 days

0

35

Husqvarna 588064710

BOLT BOLT HEX .38-16 X 1.75 GR

$

$

Not available

16

Husqvarna 588069804

KEY KEY-WDRF .19 X .75 HRD#9

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 588071501

ROD ROD, BRAKE ACTUATING

$

$

Not available

21

Husqvarna 588071202

PLATE PLATE, BENT BELT FINGER

$

$

Not available

20

Husqvarna 588071201

PLATE PLATE, AXLE/BRG MTG

$

$

Not available

36

Husqvarna 588064712

BOLT BOLT HEX .38-16 X 2.00 IN

$

$

Not available

9

Husqvarna 588063502

PULLEY ASSY ASSY, PULLEY & DRU

$136.99

$

Usually ships in 3-10 days

0

8

Husqvarna 588071801

SHAFT SHAFT, AXLE

$250.99

$

Usually ships in 3-10 days

0

30

Husqvarna 588071402

RING RG-RTNG-E X T 1.00 X .078

$3.49

$

Usually ships in 3-10 days

0

41

Husqvarna 588070606

NUT NUT, LK-CTR-JAM .375-16 YW

$

$

Not available

38

Husqvarna 588070603

NUT NUT, HEX .38-16 YWZC

$

$

Not available

13

Husqvarna 588070803

PIN PIN, CLEVIS .38 X 1.25 YWZ

$

$

Not available

37

Husqvarna 588071603

SCREW SCREW, SET .31-18 X .38

$

$

Not available

31

Husqvarna 588064727

BOLT RDHDSQNK .38-16 X 3.

$

$

Not available

11

Husqvarna 588070201

LINK LINK, BRAKE ARM HUSQ

$

$

Not available

23

Husqvarna 588067901

ARM CLUTCHING ARM HUSQ

$

$

Not available

12

Husqvarna 588070805

PIN PIN-HAIR, ENDRIES #25 YWZC

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 588064001

BELT BELT, GEAR DRIVE 49" EL C

$136.99

$

Usually ships in 3-10 days

0

19

Husqvarna 588068102

COVER COVER, RH TRACTION BELT

$

$

Not available

32

Husqvarna 588064725

BOLT BOLT RDHDSQNK .38-16 X 1.

$

$

Not available

4

Husqvarna 588066701

BUSH BUSH SLV .391 X .622 X .9

$

$

Not available

2

Husqvarna 588072003

SHIELD SHIELD, FUEL TANK HUSQ

$74.99

$

Usually ships in 3-10 days

0

22

Husqvarna 588071704

SPRING SG-TENS .105 X 1.00 X 5

$11.99

$

Usually ships in 3-10 days

0

34

Husqvarna 588064714

BOLT BOLT HEX .38-16 X 5.00 GR

$

$

Not available

46

Husqvarna 588073207

WASHER WASHER, FL-STL .375 X 1

$

$

Not available

3

Husqvarna 588066801

BUSHING BUSHING FLG 1.010 X 1.

$6.99

$

Usually ships in 3-10 days

0

1

Husqvarna 588063301

FRAME ASSY, FRAME GRWLK W/DECA

$

$

Not available

17

Husqvarna 588071901

SHEAVE SHEAVE,DRIVE 3.25 OD X

$125.99

$

Usually ships in 3-10 days

0

5

Husqvarna 588066702

BUSH BUSH.,S.385 X .610 X 4.32

$11.99

$

Usually ships in 3-10 days

0

7

Husqvarna 588066803

BUSHING BUSHING SLV .375 X .62

$

$

Not available

14

Husqvarna 588070802

PIN PIN, CLEVIS .38 X .75 YWZC

$

$

Not available

24

Husqvarna 588071304

PULLEY PULLEY, FLAT 5.00 X .37

$79.99

$

Usually ships in 3-10 days

0

44

Husqvarna 588073204

WASHER WASHER, FLT .765" X .1.

$

$

Not available

18

Husqvarna 588068101

COVER COVER, LH TRACTION BELT

$

$

Not available

42

Husqvarna 588073214

WASHER WASHER, FL-STL 1.010 X

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 588064711

BOLT BOLT HEX .38-16 X 2.00 GR

$3.49

$

Usually ships in 3-10 days

0

45

Husqvarna 588073211

WASHER WASHER, FL-STL .406 X 1

$3.49

$

Usually ships in 3-10 days

0
