W 436 (967334301) - Husqvarna 36" Walk-Behind Mower (2015-01) FUEL SYSTEM Parts Diagram

36" Walk-Behind Mower

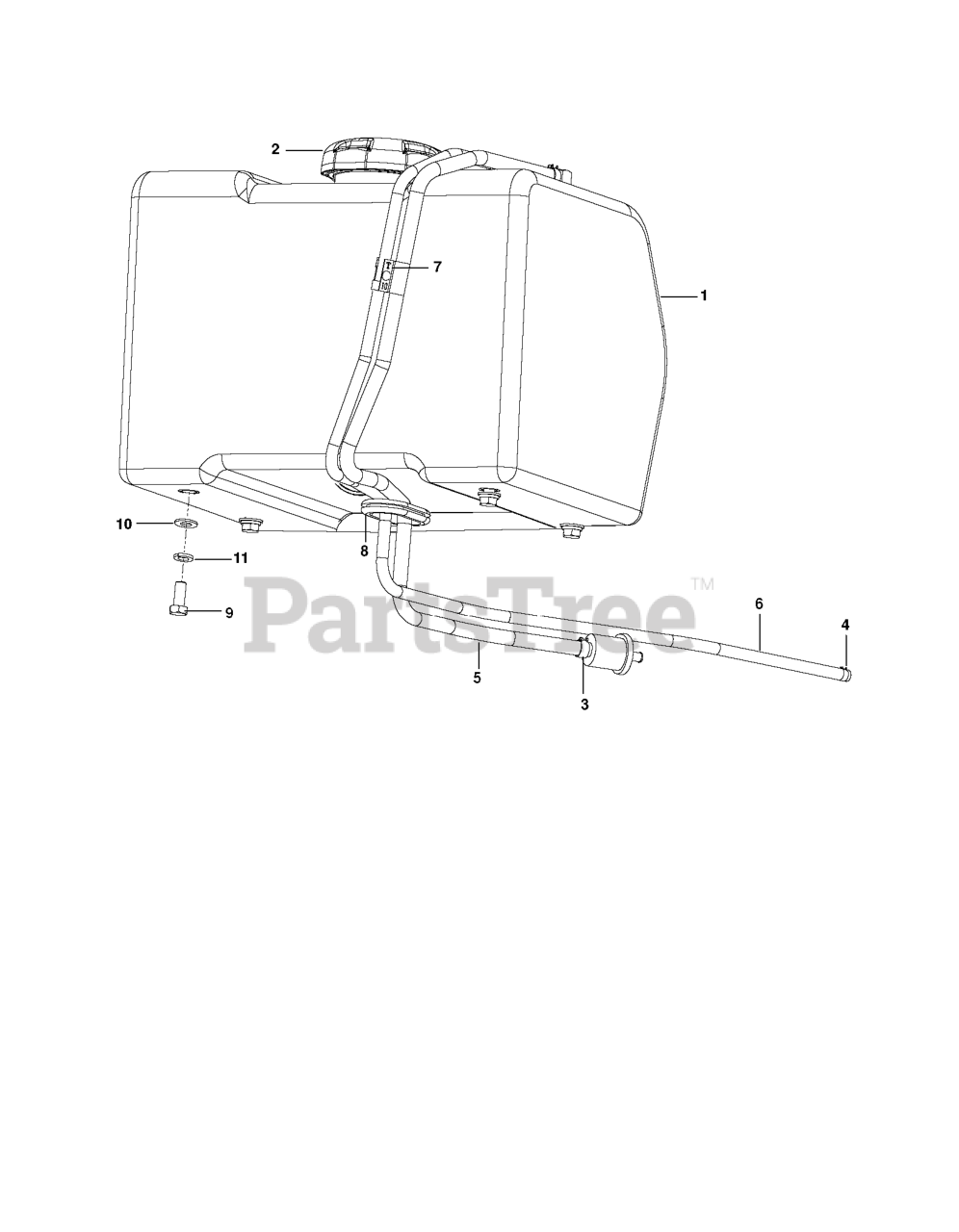

FUEL SYSTEM Parts Diagram

  • Title
4

Husqvarna 588067602

CLAMP CLAMP-HOSE, SPRING .188

$

$

Not available

9

Husqvarna 588064707

BOLT BOLT HEX .38-16 X .75 GR5

$

$

Not available

11

Husqvarna 588073219

WASHER WASHER, LK .38 X .094 R

$

$

Not available

5

Husqvarna 588069401

HOSE HOSE, FUEL 1/4" X 32.75"

$

$

Not available

1

Husqvarna 588072701

TANK TANK, FUEL LOW PERM HUSQ

$569.99

$

Usually ships in 3-10 days

0

2

Husqvarna 588067302

CAP CAP, FUEL NONVENT, AUTOLOC

$79.99

$

Usually ships in 3-10 days

0

6

Husqvarna 588069402

HOSE HOSE, VAPOR 3/16" X 56.00

$

$

Not available

3

Husqvarna 588067601

CLAMP CLAMP, FUEL LINE

$

$

Not available

8

Husqvarna 588068801

GROMMET GROMMET, 2.00"

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 588067701

CLIP CLIP, T, .38-.50

$

$

Not available
