W 3613 ETS (968999117) - Husqvarna 36" Walk-Behind Mower (2001-09) Upper Handle Assembly Parts Diagram

36" Walk-Behind Mower

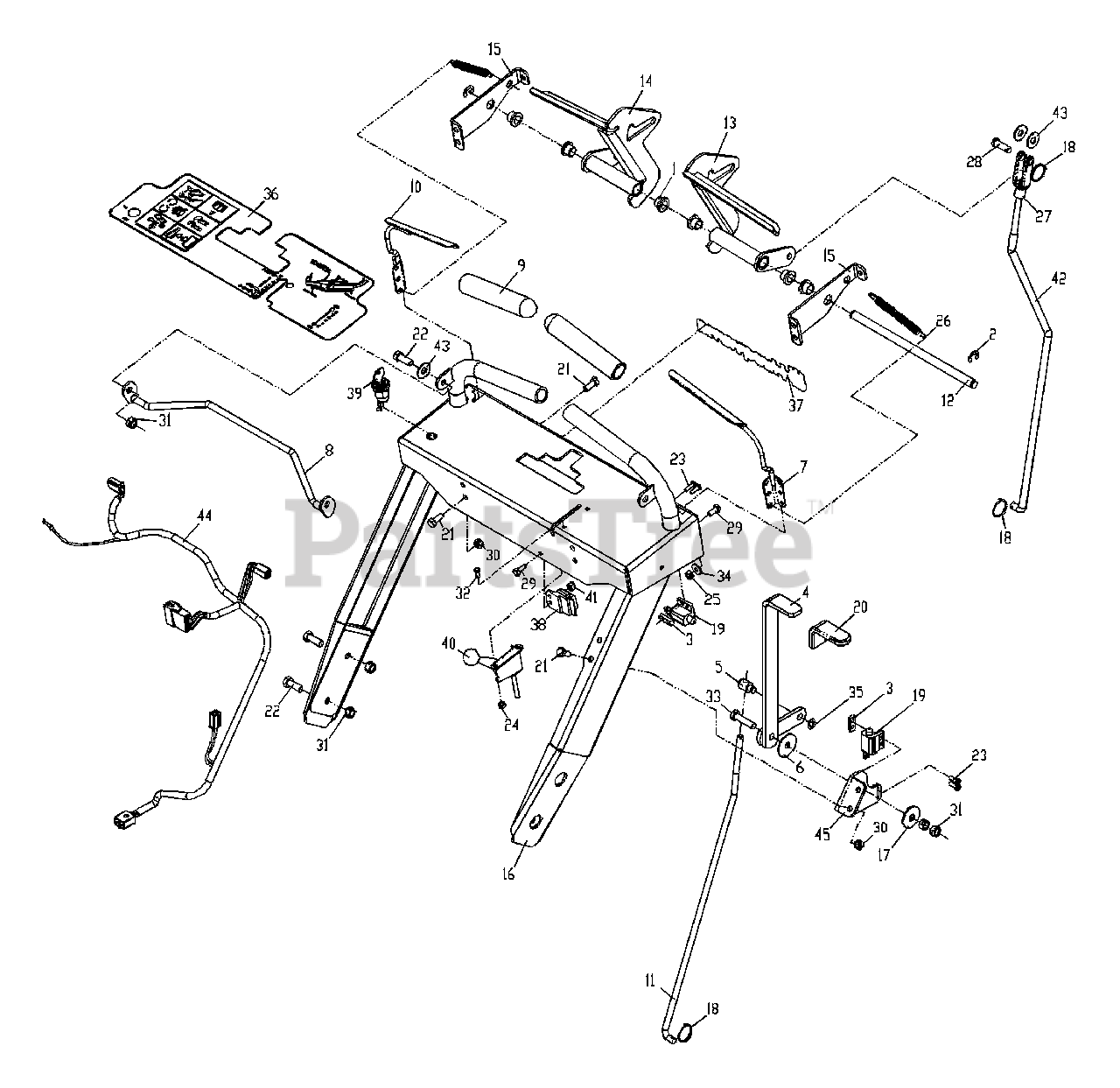

Upper Handle Assembly Parts Diagram

  • Title

1

Husqvarna 539100032

BUSHING, FLANGED NYLON

$

$

Not available

2

Husqvarna 539101949

E-RING 1/2"

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

4

Husqvarna 539106086

ENGAGEMENT LEVER

$34.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539102992

SWIVEL

$23.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102998

WASHER, FRICTION

$8.99

$

In Stock, Qty 8

0

7

Husqvarna 539105834

OP LEVER, LT.

$121.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539105841

NEUTRAL BAIL

$

$

Not available

9

Husqvarna 539105842

GRIP

$

$

Not available

10

Husqvarna 539105952

OP LEVER, RT.

$

$

Not available

11

Husqvarna 539106015

BLADE ENGAGE. LINKAGE

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539106016

CENTER PIVOT SHAFT

$7.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539106017

DRIVE LVR. WLDMT. LT.
(Superseded to 539110591)

$51.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539106018

DRIVE LVR. WLDMT RT.
(Superseded to 539110592)

$51.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539106025

SUPPORT BRACKET

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539106026

HANDLE WLDMT.
(Superseded to 539106601)

$

$

Not available

17

Husqvarna 539912063

WASHER, CONE

$6.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539916459

RETAINER RING

$6.49

$

In Stock, Qty 5

0

19

Husqvarna 539919098

SWITCH

$10.99

$

In Stock, only 1 left!

0

20

Husqvarna 539976526

GRIP

$3.99

$

In Stock, only 3 left!

0

21

Husqvarna 539976934

HCS 5/16 X .750
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 539990563

HCS 3/8 X 1.0

$1.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539976952

SCREW #10 X .625
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

24

Husqvarna 539976977

NUT #10 NYLOC

$

$

Not available

25

Husqvarna 539990761

NUT 1/4 LOCK

$4.99

$

In Stock, only 4 left!

0

26

Husqvarna 539977250

SPRING

$

$

Not available

27

Husqvarna 539977465

YOKE 3/8F

$24.99

$

In Stock, Qty 11

0

28

Husqvarna 539977703

CLEVIS PIN

$5.99

$

In Stock, Qty 11

0

29

Husqvarna 539990072

HCS 1/4 X .625

$3.99

$

In Stock, only 1 left!

0

30

Husqvarna 539990184

NUT 5/16 LOCK

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990546

NUT 3/8 LOCK

$

$

Not available

32

Husqvarna 539990411

# 10 X .500

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990655

HCS 3/8 X 1.5

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

35

Husqvarna 539990870

RET. RING

$6.49

$

In Stock, only 1 left!

0

36

Husqvarna 539106011

DECAL, CONSOLE

$14.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539104787

DECAL, HUSQVARNA

$

$

Not available

38

Husqvarna 539101781

MODULE

$

$

Not available

39

Husqvarna 539911853

KEY SWITCH

$

$

Not available

40

Husqvarna 539101220

THROTTLE CABLE

$

$

Not available

41

Husqvarna 539976978

NUT 1/4 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

42

Husqvarna 539106062

DRIVE LINKAGE

$15.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539106071

UPPER HARNESS

$54.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539106089

BLADE ENGAGE. BRACKET

$6.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539976856

WIRE TIE

$5.99

$

Usually ships in 3-10 days

0
