W 3613 ETS (968999117) - Husqvarna 36" Walk-Behind Mower (2001-09) 36" Deck Assembly Parts Diagram

36" Walk-Behind Mower

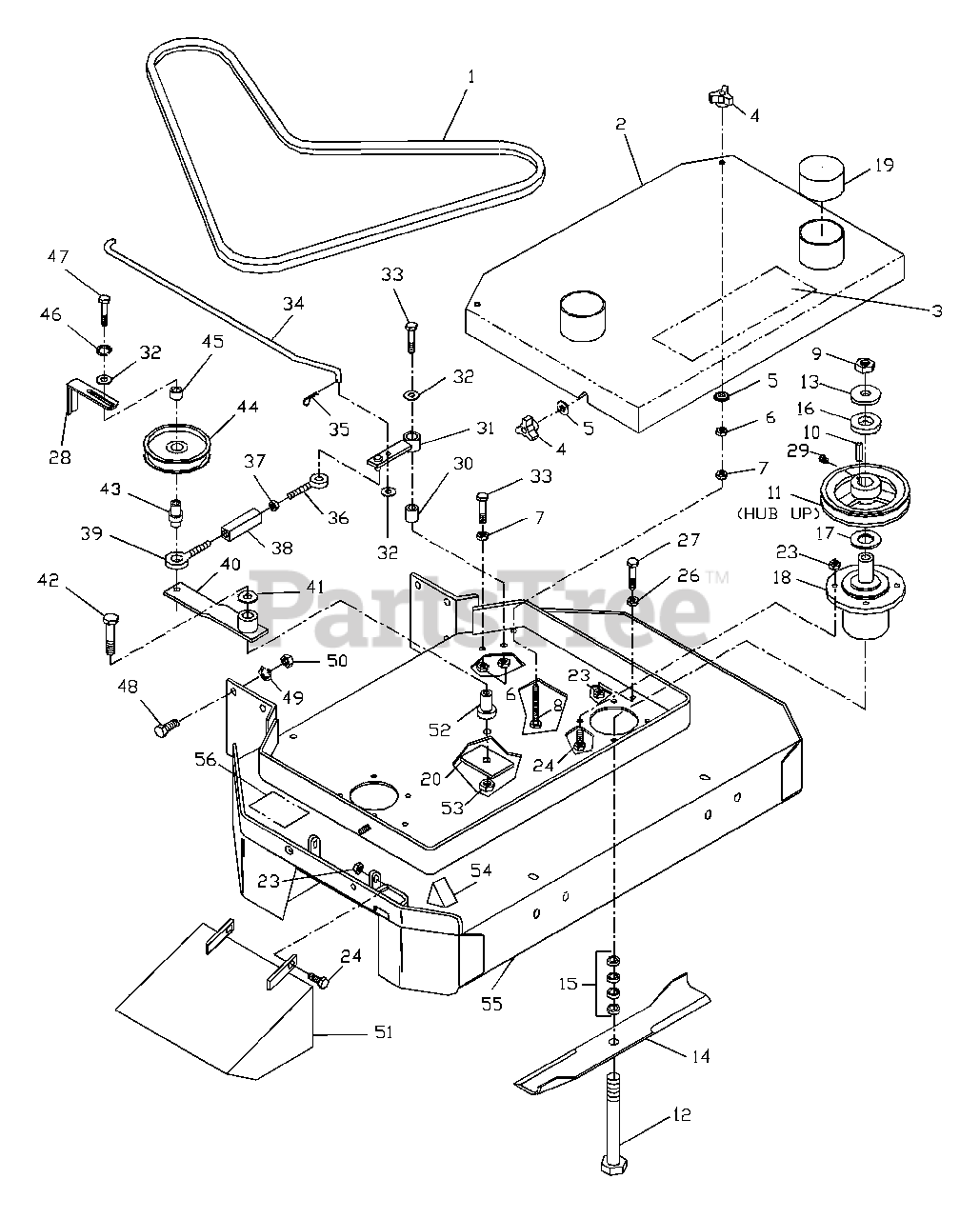

36" Deck Assembly Parts Diagram

  • Title

1

Husqvarna 539101959

36" DECK BELT

$68.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539104561

36" BELT SHIELD

$242.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539104790

DECAL, HUSQVARNA

$

$

Not available

4

Husqvarna 539102070

THREE PRONG KNOB

$7.49

$

In Stock, Qty 9

0

5

Husqvarna 539102056

3/8 SEALING WASHER

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990546

HLN 3/8C

$

$

Not available

7

Husqvarna 539990613

3/8C WHIZ NUT

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539102334

TAP BOLT 3/8C X 4 1/2

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539976980

HN 5/8F

$3.99

$

In Stock, only 3 left!

0

10

Husqvarna 539101995

KEY 1/4 SQ. X 1 1/8

$

$

Not available

11

Husqvarna 539976398

PULLEY W/SET SCREWS

$60.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102332

HCS 5/8F X 8 1/2

$

$

Not available

13

Husqvarna 539102243

SUPPORT WASHER

$

$

Not available

14

Husqvarna 539100341

BLADE 18"(36)

$

$

Not available

15

Husqvarna 539976436

BLADE SPACERS

$3.99

$

In Stock, Qty 16

0

16

Husqvarna 539102245

SPACER

$

$

Not available

17

Husqvarna 539102675

MACH. BUSHING 10GA.

$10.99

$

In Stock, only 3 left!

0

18

Husqvarna 539102440

HOUSING ASM.
(Superseded to 539107418)

$

$

Not available

19

Husqvarna 539102320

TUBE CAP

$7.99

$

In Stock, Qty 9

0

20

Husqvarna 539102236

PAD

$27.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990184

HLN 5/16C

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990585

HFLN 5/16C

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990553

HCS 5/16C X 3

$5.99

$

In Stock, Qty 20+

0

28

Husqvarna 539100075

SNUBBER

$37.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539976956

5/16 NYLOC SETSCREW

$

$

Not available

30

Husqvarna 539101836

SLEEVE BUSHING

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539101979

ENGAGEMENT ARM

$62.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990517

FW 3/8 STD

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539102048

BLADE ROD

$

$

Not available

35

Husqvarna 539976988

#2 HAIR PIN

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539101982

RT. HAND EYE BOLT

$43.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990196

5/16C HEX NUT

$1.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539101983

TURNBUCKLE

$14.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539101981

LT. HAND EYE BOLT

$13.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539101978

ARM WLDMT

$103.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539990550

FW 1/2 STD

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

43

Husqvarna 539101980

EYE BOLT PIVOT

$17.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

45

Husqvarna 539102656

SPACER

$4.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990118

3/8 LOCK WASHER
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

47

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539990247

7/16 LOCK WASHER

$

$

Not available

50

Husqvarna 539990449

7/16C HEX NUT

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539104546

DEFLECTOR CHUTE

$169.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539101331

HLN 1/2C NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

55

Husqvarna 539104563

36" DECK W/DECALS

$

$

Not available

56

Husqvarna 539105746

DECAL, SEVERING

$3.99

$

In Stock, only 3 left!

0

57

Husqvarna 539105071

DECAL, NASCAR

$

$

Not available
