W 32121 (88169) - Snapper 32" Walk-Behind Mower, 12hp Upper Handle, Blade/Variable Speed Linkage Parts Diagram

32" Walk-Behind Mower, 12hp

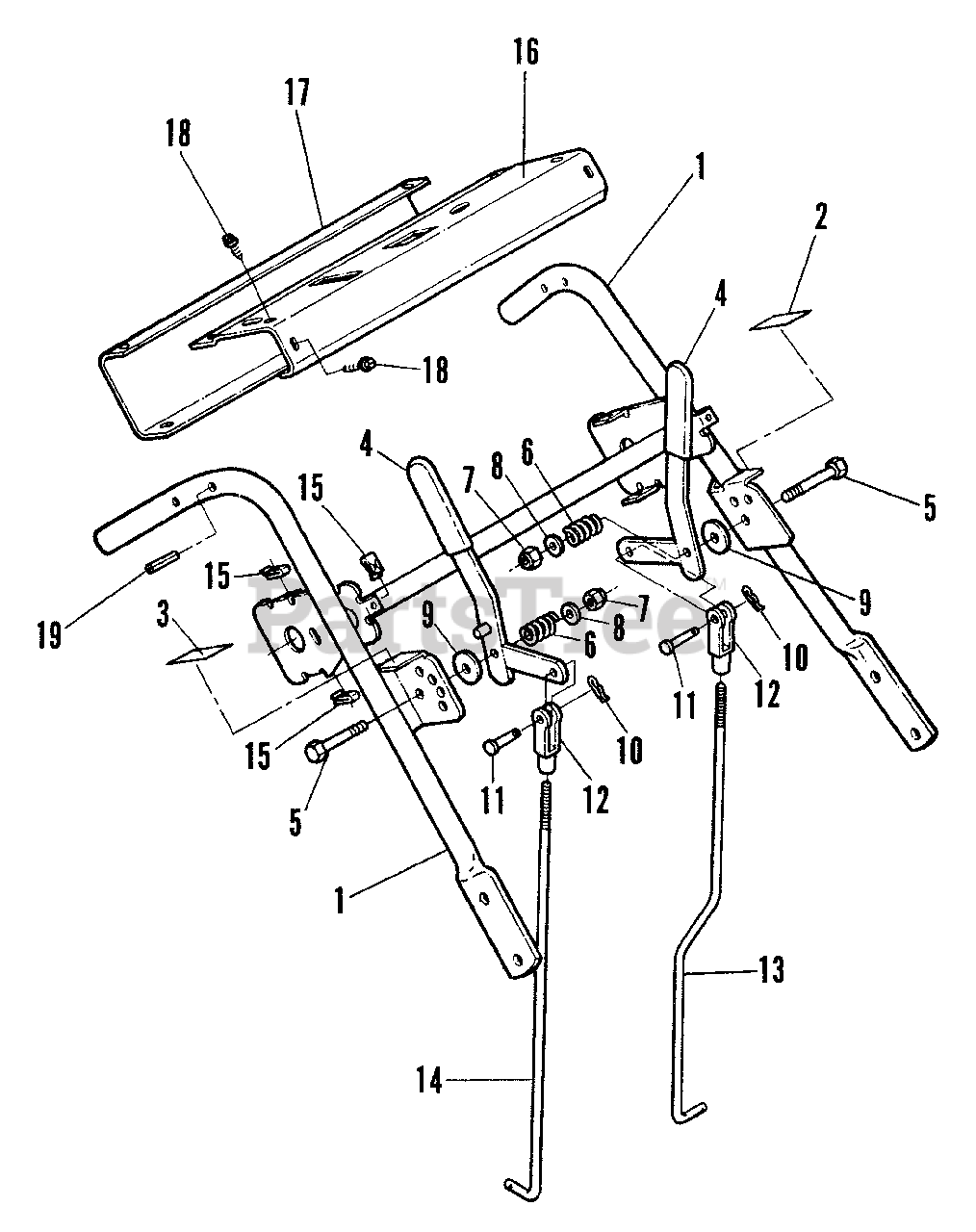

Upper Handle, Blade/Variable Speed Linkage Parts Diagram

  • Title
1

Snapper 7051802

WELDMENT, Upper Handle
(Superseded to 7051802YP)

$311.99

$

Usually ships in 2-12 days

0

2

Snapper 7077912

DECAL, Blade

$

$

Not available

3

Snapper 7077911

DECAL, Ground Speed

$

$

Not available

4

Snapper 7077274

LEVER, Control w/Grip Assembly

$

$

Not available

5

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, Grade 5
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, only 1 left!

0

6

Snapper 7076438

SPRING, Compression

$

$

Not available

7

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7090517

WASHER, 3/8" Standard Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

9

Snapper 7076435

WASHER, Spacer

$

$

Not available

10

Snapper 7076988

HAIRPIN, #2
(Superseded to 7076988YP)

$3.49

$

In Stock, only 2 left!

0

11

Snapper 7073953

PIN, 5/16 Clevis
(Superseded to 7073953YP)

Note: Was 77793

$2.99

$

Usually ships in 2-12 days

0

12

$

$

Not available

13

Snapper 7076519

LINKAGE, Blade

$

$

Not available

14

Snapper 7076534

LINKAGE, Ground Speed

$

$

Not available

15

Snapper 7015098

NUT, #10-24 Clip

$

$

Currently unavailable

16

Snapper 77900

PANEL, Control w/Decals

$

$

Currently unavailable

17

Snapper 77901

COVER, Bottom w/Decal

$

$

Currently unavailable

18

Snapper 7076952

SCREW, #10-24 x 5/8" Pan Head
(Superseded to 7076952YP)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7023313

PIN, 5/16 x 1-1/8" Roll
(Superseded to 7023313YP)

$2.99

$

Usually ships in 2-12 days

0
