W 32121 (88169) - Snapper 32" Walk-Behind Mower, 12hp 32" Mower, Front Deck Parts Diagram

32" Walk-Behind Mower, 12hp

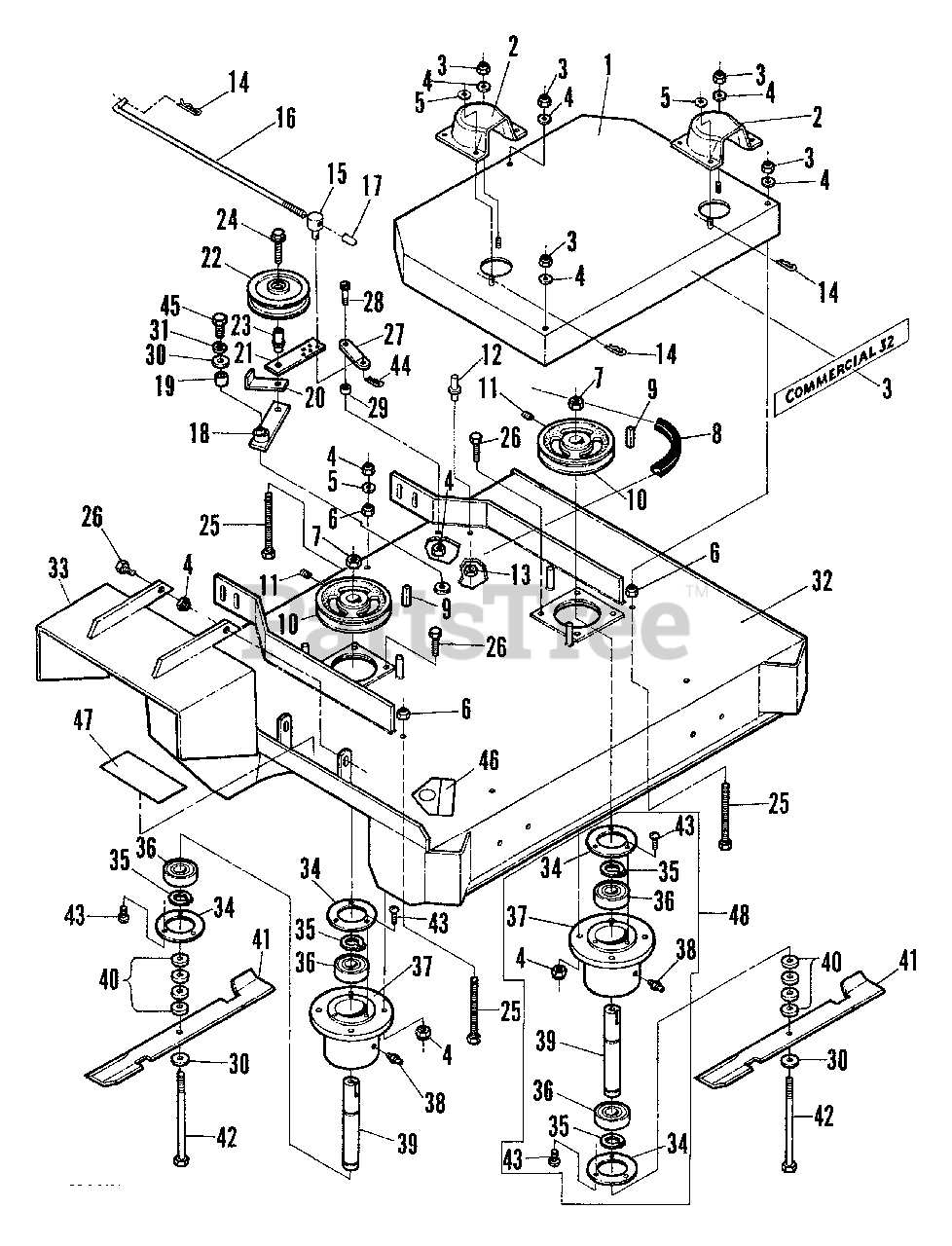

32" Mower, Front Deck Parts Diagram

  • Title
1

Snapper 57571

SHIELD, Belt w/Decal 32

$

$

Currently unavailable

2

Snapper 7076524

COVER, Spindle

$

$

Not available

3

Snapper 7019094

DECAL, Commercial 32

$

$

Currently unavailable

4

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

5

Snapper 7090692

WASHER, 5/16 Standard Flat
(Superseded to 7090692YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

7

Snapper 7076980

NUT, 5/8-18 Hex
(Superseded to 7076980YP)

$3.99

$

In Stock, Qty 7

0

8

Snapper 7076353

BELT, Engine/Blade
(Superseded to 7076353YP)

$59.99

$

Usually ships in 2-12 days

0

9

Snapper 7012757

KEY, 1/4" Square x 1-1/4"
(Superseded to 7012757YP)

$10.99

$

Usually ships in 2-12 days

0

10

Snapper 7076398

PULLEY, w/Set Screws

$

$

Not available

11

Snapper 7076956

SCREW, 5/16-18 x 3/8" Hex Socket Set
(Superseded to 5025061SM)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7014415

STUD, Stop

$

$

Not available

13

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

14

Snapper 7076988

HAIRPIN, #2 Cotter
(Superseded to 7076988YP)

$3.49

$

In Stock, only 2 left!

0

15

Snapper 7077921

SWIVEL
(Superseded to 7077921YP)

$12.99

$

Usually ships in 2-12 days

0

16

Snapper 7077941

ROD, Blade Drive

$

$

Not available

$

$

Not available

18

Snapper 7076386

ARM, Idler w/Bushing

$

$

Not available

19

Snapper 7076452

BUSHING

$

$

Not available

20

Snapper 7076681

SNUBBER, Belt

$

$

Not available

21

Snapper 7076686

ARM, Tightening

$

$

Not available

22

Snapper 7076688

PULLEY, Idler

$

$

Not available

23

Snapper 7076694

BUSHING, Flange

$

$

Not available

24

Snapper 7091580

BOLT, 3/8-16 x 1-1/4" Hex Flange Lock, Grade 5
(Superseded to 703812)

Note: Was 90701

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7076969

SCREW, 5/16-18 x 3-1/4" Hex Head Cap

$

$

Not available

26

Snapper 7090209

SCREW, 5/16-18 x 1" Hex Head Cap, Grade 2
(Superseded to 7090209YP)

$2.99

$

Usually ships in 2-12 days

0

27

Snapper 7076687

ARM, Blade Assist

$

$

Currently unavailable

28

Snapper 7077001

BOLT, 3/8 x 3/4" Knurled Socket Head

$

$

Not available

29

$

$

Not available

30

Snapper 7076982

WASHER, 5/8" Flat
(Superseded to 1960020SM)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7090333

WASHER, 5/8" Split Lock
(Superseded to 7090333YP)

$3.99

$

In Stock, only 1 left!

0

32

Snapper 7057574

DECK, Front 32 w/Decals
(Superseded to 7057574YP)

$769.99

$

Usually ships in 2-12 days

0

33

Snapper 7076382

DEFLECTOR, Chute

$

$

Currently unavailable

34

Snapper 7076419

CAP, Cutter Housing

$4.49

$

Usually ships in 2-12 days

0

35

Snapper 7012833

RING, Snap

Note: Was 76511

$3.99

$

In Stock, only 2 left!

0

36

Snapper 7019125

BEARING
(Superseded to 7019125YP)

Note: Was 76510

$30.99

$

Usually ships in 2-12 days

0

37

Snapper 7052000

HOUSING, Cutter

Note: Was 77304

$

$

Not available

38

Snapper 7076997

FITTING, 1/8 NPT Grease

$

$

Currently unavailable

39

Snapper 7023418

SPINDLE, Cutter
(Superseded to 7023418YP)

Note: Was 77305

$39.99

$

Usually ships in 2-12 days

0

40

Snapper 7076436

SPACER, Blade
(Superseded to 7076436YP)

$7.49

$

In Stock, only 4 left!

0

41

Snapper 7017036

BLADE, 16-1/4" Ultra High Lift (.164)

$

$

Not available

Snapper 7017036

BLADE, 16-1/4" (.250" Ultra High Lift)

Note: Was 77378 (Optional)

$

$

Not available

42

Snapper 7076946

SCREW, 5/8-18 x 7-1/2" Hex Head Cap, Grade 5

$

$

Not available

43

Snapper 7076951

SCREW, #10-24 x 3/8" Pan Head

$

$

Not available

44

Snapper 7076989

HAIRPIN, #4 Cotter

$

$

Not available

45

Snapper 7090767

SCREW, 5/8-11 x 1" Hex Head Cap, Grade 5

$

$

Not available

46

Snapper 7013010

DECAL, CPSC
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 10

0

47

Snapper 7076533

DECAL, "Caution"

$

$

Not available

48

Snapper 7076379

ASSEMBLY, Cutter Housing

$

$

Not available
