W 32120K - Snapper 32" Walk-Behind Mower, 12hp Worm Gear Reduction Box Assembly P/N 76380 Parts Diagram

32" Walk-Behind Mower, 12hp

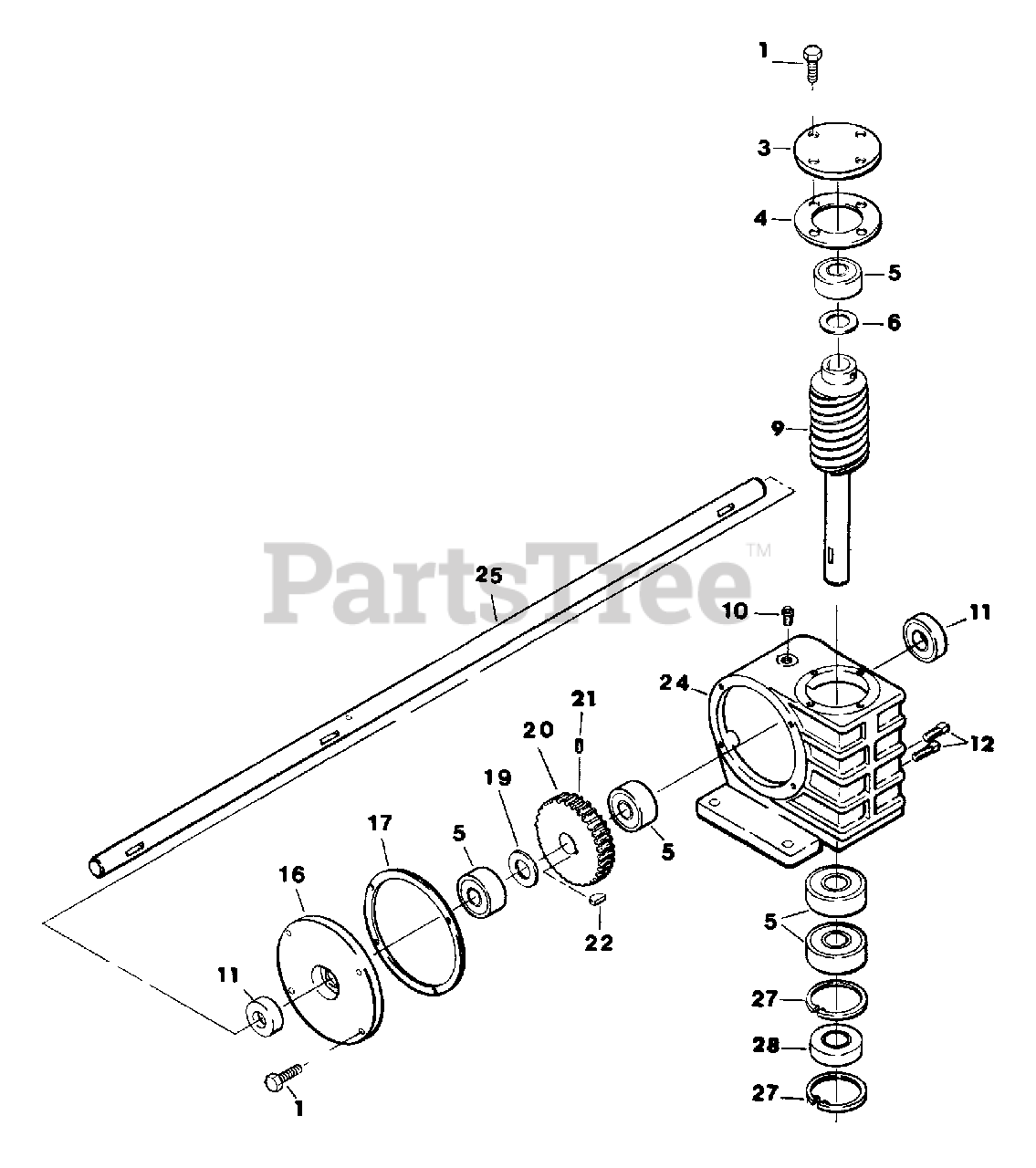

Worm Gear Reduction Box Assembly P/N 76380 Parts Diagram

  • Title
1

Snapper 7090072

1/4"-20X5/8" Hex Hd. Cap Screw
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

3

Snapper 7077322

Input Cover w/Brg (P/N 77324)

$

$

Not available

4

Snapper 7077323

Input Gasket

$6.99

$

Usually ships in 2-12 days

0

5

Snapper 7014514

Bearing
(Superseded to 7014514YP)

Note: Was 77324

$50.99

$

Usually ships in 2-12 days

0

6

Snapper 7077325

Shims 5/8"x7/8"x.010

$

$

Not available

9

Snapper 7057538

Worm Gear Assy
(Superseded to 7057538YP)

Note: Was 77275

$148.99

$

Usually ships in 2-12 days

0

10

Snapper 7077326

Vent Plug

$

$

Not available

11

Snapper 7077327

Seal, Output

$26.99

$

Usually ships in 2-12 days

0

12

Snapper 7077684

Pipe Plug 1/8"-27

$

$

Not available

16

Snapper 7077328

Output Cover w/Brg (P/N 77324)

$

$

Currently unavailable

17

Snapper 7077329

Output Gasket

$5.49

$

Usually ships in 2-12 days

0

19

Snapper 7077330

Shims 5/8"x7/8"x.005

$2.99

$

Usually ships in 2-12 days

0

20

$

$

Not available

21

Snapper 7077680

1/4"-20x3/8" Set Screw

$

$

Not available

22

Snapper 7010614

#5/405 Woodruff Key
(Superseded to 7010614YP)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7077332

Gear Case

$

$

Currently unavailable

25

Snapper 7077333

Output Shaft

$

$

Not available

27

Snapper 7077335

Snap Ring

$

$

Not available

28

Snapper 7077336

Seal, Input

$

$

Not available

Snapper 7076380

Worm Gear Reduction Box Assembly

$

$

Not available
