W 301023BVE (84882) - Snapper 30" Rear-Engine Riding Mower, 10hp Main Case & L.H. Fender Parts Diagram

30" Rear-Engine Riding Mower, 10hp

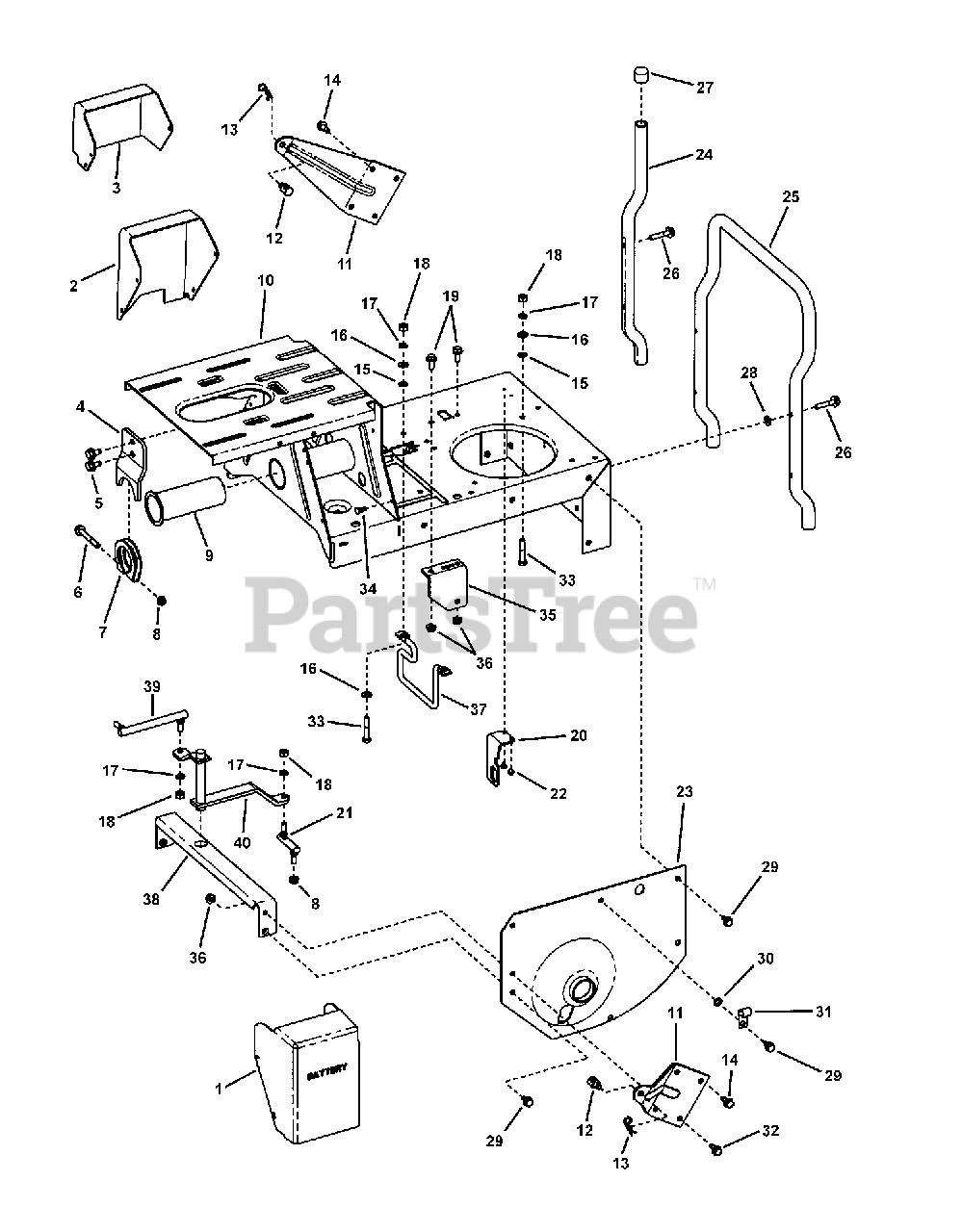

Main Case & L.H. Fender Parts Diagram

  • Title

1

Snapper 7028990

COVER, Battery
(Superseded to 7028990YP)

$34.99

$

In Stock, only 1 left!

0

2

Snapper 7028989

COVER, Switch
(Superseded to 7073268YP)

$20.99

$

In Stock, only 2 left!

0

3

Snapper 7073268

COVER, Solenoid
(Superseded to 7073268YP)

$20.99

$

In Stock, only 2 left!

0

4

Snapper 7074210

BRACKET, Belt Adjuster
(Superseded to 7074210YP)

$16.99

$

Usually ships in 2-12 days

0

5

Snapper 7091198

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap
(Superseded to 7091198SM)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7090358

SCREW, 5/16-24 x 2-1/2" Hex Head Cap, GR 8
(Superseded to 7090358YP)

$4.49

$

In Stock, only 1 left!

0

7

Snapper 7031100

TUBE CLAMP
(Superseded to 7031100YP)

$10.99

$

Usually ships in 2-12 days

0

8

Snapper 7010969

NUT, 5/16-24 Flange Lock (Large)
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 7074650

BUSHING, Pivot
(Superseded to 7074650YP)

$12.99

$

In Stock, only 3 left!

0

10

Snapper 7053697

WELDMENT, Main Case (Standard)
(Superseded to 7053697YP)

$283.99

$

Usually ships in 2-12 days

0

11

Snapper 7034299

WING, Rear
(Superseded to 7034299YP)

$20.99

$

Usually ships in 2-12 days

0

12

Snapper 7028200

SWIVEL, Adjustable
(Superseded to 7028200SM)

$13.99

$

In Stock, only 2 left!

0

13

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7090793

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 7090793YP)

$3.49

$

In Stock, only 3 left!

0

15

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7090188

WASHER, 34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

17

Snapper 7091315

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7091297

NUT, 5/16-24 Hex, GR 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock, GR 5
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

20

Snapper 7073735

BRACKET, Switch
(Superseded to 7073735YP)

$12.99

$

Usually ships in 2-12 days

0

21

Snapper 7011018

SHIFT LINK, Short (5/16-24 thread)
(Superseded to 7011018YP)

$18.99

$

In Stock, Qty 16

0

22

Snapper 7090981

SCREW, #10-32 x 1/4" Hex Washer Self-Tap
(Superseded to 704061)

$3.99

$

In Stock, Qty 16

0

23

Snapper 7037285

FENDER, Left Hand (1.628" I. D. Hole)
(Superseded to 7301302YP)

$0.00

$

Usually ships in 2-12 days

0

24

Snapper 7030798

BUMPER, Rear
(Superseded to 7030798BMYP)

$32.99

$

Usually ships in 2-12 days

0

25

Snapper 7036367

BUMPER (1-Piece)
(Superseded to 7036367BMYP)

$158.99

$

In Stock, only 1 left!

0

26

Snapper 7091506

SCREW, 5/16-18 x 1-1/2" Hex Washer Self-Tap
(Superseded to 704318)

$4.49

$

In Stock, only 4 left!

0

27

Snapper 7010153

CAP, Bumper
(Superseded to 7010153YP)

$4.49

$

In Stock, only 3 left!

0

28

Snapper 7090188

WASHER, 34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

29

Snapper 7091867

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 7091867YP)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7012652

CLIP, Wire
(Superseded to 7012652YP)

$3.99

$

Usually ships in 2-12 days

0

32

Snapper 7090206

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5
(Superseded to 195079GS)

$23.99

$

Usually ships in 2-12 days

0

33

Snapper 7091513

SCREW, 5/16-24 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 7091513YP)

$4.49

$

In Stock, Qty 13

0

34

Snapper 7091272

FASTENER, 1/4" Ratchet
(Superseded to 7091272YP)

$3.99

$

In Stock, Qty 13

0

35

Snapper 7047189

BRACKET, Drive Support
(Superseded to 7047189BMYP)

$12.99

$

Usually ships in 2-12 days

0

36

Snapper 7090585

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

37

Snapper 7017653

BELT GUIDE
(Superseded to 7105172BMYP)

$11.99

$

Usually ships in 2-12 days

0

38

Snapper 7033799

CROSS BRACE
(Superseded to 7033799YP)

$15.99

$

Usually ships in 2-12 days

0

39

Snapper 7023676

SHIFT LINK, Long (5/16-24 both ends)
(Superseded to 7023676YP)

$34.99

$

In Stock, only 3 left!

0

40

Snapper 7041384

WELDMENT, Shift Arm
(Superseded to 7041384YP)

$51.99

$

Usually ships in 2-12 days

0
