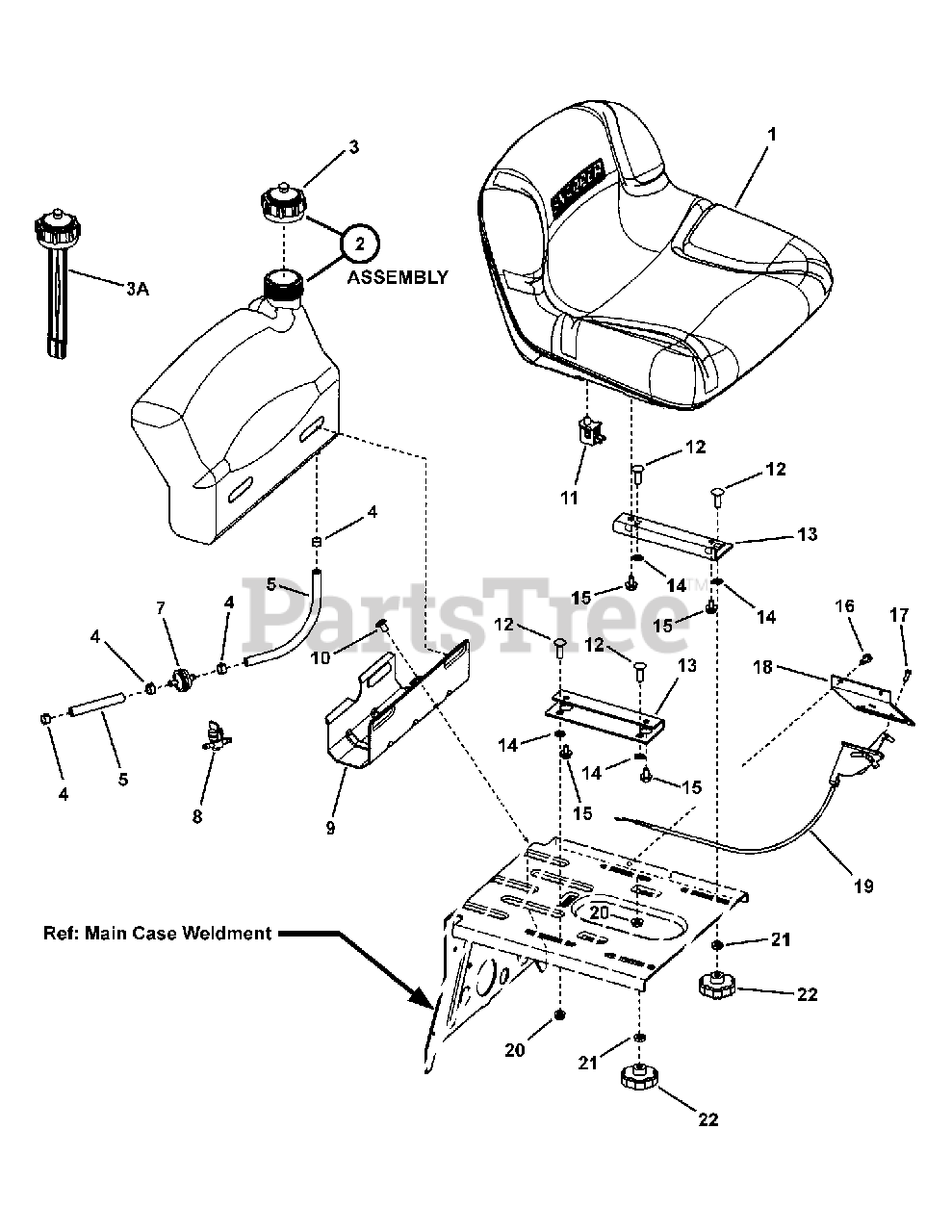

W 301023BVE (84882) - Snapper 30" Rear-Engine Riding Mower, 10hp Fuel Tank & Seat Parts Diagram

30" Rear-Engine Riding Mower, 10hp

Fuel Tank & Seat Parts Diagram

  • Title

1

Snapper 7075071

SEAT, Operator (11.58" tall) (shown) (Michigan V-2400 Series)
(Superseded to 7600194YP)

$262.99

$

Usually ships in 2-12 days

0

1

Snapper 7075376

SEAT, Operator (9.30" tall) (Michigan V-2300 Series)
(Superseded to 7600194YP)

$262.99

$

Usually ships in 2-12 days

0

2

Snapper 7051905

ASSEMBLY, Fuel Tank (Includes item 3)
(Superseded to 7051905YP)

$201.99

$

In Stock, only 2 left!

0

2

Snapper 7052435

ASSEMBLY, Fuel Tank with Gauge (Includes item 3A)
(Superseded to 7052435YP)

$234.99

$

Usually ships in 2-12 days

0

3

Snapper 7012515

CAP, Fuel Tank
(Superseded to 7012515YP)

$19.99

$

In Stock, only 3 left!

0

3A

Snapper 7019377

CAP, Fuel Tank w/Gauge
(Superseded to 7019377YP)

$34.99

$

Usually ships in 2-12 days

0

4

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 1734994

HOSE, Fuel (1/4" I.D. x 8-1/2" long)
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

7

Snapper 7014359

FILTER, Fuel (In-Line)
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

8

Snapper 7024507

VALVE, Fuel Shut-Off (Accessory)
(Superseded to 7034212YP)

$31.99

$

In Stock, only 1 left!

0

9

Snapper 7033377

BRACKET, Fuel Tank (Rear)
(Superseded to 7033377BMYP)

$

$

Not available

10

Snapper 7091542

SCREW, 5/16-18 x 1/2" Pan Head Self-Tap (Torx #T-40)
(Superseded to 703932)

$4.99

$

Usually ships in 2-12 days

0

11

Snapper 7023354

SWITCH, Seat (NC)
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

12

Snapper 7091303

BOLT, 5/16-18 x 1" Square Neck Carriage, GR 5 YZ
(Superseded to 703800)

Note: was 7091714

$3.99

$

In Stock, Qty 7

0

13

Snapper 7075018

BRACKET, Seat
(Superseded to 7075018BMYP)

$15.99

$

Usually ships in 2-12 days

0

14

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7091038

BOLT, 5/16-18 x 1/2" Hex Flange Nyloc
(Superseded to 7091038YP)

$4.49

$

In Stock, Qty 9

0

16

Snapper 7090539

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

17

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 9

0

18

Snapper 7033470

PLATE, Throttle Control
(Superseded to 7033470YP)

$26.99

$

Usually ships in 2-12 days

0

19

Snapper 7022751

CONTROL, Throttle (23.6" long) (Briggs Engines)
(Superseded to 7022751YP)

$26.99

$

In Stock, only 1 left!

0

20

Snapper 7090951

NUT, 5/16-18 Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

21

Snapper 7013849

SPACER, .33 x .63 x .156
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 7023735

KNOB, Fluted, 5/16-18 internal thread (2.15 O.D.)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0
